Passiivinen pidike Brodit 711056 kämmentietokone musta

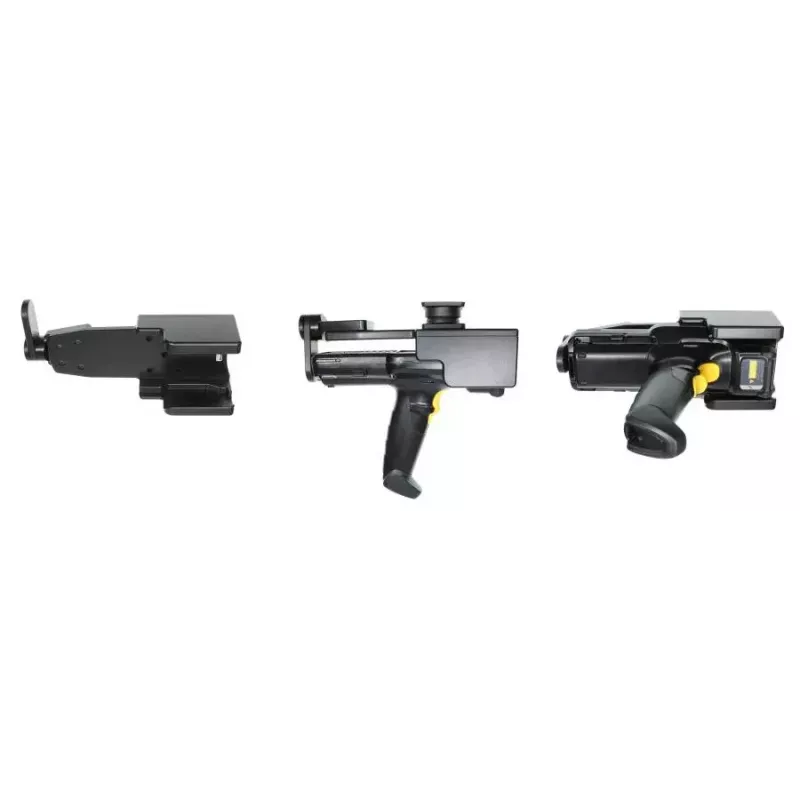

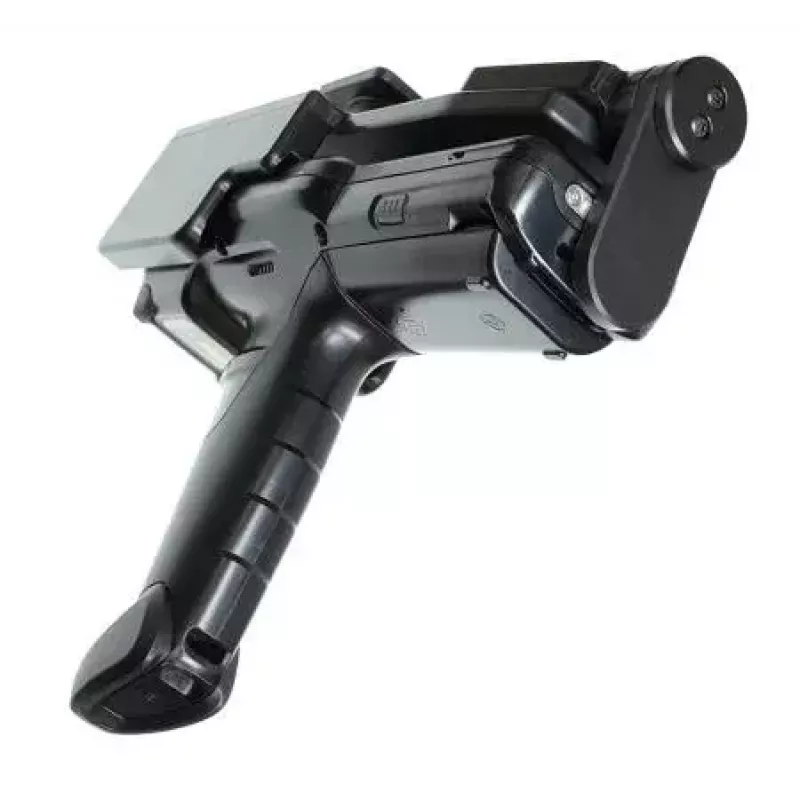

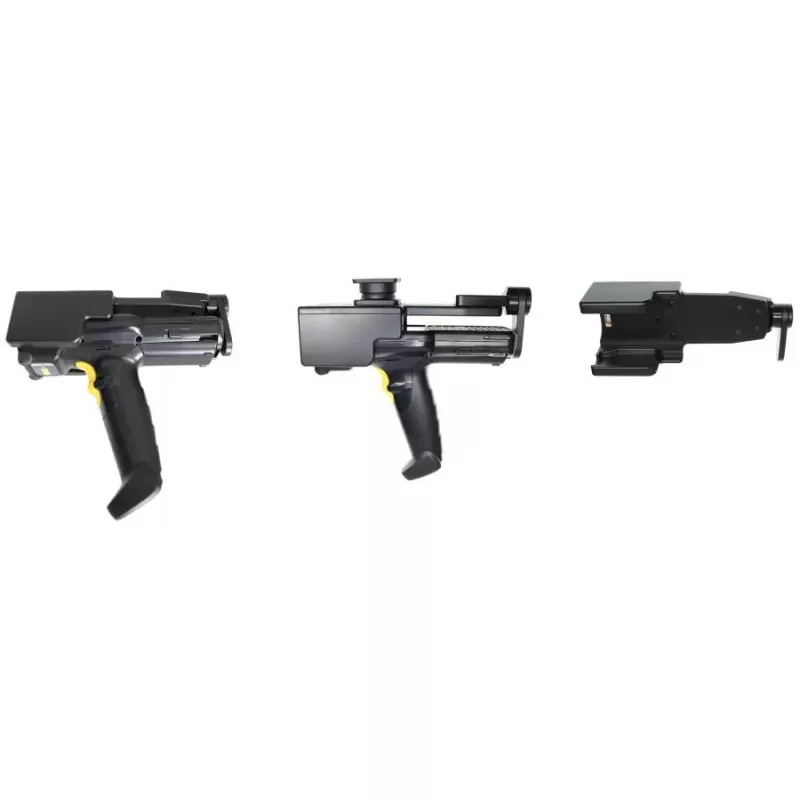

Custom designed passive holder for handheld mobile computers with pistol grip. The Brodit 711056 secures the device with the display facing the holder and allows easy insertion and removal when using the pistol grip. It features a robust construction in black ABS/Acetal plastic and is made in Sweden. The mounting plate measures 42 x 50 mm with AMPS holes, and the top section tilts 17° and swivels 360° for flexible positioning. Intended for everyday professional use in demanding environments.

Advantages

The holder provides a precise fit for all Zebra MC3300 variants with pistol grip and holds the device firmly while keeping the display accessible. Its strong, durable materials and compact design deliver reliable protection and convenient access without electronic components. The tilt and swivel mechanism offers flexible angle adjustment and the AMPS-compatible mounting plate supports a wide range of installations.

Suitable for

• Mounting Zebra MC3300 handheld computers with pistol grip in vehicles or on workstations
• Use in warehouses, logistics, retail and field-service environments
• Situations requiring frequent insertion and removal using the pistol grip

Key specifications

• Model: Brodit 711056
• Compatibility: All Zebra MC3300 versions with pistol grip
• Material: Black ABS/Acetal plastic
• Tilt: 17°; Swivel: 360°
• Mounting plate: 42 x 50 mm with AMPS-holes
• Type: Passive holder (no electronics)
• Origin: Made in Sweden

How to use

Attach the holder to a compatible pedestal mount or mounting surface using the 42 x 50 mm AMPS-pattern plate. Place the Zebra MC3300 into the holder with the display facing the holder and insert the pistol grip until the device seats firmly. Adjust the tilt (17°) and swivel (360°) to the desired viewing angle. Remove the device by pulling it out using the pistol grip.

Recommendations

For secure long-term installation, ensure mounting screws are tightened to the vehicle or workstation manufacturer’s recommendations and verify that the AMPS plate aligns with the chosen pedestal mount. Periodically check the holder for wear and confirm the tilt/swivel mechanism operates smoothly.
