Passiivinen teline Brodit 215838 kannettava tietokone matkapuhelin älypuhelin tabletti UMPC musta

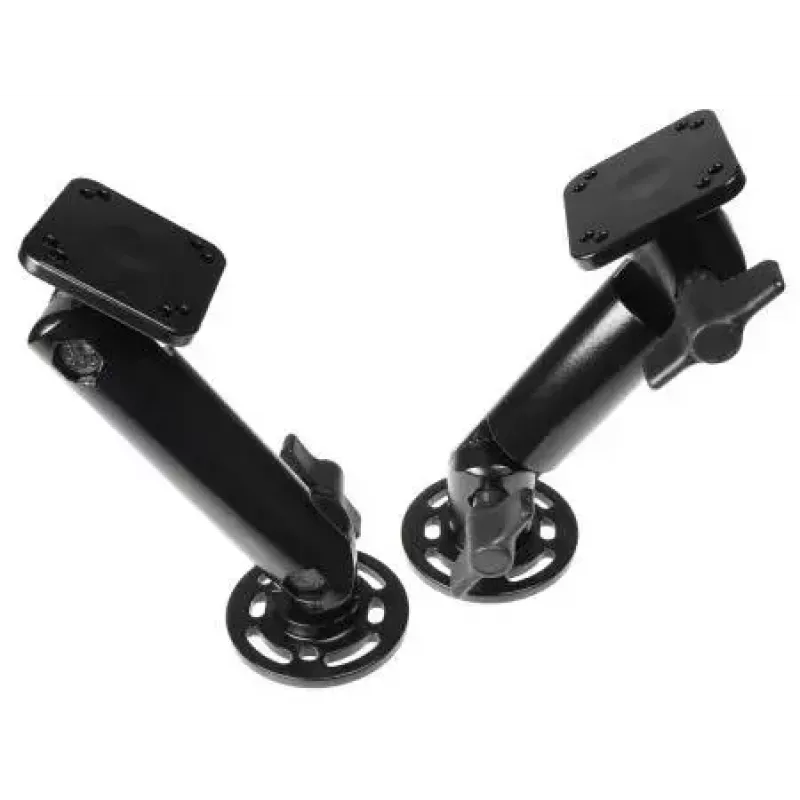

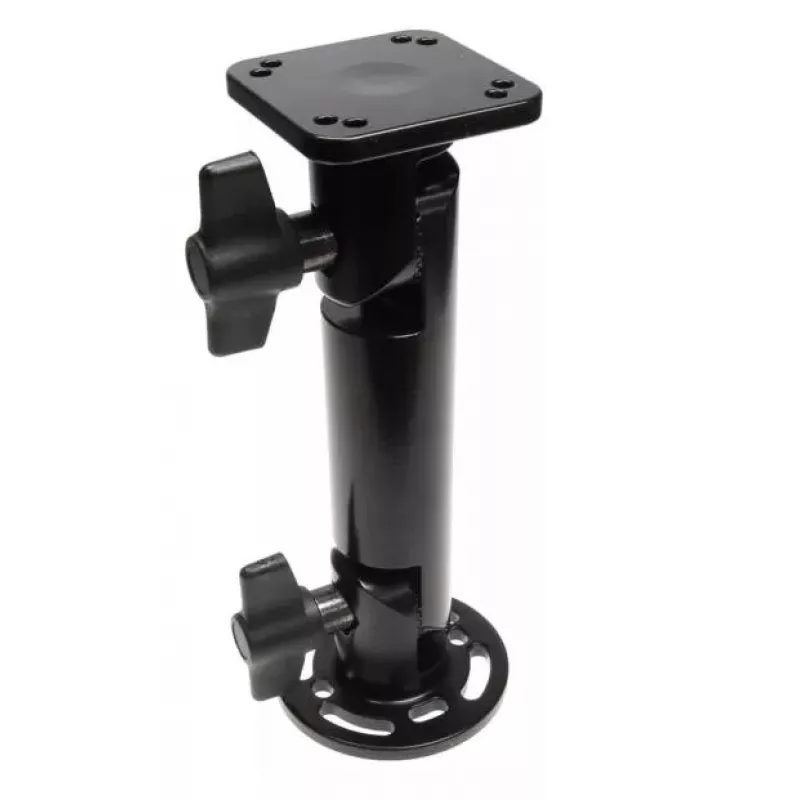

Pedestal mount 6" with small teeth, total length 164 mm, round base and square mounting plate 50x50 mm in black. The mount is compatible with passive holders and can be combined with loose parts to create custom setups for mobile computers, smartphones and tablets. The round base (Ø 64 mm) has multiple holes for radial adjustment, while the square top includes two sets of AMPS holes for secure attachment.

Advantages

The pedestal mount allows stepped angular adjustment in 11.25° increments up to 180° (16 positions) for precise positioning. Each interlocking joint includes a wingnut for quick and easy angle changes without tools. Its compact 164 mm length and standardized 50x50 mm top plate make it suitable for a wide range of passive holders and screw-mount accessories.

Suitable for

• Mounting passive holders for mobile computers
• Holding smartphones and mobile phones indoors
• Securing tablets and UMPCs with AMPS-compatible plates
• Custom mounting solutions when combined with loose parts

Key specifications

• Total length: 164 mm
• Base diameter: 64 mm
• Top mounting plate: 50 x 50 mm, square, with two sets of AMPS holes
• Angular adjustment: steps of 11.25° up to 180° (16 positions)
• Color: Black

How to use

Fix the round base to a suitable surface using the radial holes, attach a compatible passive holder or accessory to the 50x50 mm top plate using the AMPS holes, and set the required angle by loosening the wingnut at the interlocking joint, moving the mount to the desired stepped position and re-tightening the wingnut to secure it.

Recommendations

For indoor applications, use appropriate screws for the mounting surface and verify compatibility of the passive holder or device with the AMPS hole pattern. Adjust angles incrementally and tighten wingnuts firmly to maintain stable positioning.
