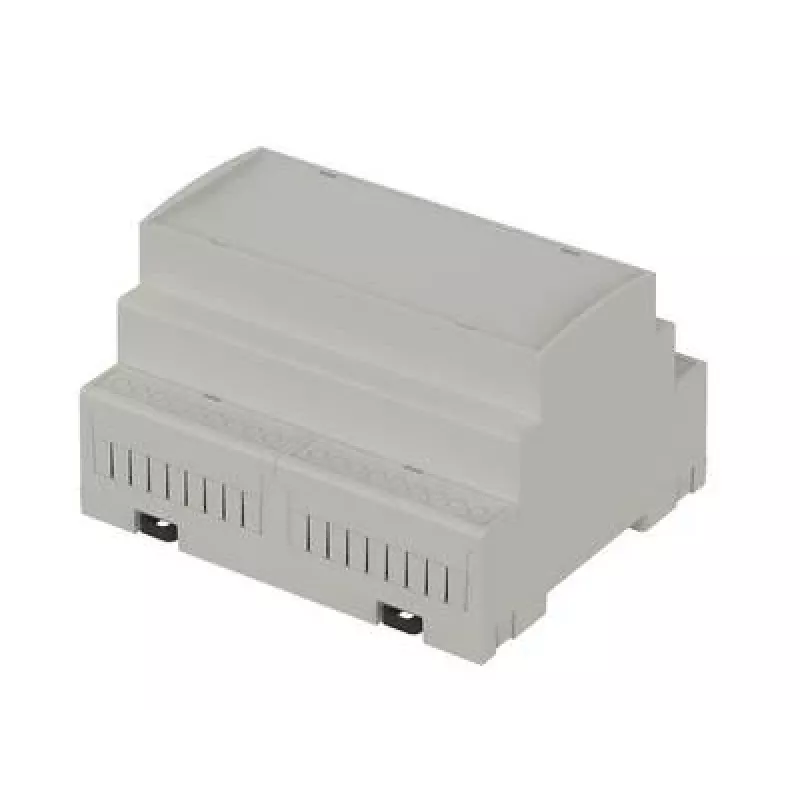

Bopla CombiNorm-Control CNC 105.0 SET DIN-kiskokotelo 107 x 90 x 65,3 mm ABS vaaleanharmaa (RAL 7035) 65610105.S1

The Bopla CombiNorm-Control CNC 105.0 SET stands out as a modular DIN rail enclosure designed for industrial control and automation applications. Its ABS construction in light grey (RAL 7035) offers a balance of durability and electrical insulation, making it suitable for housing electronic devices in demanding environments.

Highlights

• DIN rail mountable (TS35 / EN 60715) for quick installation in control cabinets
• Compact dimensions: 107 mm length, 90 mm width, 65.3 mm height
• Accommodates up to 5 modules of 18 mm width
• Solid lid provides protection for internal components
• Halogen-free and RoHS compliant

In daily use

The enclosure's ABS material ensures impact resistance while remaining lightweight. Its light grey colour blends seamlessly into standard industrial settings. The DIN rail mounting simplifies integration into existing systems, and the solid lid allows easy access for maintenance.

Full specifications

• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light Grey (RAL 7035)
• External dimensions: 107 x 90 x 65.3 mm
• Mounting type: DIN Rail (TS35 / EN 60715)
• Protection class: IP40
• Flammability rating: UL 94 V-0
• Operating temperature range: -20 to +80 °C
• Number of modules (18mm): 5
• Lid type: Solid
• Halogen-free: Yes
• RoHS compliant: Yes

Final note

This enclosure is a reliable choice for housing industrial electronics, offering a proven combination of form and function.
