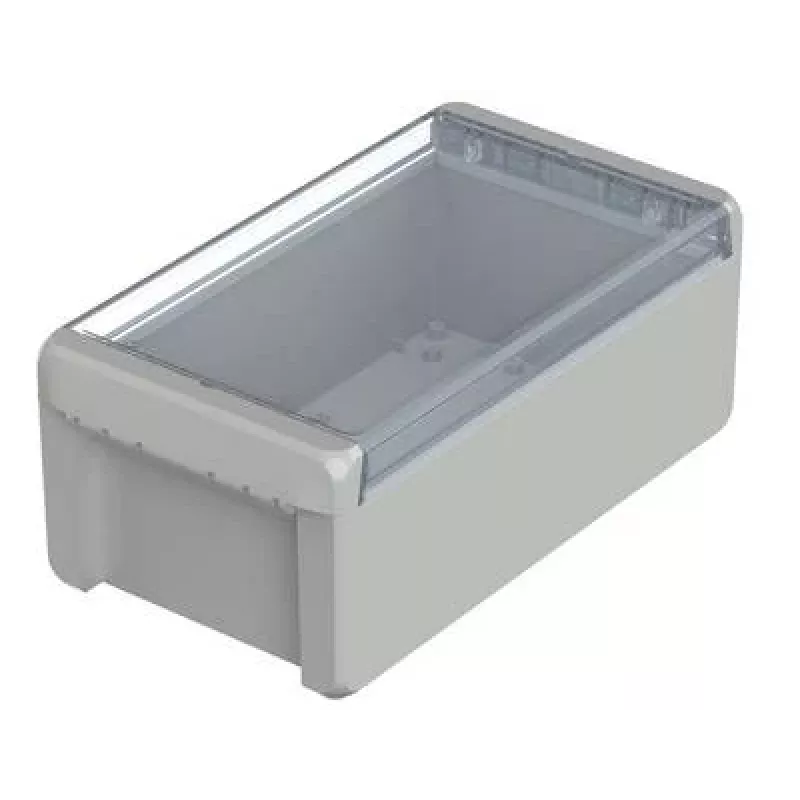

BOPLA EUROMAS II seinäkotelo, polykarbonaatti, vaaleanharmaa (RAL 7035), 231 x 125 x 90 mm, IP65, IK07 96025235

This BOPLA EUROMAS II enclosure stands out with its recessed lid, which accepts membrane keypads and front plates for a flush, professional finish. The polycarbonate body is light grey (RAL 7035), UV-resistant, and halogen-free, making it suitable for demanding indoor and outdoor installations.

Highlights

• Robust polycarbonate construction with IK07 impact resistance
• IP65 protection against dust and water jets
• Recessed lid for membrane keypads or front plates
• Four stainless steel (V2A) lid screws for secure closure
• Internal mounting bosses for PCBs or mounting plates
• Wide operating temperature range: -40 °C to +80 °C

In daily use

The enclosure is designed for wall mounting and provides a clean, modern appearance. Its light grey colour blends well in industrial and commercial settings. The recessed lid area allows for custom labelling or control interfaces, while the internal bosses simplify component installation.

Full specifications

• Series: EUROMAS II
• Material: Polycarbonate (PC)
• Colour: Light Grey (RAL 7035)
• External dimensions: 231 mm (L) x 125 mm (W) x 90 mm (H)
• Protection class: IP65
• Impact resistance: IK07
• Flammability rating: UL 94 V-2
• Operating temperature: -40 °C to +80 °C
• Mounting type: Wall mount
• Lid fastening: 4x stainless steel screws (V2A)
• Internal mounting: Mounting bosses for PCBs/plates
• UV resistance: Yes
• Halogen-free: Yes

Final note

A reliable enclosure for electronics that require protection from environmental factors while maintaining easy access and customization.
