Sähkörasia Satel OMI-5

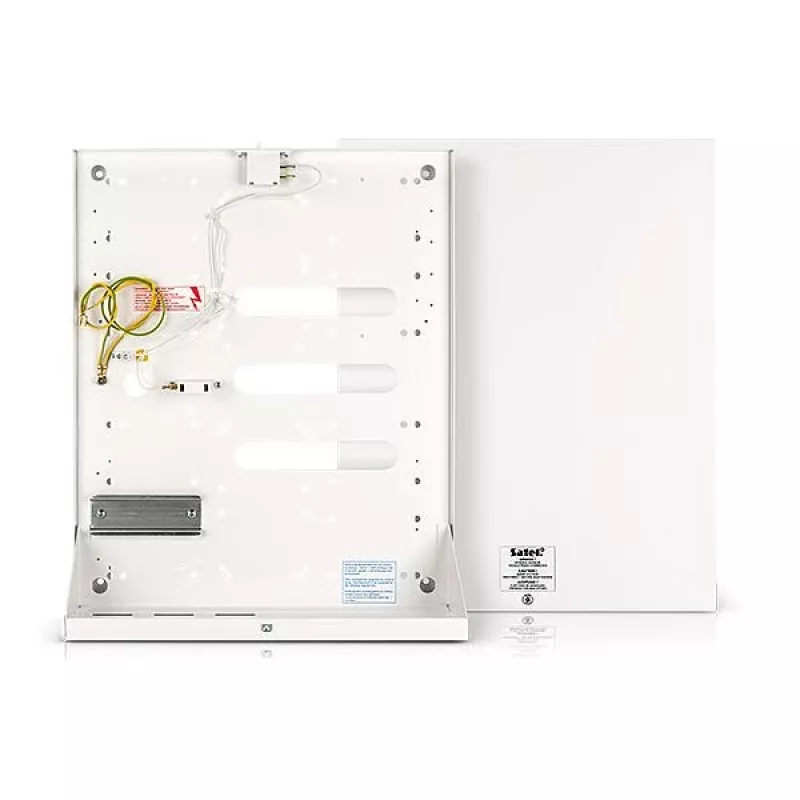

OMI-5 is a surface-mounted metal electrical enclosure by SATEL, intended for housing SATEL control panels, modules and expanders in different configurations. The enclosure dimensions are approximately 328 mm (W) x 120 mm (D) x 406 mm (H) and it provides robust protection against dust and moisture while meeting EN 50131 requirements for Grade 3. The housing includes space for a 17 Ah battery and an integrated DIN rail for mounting compatible power supplies and accessories.

Advantages

The metal construction ensures mechanical strength and increased protection level compliant with EN 50131 Grade 3. Double tamper protection secures the unit against opening the cover and against removal from the wall. An integrated DIN rail enables quick installation of APS series power supplies, and there is dedicated space for a 17 Ah battery. Compatibility with optional OMI-5 DIN rails and the OMI PI-5 set of plastic inserts and supports simplifies mounting of control panels and modules.

Suitable for

• Housing SATEL control panels, modules and expanders
• Installations requiring EN 50131 Grade 3 compliance
• Indoor and sheltered outdoor electrical or security installations
• Systems that need an internal 17 Ah backup battery

Key specifications

• Manufacturer: SATEL
• Model / MPN: OMI-5
• EAN: 5902135308844
• Material: metal, surface-mounted
• Protection standard: EN 50131, Grade 3
• Internal battery space: up to 17 Ah
• Integrated DIN rail for power supplies (e.g., APS-612, APS-412)
• Approximate dimensions: 328 mm (W) x 120 mm (D) x 406 mm (H)

How to use

Mount the OMI-5 enclosure on a suitable wall surface using appropriate fasteners. Install the SATEL control panel, modules or expanders inside the enclosure, securing them to the integrated DIN rail or using the optional OMI-5 DIN rails and OMI PI-5 plastic inserts and supports as required. Place a compatible 17 Ah battery in the provided space and connect power supplies such as APS-612 or APS-412 to the DIN rail. Ensure tamper switches are connected and tested to detect cover opening and enclosure removal.

Recommendations

Use the enclosure in environments consistent with its protection rating and follow local installation standards. If additional mounting convenience is needed, use the official OMI-5 DIN rails and OMI PI-5 accessory set. Verify compatibility of installed modules and power supplies with the enclosure dimensions before final assembly.
