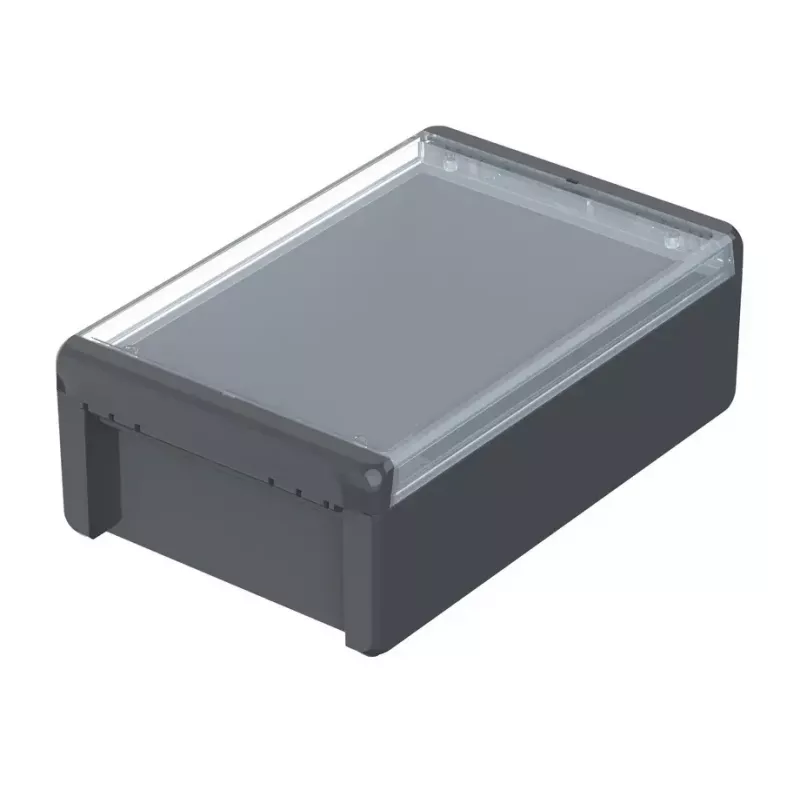

BOPLA seinäkotelo, polykarbonaatti, grafiitinharmaa (RAL 7024), 90 x 170 x 271 mm, IP66/IP67, IK08 96026334

IP66/IP67-rated wall-mount enclosure in graphite grey polycarbonate, sized 90 x 170 x 271 mm and built to withstand impacts up to IK08.

Overview

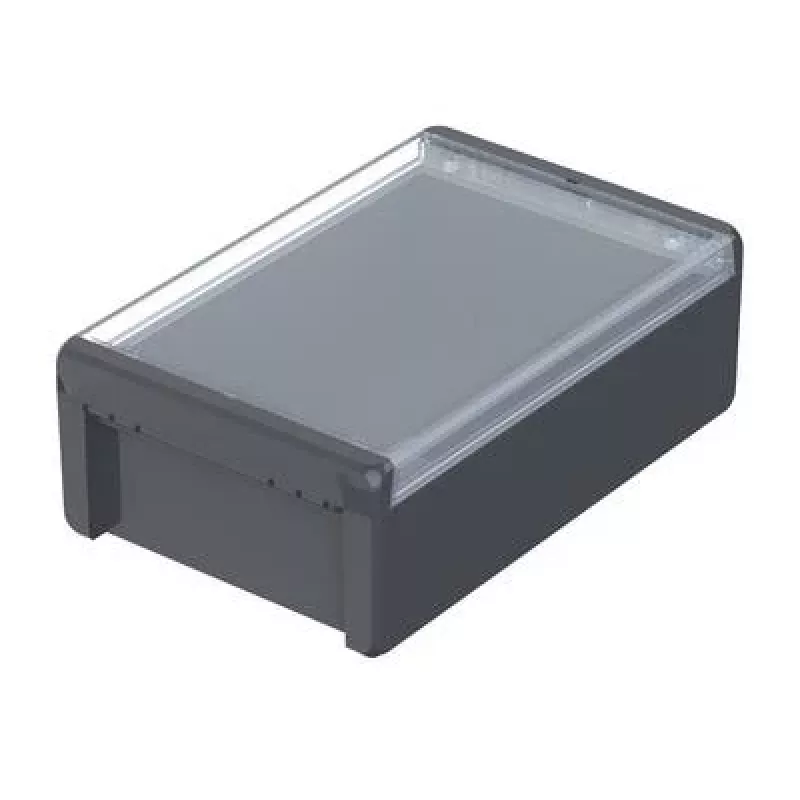

The BOPLA 96026334 is a robust wall-mounted enclosure made from polycarbonate in graphite grey (RAL 7024). Its external dimensions are 90 mm height, 170 mm width, and 271 mm length. The enclosure features a hinged lid with quick-release screws and a polyurethane gasket, ensuring reliable sealing. It is suitable for a wide operating temperature range from -35°C to +80°C and offers good chemical resistance against many acids, alkalis, and oils. The material is UV-resistant and has a flammability rating of UL 94 V-0. Internal mounting bosses allow installation of DIN rails or mounting plates.

What stands out

• High ingress protection: IP66 and IP67
• Impact resistance: IK08
• Hinged lid with quick-release screws
• Wide operating temperature range: -35°C to +80°C
• UV-resistant polycarbonate
• Flammability rating UL 94 V-0

Technical details

• Material: Polycarbonate
• Colour: Graphite grey (RAL 7024)
• External dimensions: 90 x 170 x 271 mm (H x W x L)
• Ingress protection: IP66 / IP67
• Impact resistance: IK08
• Lid type: Hinged lid
• Lid fastening: Quick-release screws
• Gasket material: Polyurethane (PU)
• Operating temperature range: -35°C to +80°C
• Flammability rating: UL 94 V-0
• Mounting features: Internal mounting bosses for DIN rails/mounting plates
• UV resistance: Yes
• Chemical resistance: Good against many acids, alkalis, and oils
• RoHS compliant: Yes

Our verdict

A durable and versatile enclosure for demanding industrial environments, offering high protection and easy access.
