Passiivinen teline RAM Mounts RAM-HOL-TAB20U 9 tuuman tableteille

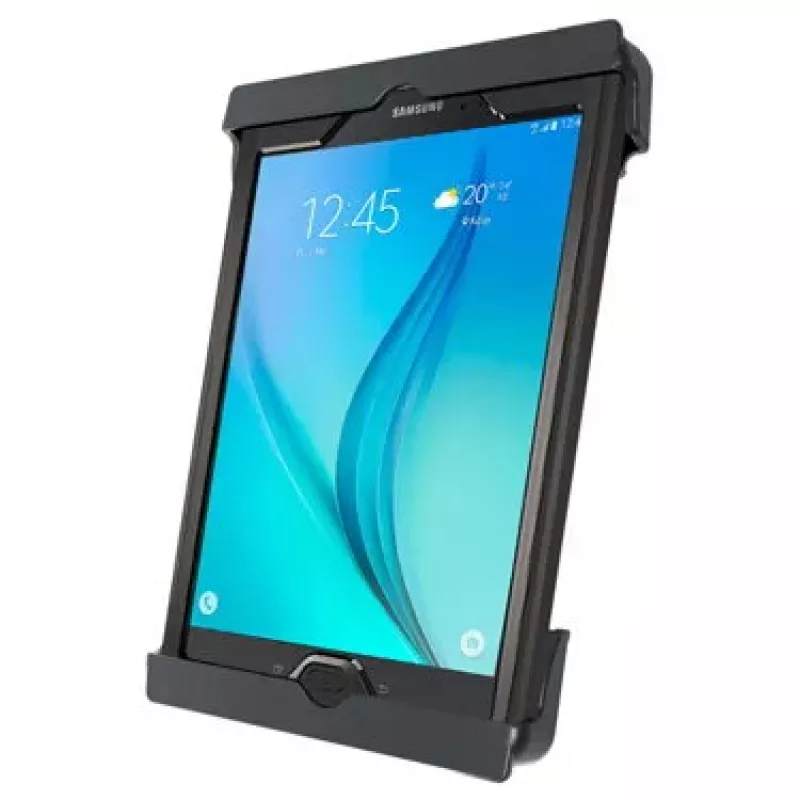

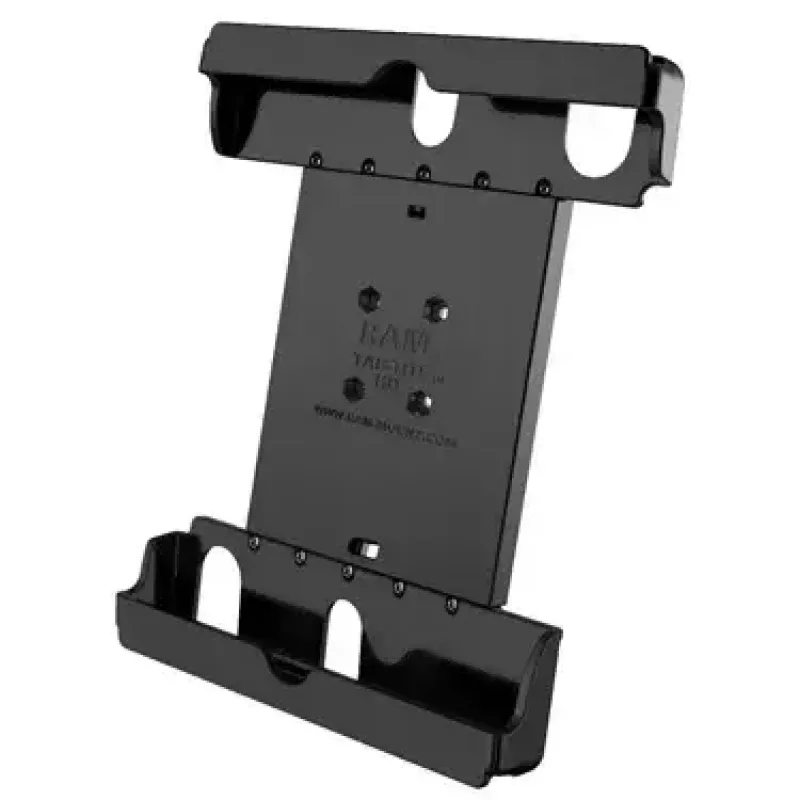

The RAM Mounts Tab-Tite passive cradle (model RAM-HOL-TAB20U) is a spring-loaded, quick-release holder designed for 9" tablets with heavier or rugged cases. The cradle has interchangeable cup ends to provide a near-custom fit while preserving access to audio jacks, USB, power and other ports. It includes four nuts and bolts compatible with RAM components that use the universal AMPs hole pattern. The product is the holder only; a tablet or case is not included.

Advantages

The spring-loaded mechanism allows quick loading and unloading while holding the tablet securely in place. Interchangeable cup ends enable adjustment for different tablet case profiles and maintain access to essential ports. The holder is constructed for in-vehicle and mobile use and ships with mounting hardware compatible with RAM AMPs-pattern components. For high-vibration or off-road use a tether is recommended to assist retention.

Suitable for

• 9" tablets with heavy-duty or rugged cases that fit the listed dimensions
• In-car navigation and hands-free tablet use
• Mounting to RAM components that use the universal AMPs hole pattern

Key specifications

• Model: RAM-HOL-TAB20U
• Type: Passive holder
• Compatible device: Tablet / UMPC (fits tablets within specified dimensions)
• Cradle dimensions (approx.): Height 9.5"–12.125"; Width 6.55"–7.43"; Depth 0.3"–0.875"
• Colour: Black
• Weight: 0.295 kg
• Included hardware: Set of four nuts and bolts for AMPs-pattern mounting

How to use

Measure your tablet (including its case) to ensure it falls within the cradle dimensions before mounting. Select and install the appropriate interchangeable cup ends for a secure fit around the tablet edges. Compress the spring-loaded arms, insert the tablet into the cradle, and release so the cups engage the device. Attach the cradle to any compatible RAM component or mount using the supplied nuts and bolts with the AMPs hole pattern. If necessary, fit an additional tether for extra retention in high-vibration or off-road conditions.

Recommendations

The holder is intended for in-vehicle and mobile use; verify tablet dimensions including any protective case before purchase. For extreme or off-road environments, use a tether to help retain the device. The product is sold as the holder only — tablet and protective case are not included.
