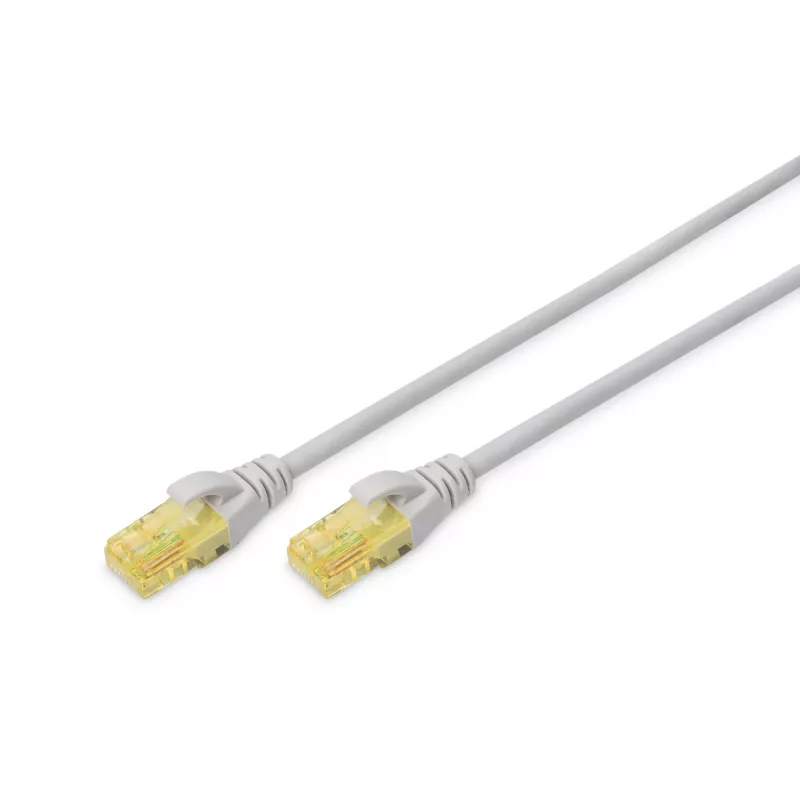

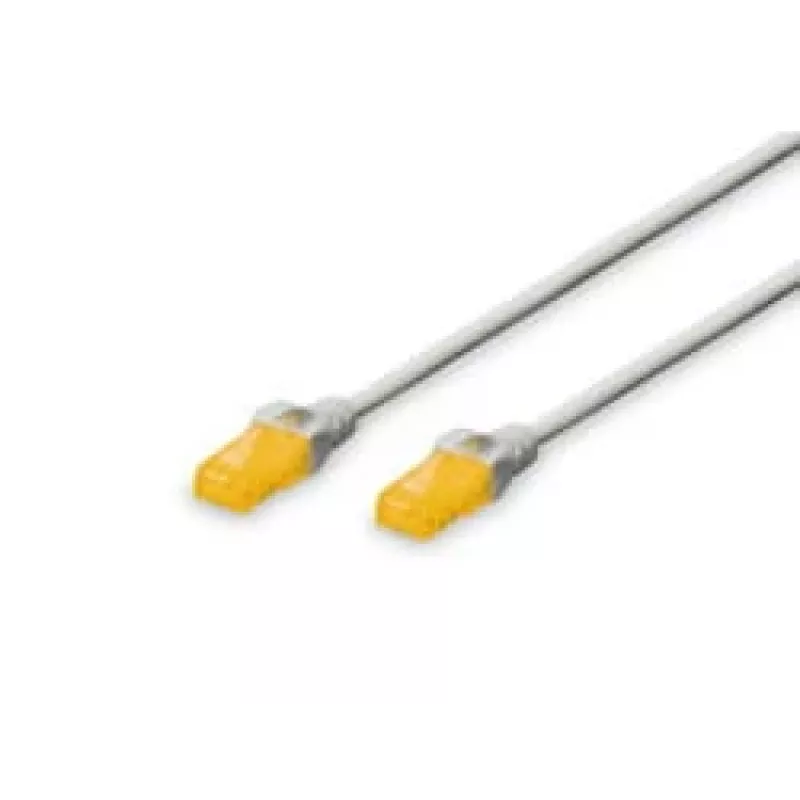

Patch-kaapeli Digitus CAT 6A U/UTP DK-1613-A-010 1 m

Future-oriented standards and high-end quality for your network. The DIGITUS Category 6A Class EA patch cord is designed to meet ISO/IEC 11801 and DIN EN 50173 Category 6A specifications, providing tested performance up to 500 MHz and compliance with ISO & EN channel requirements. The cable uses copper conductors, supports PoE+, and features a transparent yellow connector for easy identification of Category 6A. The LSZH (Low Smoke Zero Halogen) sheath improves fire behaviour and reduces smoke emissions.

Advantages

The patch cord delivers certified Category 6A performance including near-end crosstalk (NEXT) characteristics up to 500 MHz. A molded boot with kink protection and strain relief increases durability, while an integrated latch protector prevents lever breakage. The transparent yellow plug allows quick visual identification. The cable is PoE+ ready and uses copper conductors for reliable signal transmission.

Key specifications

• Category: 6A / Class EA
• Standards: ISO/IEC 11801, DIN EN 50173
• Frequency range: up to 500 MHz
• Conductor material: Copper (Cu)
• Sheath: LSZH (Low Smoke Zero Halogen)
• Plug color: transparent yellow (Category 6A identification)
• PoE support: PoE+ ready
• Features: molded boot with kink protection, strain relief, latch protector

How to use

Connect the patch cord between compatible network ports such as switches, patch panels and network devices. Ensure connectors are fully inserted until the latch engages. Route the cable without sharp bends to maintain performance and use the molded boot and strain relief to reduce stress at the connector. When installing in fire-sensitive areas, the LSZH sheath decreases smoke and toxic gas in the event of a fire.

Recommendations

For optimal network performance, keep cable runs within recommended channel lengths, avoid tight bends, and verify system compliance with Category 6A testing equipment after installation.
