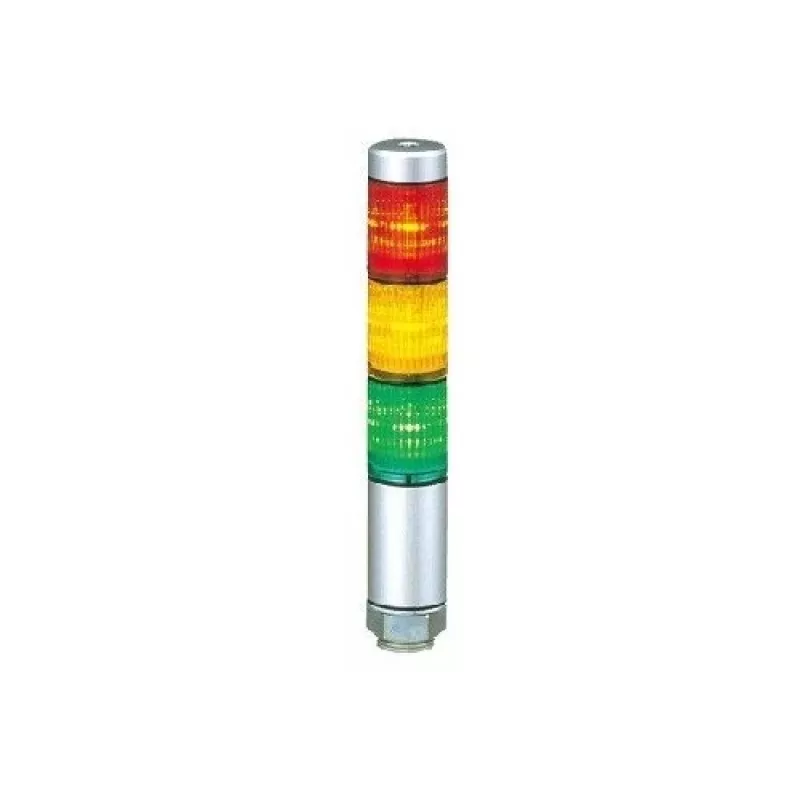

PATLITE MPS-302-RYG LED-merkkivalotolppa 30 mm 3-vaiheinen punainen/oranssi/vihreä 24V DC

With an IP65 rating, this 30mm 3-tier LED signal tower withstands dust and water jets while delivering brilliant red, orange, and green status indication for industrial environments.

Overview

The PATLITE MPS-302-RYG is a compact stack light from the MPS Series, engineered for clear visual communication in automation, manufacturing, and logistics. Its three tiers emit red, orange, and green light, providing at-a-glance status updates for machinery and processes. The long-life LED light source ensures maintenance-free operation, while the direct mount design and pre-wired cable simplify installation. Built with an ABS resin body and AS resin lenses, this signal tower is both durable and lightweight. Certified to CE, RoHS, and UL standards, it meets international safety requirements.

What stands out

• High-visibility LED colours: red, orange, and green for quick status recognition
• IP65 protection: dust-tight and resistant to water jets, suitable for harsh conditions
• Energy-efficient: current consumption of approximately 120 mA at 24V DC
• Maintenance-free: long-life LEDs eliminate bulb replacements
• Easy installation: direct mount with pre-wired cable reduces wiring time
• Wide operating temperature range: -20°C to +50°C

Technical details

• Product Series: MPS Series
• Number of Tiers: 3
• Light Colours: Red, Orange, Green
• Module Diameter: 30 mm
• Operating Voltage: 24V DC
• Light Source: LED
• Mounting Type: Direct Mount
• Protection Rating: IP65
• Operating Temperature: -20°C to +50°C
• Body Material: ABS Resin
• Lens Material: AS Resin
• Current Consumption: Approx. 120 mA
• Light Pattern: Continuous
• Buzzer: No
• Connection Type: Pre-wired cable
• Certifications: CE, RoHS, UL

Our verdict

The PATLITE MPS-302-RYG combines rugged construction, vivid LED indication, and effortless installation, making it an excellent choice for industrial status signalling where reliability is paramount.
