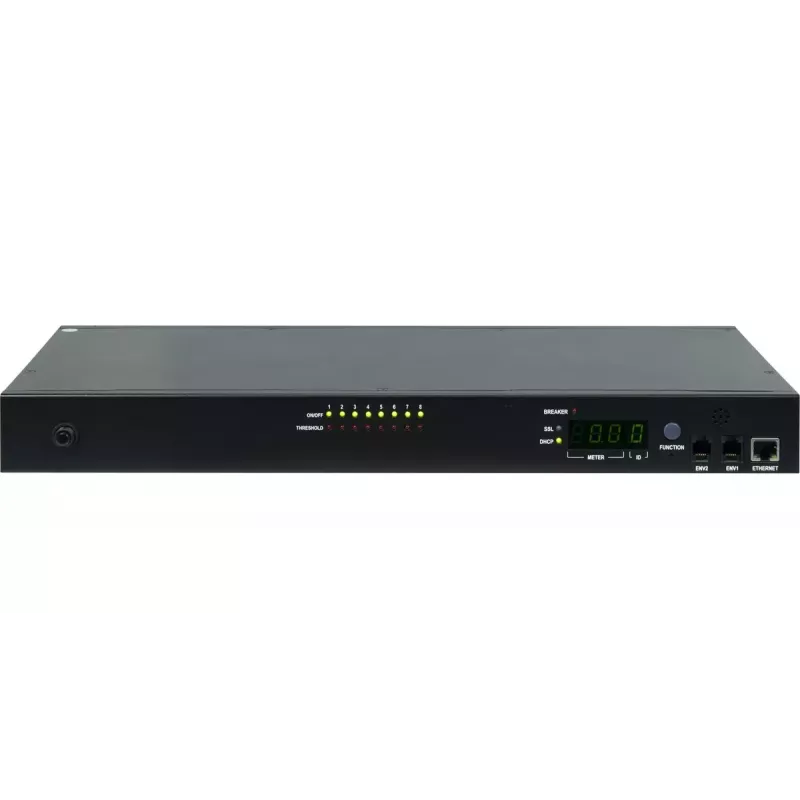

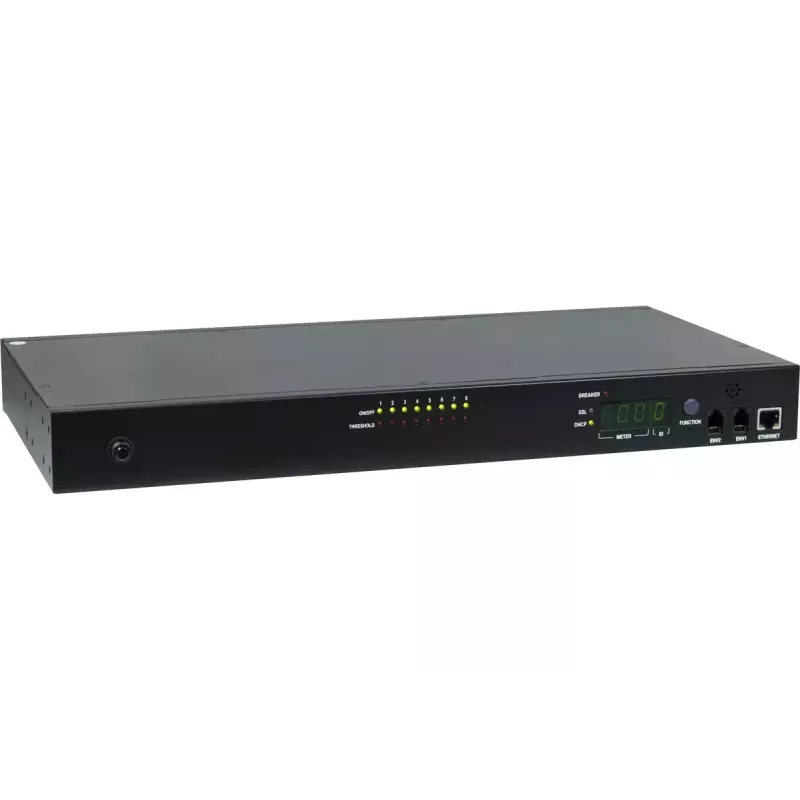

PDU Inter-Tech SD-1688 8 AC-pistorasiaa teräs musta

The PDU Inter-Tech SD-1688 is a switched power distribution unit for 19" server racks with eight AC outlets, housed in a black steel chassis. It provides remote switching of each outlet and reports current consumption and voltage. Network management is available via web interface (HTTP/HTTPS) and SNMP. The front display shows the device IP address and, when sensors are connected, temperature and humidity readings. Up to two external sensors can be attached for remote environmental monitoring.

Advantages

The SD-1688 allows individual remote switching of all eight C13 outlets, supports SNMP and secure web access (HTTPS), and supplies real-time electrical data including current and voltage. Its steel construction fits standard 19" racks and the front LED and display provide clear status and network information. Compact design and a maximum rated input of 200–240 V at 16 A make it suitable for many rack installations.

Suitable for

• 19" server racks in data centers and server rooms
• Remote power management and controlled reboots of rack equipment
• Environments requiring basic power and environmental monitoring with up to two sensors

Key specifications

• Brand: INTER-TECH
• Model: SD-1688 (MPN: 88887381, EAN: 4260455648097)

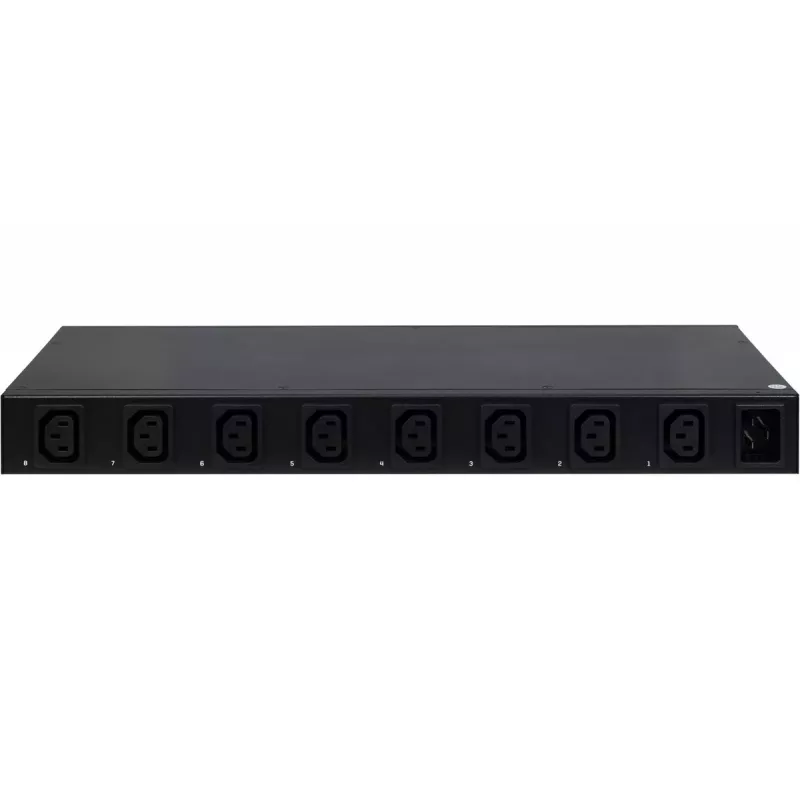

• AC outlets: 8 × C13
• Input plug: C20
• Nominal input voltage: 200–240 V
• Maximum current: 16 A
• Frequency: 50 Hz
• Type: Switched PDU
• Material and colour: Steel, Black
• Weight: 3.055 kg

How to use

Mount the SD-1688 in a 19" rack using the appropriate mounting hardware. Connect the unit to the mains using the C20 input plug and connect equipment to the eight C13 outlets. Configure network settings through the front display or the web interface, then manage outlets individually via HTTP/HTTPS or SNMP. If environmental monitoring is required, attach up to two compatible temperature/humidity sensors and check their values through the web interface or SNMP.

Recommendations

Ensure the connected load on the PDU does not exceed the rated 16 A input current and verify that the rack power distribution and upstream circuit breakers are properly sized. Use HTTPS for secure access and monitor sensor readings regularly to detect environmental issues early.
