Pedaalilisäsarja Heusinkveld HE-SPUBP20 musta hopea

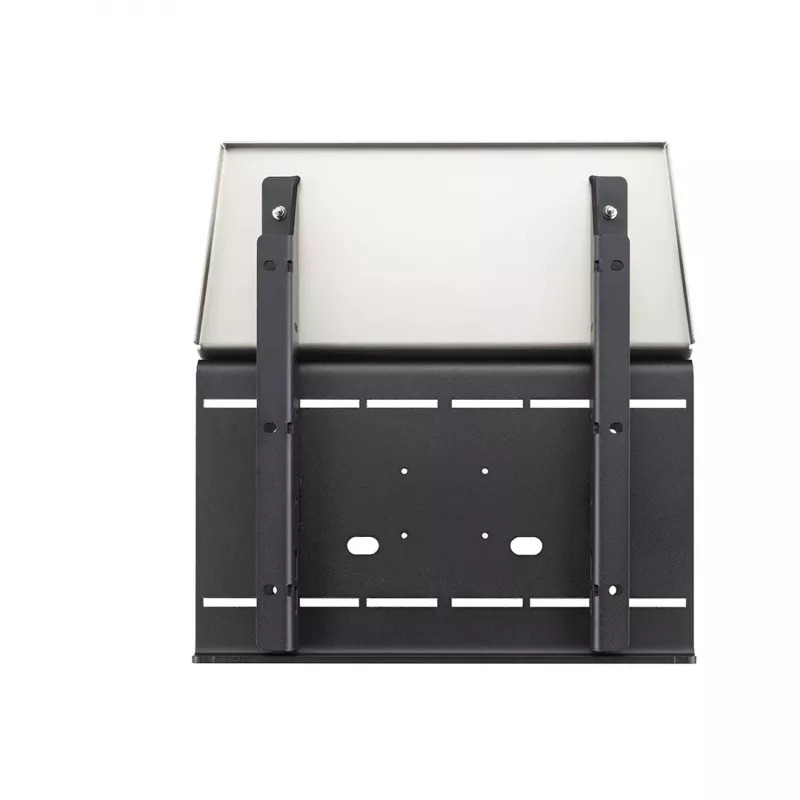

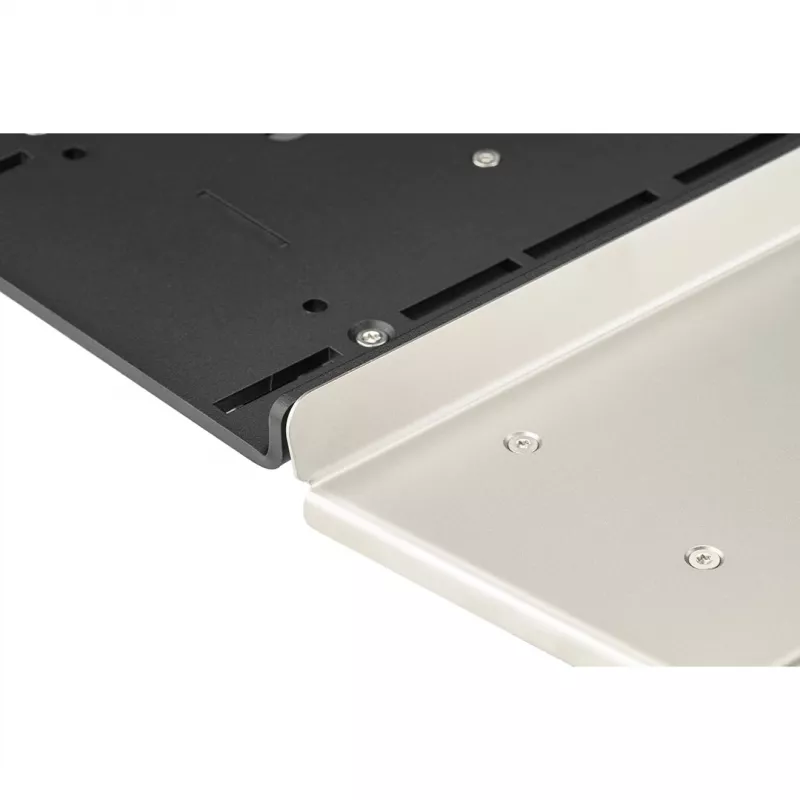

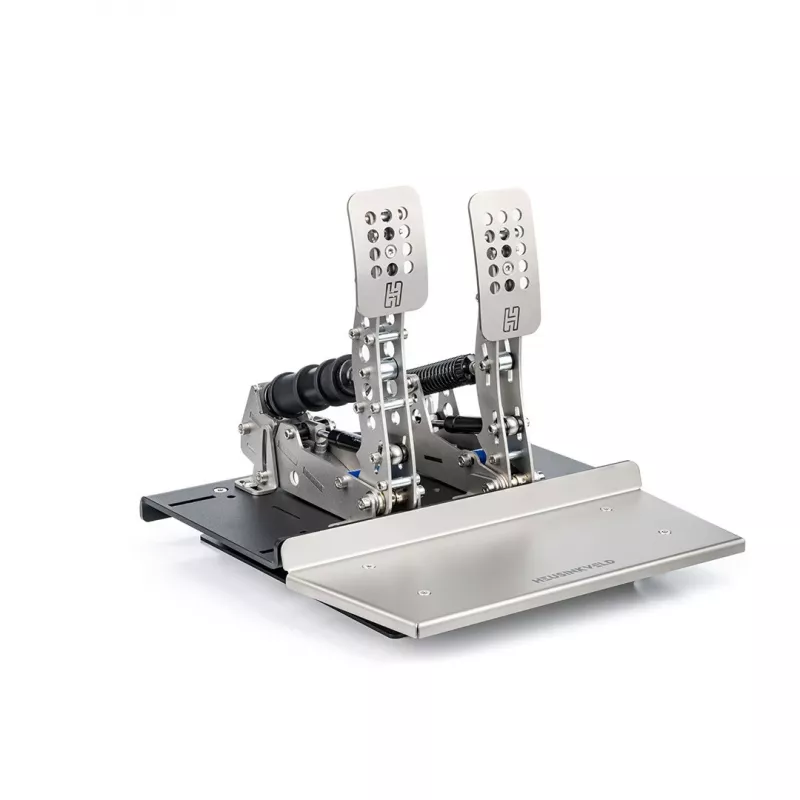

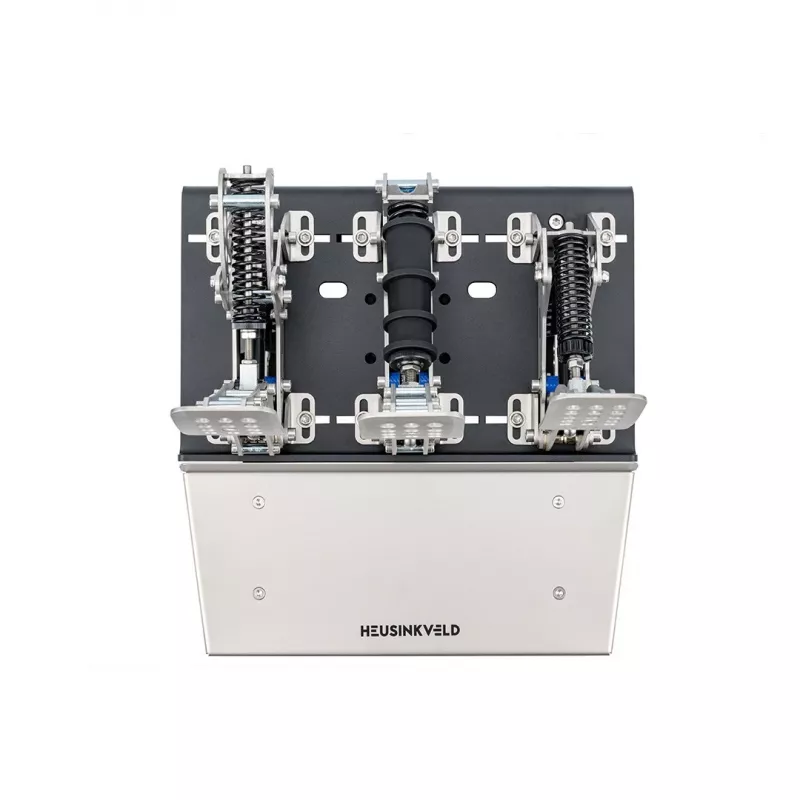

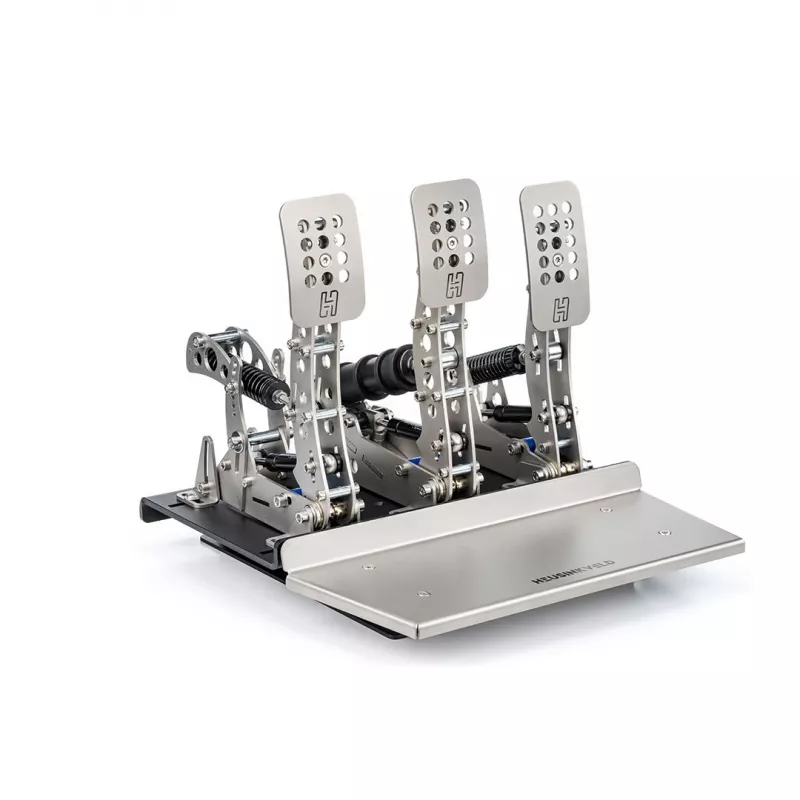

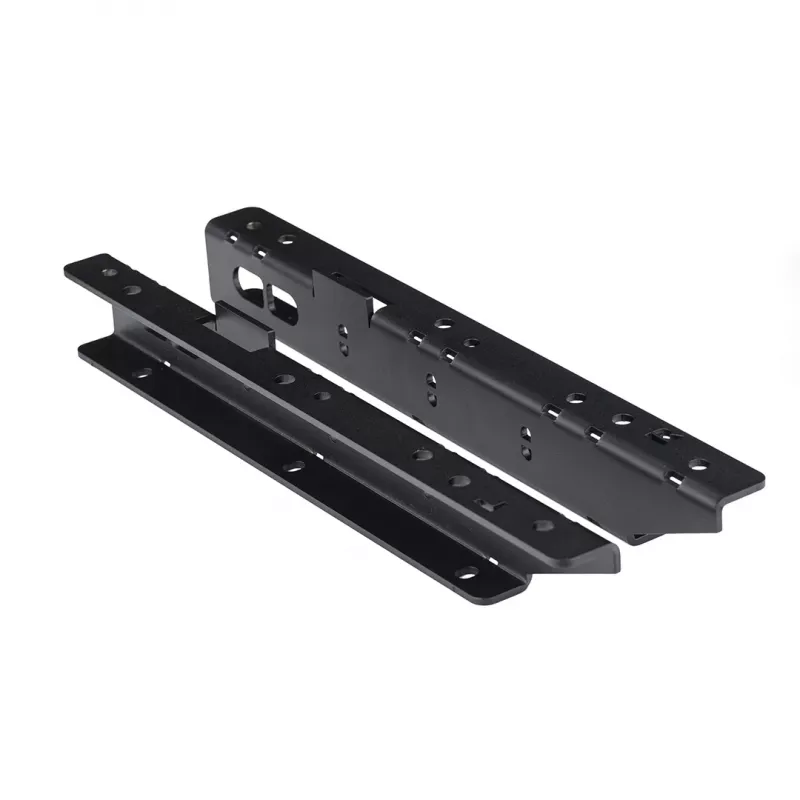

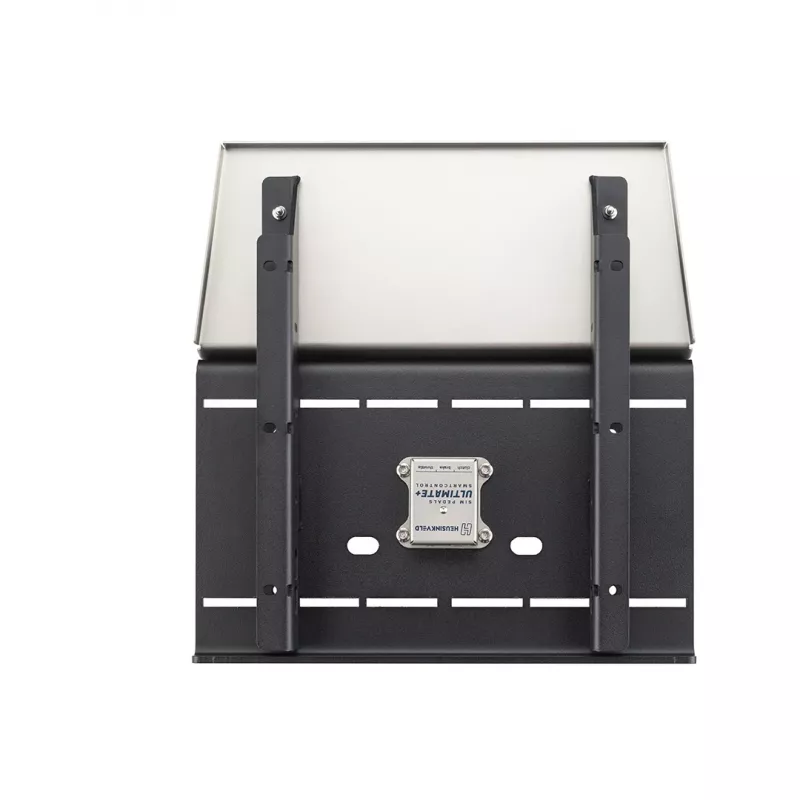

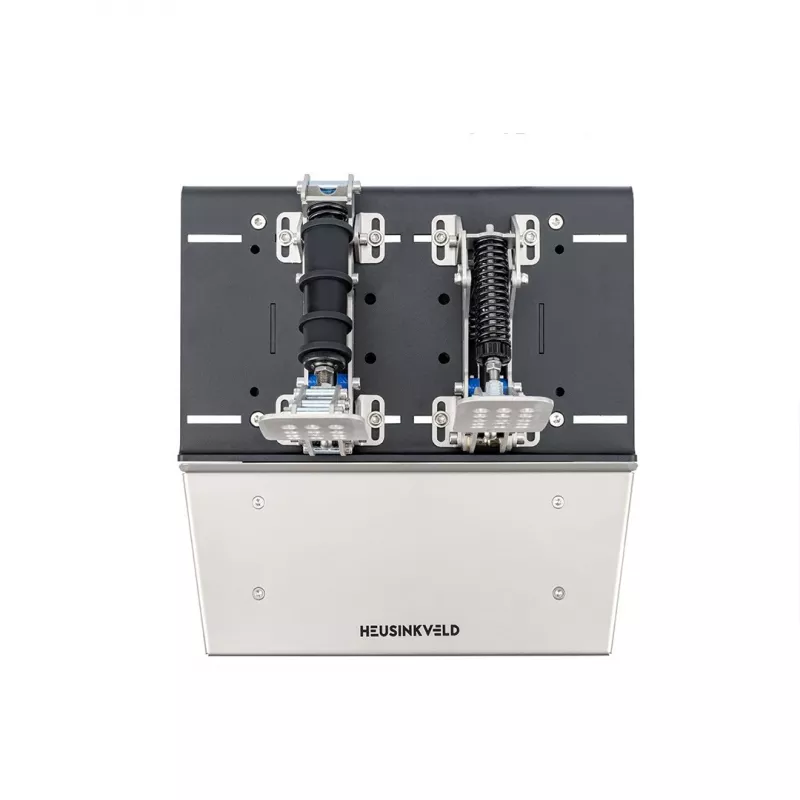

The Heusinkveld HE-SPUBP20 Black Silver pedal accessory kit is an engineered baseplate solution for the Sim Pedals Ultimate+ and classic Ultimate pedals. Designed to provide a rigid mounting platform, the kit reduces flex on standard rigs under high pedal loads and creates a stable foundation for accurate pedal feel and consistent performance. The kit combines a pedal plate with slotted mounting points, a height-adjustable heel plate and two mounting brackets, plus all necessary hardware to attach the pedals to the baseplate and the baseplate to an underlying 6 mm plate.

Advantages

This accessory kit delivers a rigid, repeatable mounting platform that improves pedal ergonomics and response by minimising unwanted movement in typical simulator rigs. Lateral and longitudinal adjustment options let you fine-tune individual pedal position, while built-in t-nuts in the adjustment slots enable convenient micro-adjustments without full disassembly. Cable pass-throughs keep wiring tidy and the supplied mounting hardware allows secure attachment to a 6 mm supporting plate or aluminium profile-based rigs.

Suitable for

Key specifications

How to use

Mount the pedal plate to your rig using the supplied brackets and appropriate fastening into a 6 mm underlying plate or aluminium profiles. Attach each pedal to the pedal plate using the supplied hardware and place t-nuts in the adjustment slots for initial positioning. Use the slots in the pedal feet and the slotted pedal plate to set lateral and fore-aft pedal positions. Choose the heel plate elevation by installing the supplied 30 mm spacers for a raised position or leaving it at the default height for a flat orientation. Route pedal cables through the provided pass-throughs and secure them to prevent interference during operation.

Recommendations

Use this baseplate only with a full frame rig or simulator that provides solid connection between the pedals and the seat; the baseplate does not support standalone floor mounting or use in wheel stands without a robust structural connection. For optimal results, secure the baseplate to a 6 mm thick supporting plate or compatible aluminium profiles and verify all fasteners are tightened before use.
