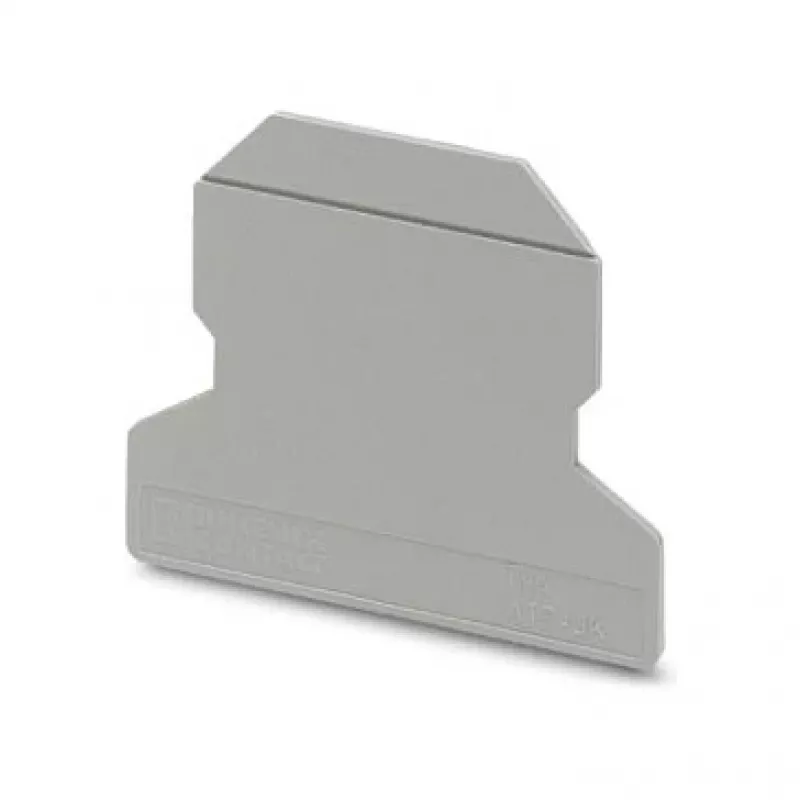

Phoenix Contact ATP-UK väliseinä 3003224 - harmaa polyamidi, 60,5 mm, napsautettava, V0

With a flammability rating of V0 per UL 94 and constructed from halogen-free polyamide, the Phoenix Contact ATP-UK partition plate delivers robust electrical isolation and clear visual separation for terminal blocks. This 60.5mm long plate snaps directly onto DIN rails, providing a secure barrier in control cabinets and distribution panels.

Overview

The Phoenix Contact 3003224 ATP-UK partition plate is part of the CLIPLINE complete system, designed for use with UT, ST, PT, and PTTB series terminal blocks. It ensures safe separation of adjacent circuits, preventing accidental contact and enhancing wiring clarity. The plate is made of gray polyamide (PA), offering excellent insulation properties and mechanical strength.

What stands out

• Halogen-free polyamide material for environmental safety and low smoke emission.
• UL 94 V0 flammability rating for high fire resistance.
• Snap-on mounting for quick installation without tools.
• Compatible with multiple Phoenix Contact terminal block series (UT, ST, PT, PTTB).
• Operating temperature range from -60°C to 105°C, suitable for harsh environments.
• RoHS and REACH compliant, meeting global regulatory standards.

Technical details

• Product type: Partition plate
• Material: Polyamide (PA)
• Colour: Gray
• Length: 60.5 mm
• Width (thickness): 2.2 mm
• Height: 42.5 mm
• Mounting type: Snap-on
• Insulating material group: I (IEC 60664)
• Flammability rating: V0 (UL 94)
• Operating temperature: -60 °C to 105 °C
• Pollution degree: 3
• Overvoltage category: III
• Manufacturer series: CLIPLINE

Our verdict

The ATP-UK partition plate is a reliable and safe choice for organizing terminal blocks, offering excellent fire resistance and environmental compliance.
