Phoenix Contact PTFIX 10/12X4-GNYE jakelublokki, Push-in, 10 mm², vihreä/keltainen 1153438

With 16 push-in connections and a 41 A current rating at 800 V, this distribution block handles demanding wiring tasks in a compact footprint.

Overview

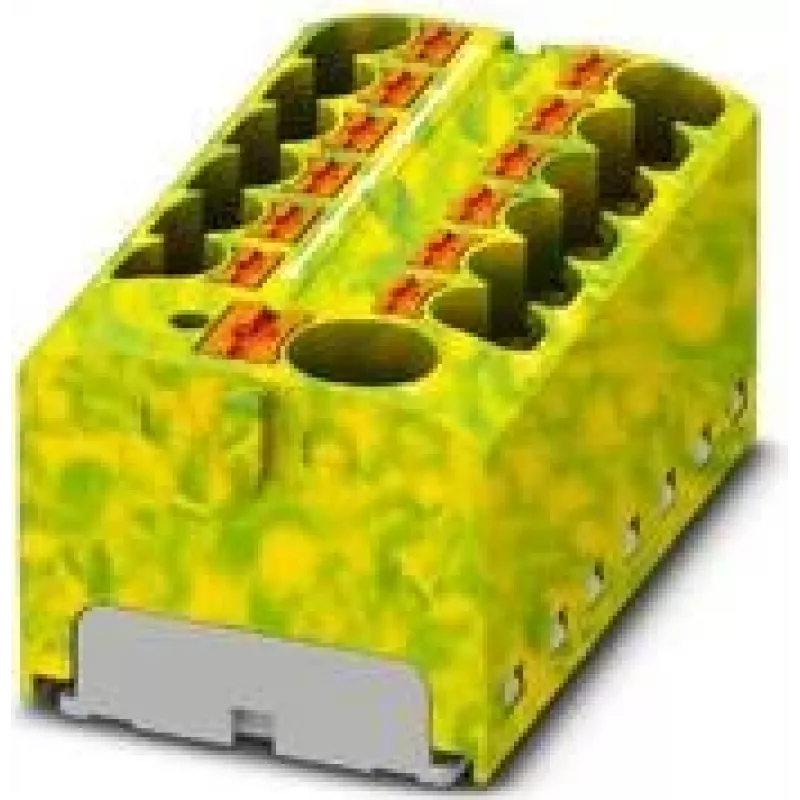

The Phoenix Contact PTFIX 10/12X4-GNYE is a distribution block from the PTFIX series, designed for efficient potential distribution in control cabinets and junction boxes. It features 12 connections for conductors up to 10 mm² and 4 additional connections of the same cross-section, all using push-in technology for tool-free wiring. The green/yellow housing indicates its function as a protective earth (PE) terminal.

What stands out

• Push-in connection technology for fast, tool-free installation
• High current capacity: 41 A at 800 V
• Accepts solid and stranded conductors from 0.5 to 10 mm² (AWG 20-8)
• Flexible mounting: direct, adhesive, or DIN rail with adapter
• Made of polyamide (PA) for durability and insulation

Technical details

• Connection type: Push-in
• Number of connections: 16 (12x 10 mm² + 4x 10 mm²)
• Nominal cross section: 10 mm²
• Conductor cross section, solid: 0.5 - 10 mm²
• Conductor cross section, stranded: 0.5 - 10 mm²
• Conductor cross section, AWG: 20 - 8
• Nominal current: 41 A
• Nominal voltage: 800 V
• Colour: Green/Yellow
• Mounting type: Direct mounting, Adhesive, DIN rail (with adapter)
• Insulating material: PA (Polyamide)
• Stripping length: 12 mm
• Pollution degree: 3
• Overvoltage category: III
• Number of potentials: 1

Our verdict

A reliable and flexible distribution block for PE applications, offering high current capacity and easy push-in wiring.
