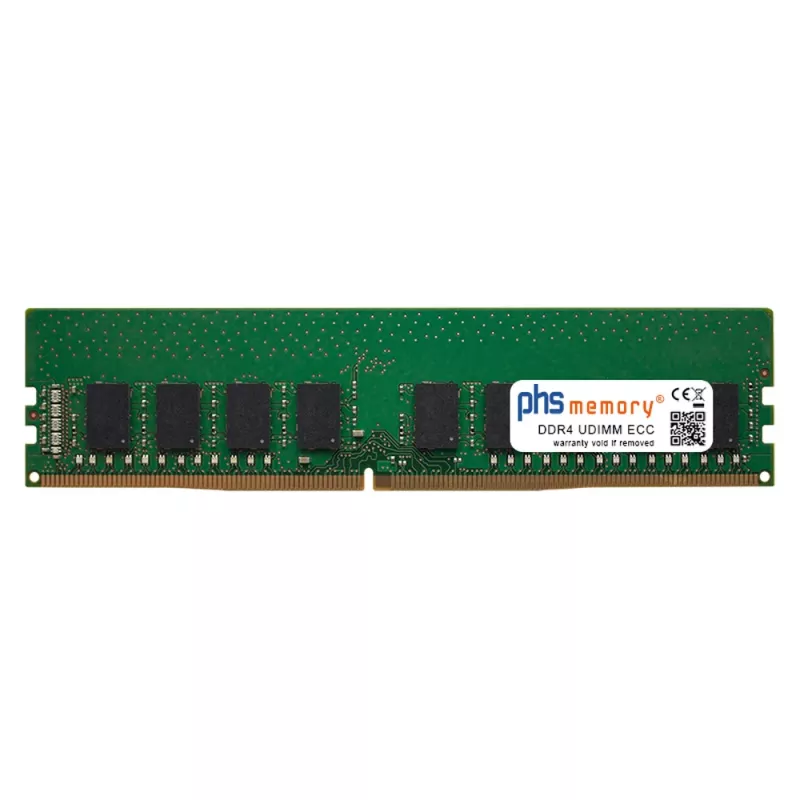

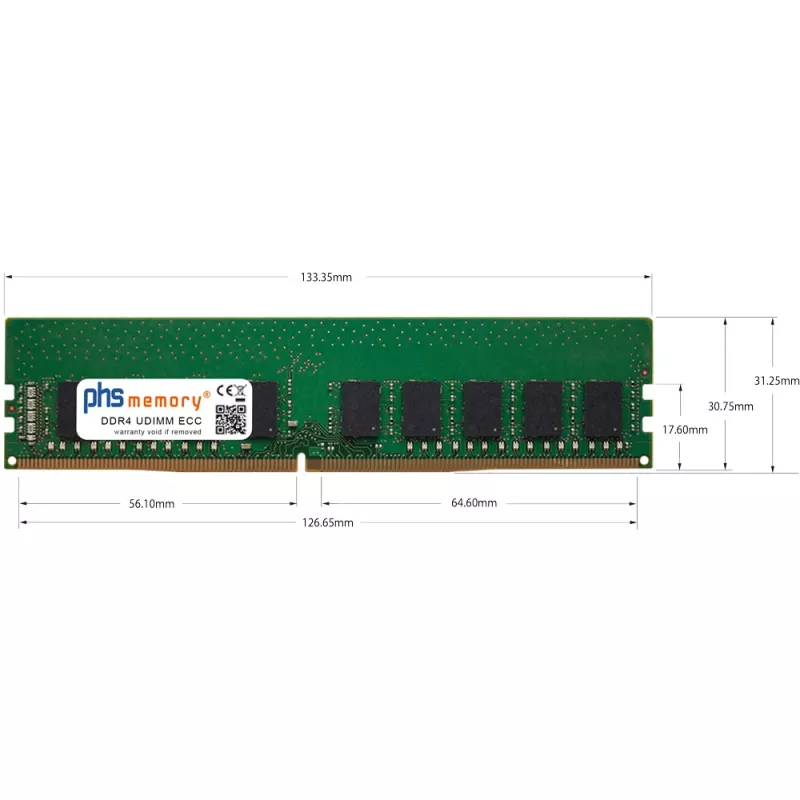

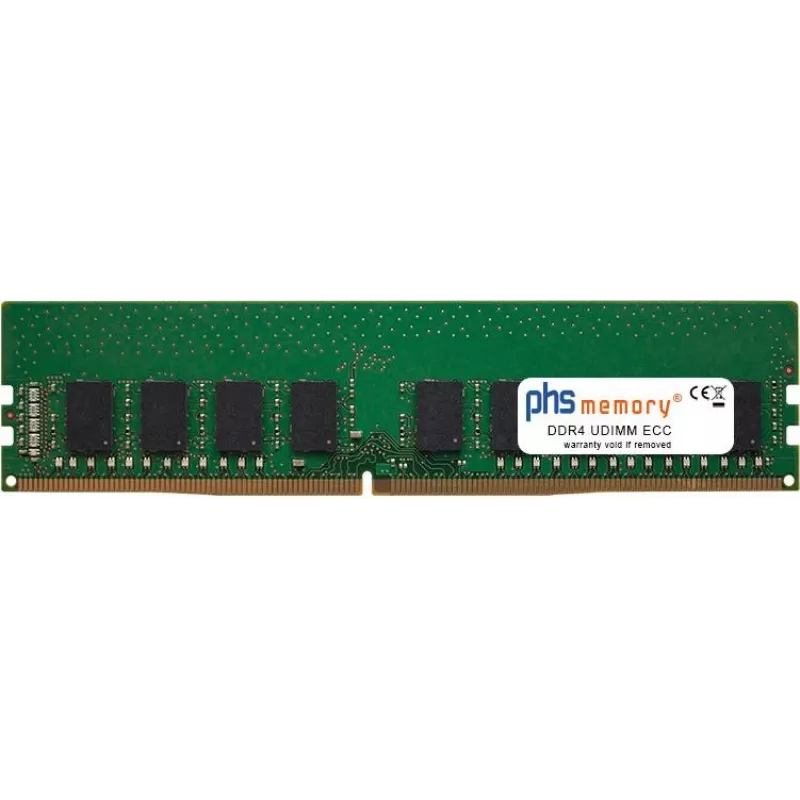

PHS-memory 8GB DDR4 ECC UDIMM 3200MHz PC4-25600E RAM Gigabyte B550M DS3H R2 SP580459

This PHS-memory module pairs 8GB of DDR4 ECC UDIMM memory with a 3200MHz clock, targeting servers and workstations that need error correction without registered buffering. The PC4-25600E rating and 288-pin form factor make it a direct fit for the Gigabyte B550M DS3H R2 motherboard, ensuring stable operation in memory-sensitive tasks.

Highlights

• 8GB capacity on a single unbuffered ECC DIMM
• 3200MHz data rate with JEDEC standard compliance
• 1.2V operating voltage for energy-efficient performance
• 1Rx8 rank and x8 chip organization for reliable signal integrity

In daily use

Installed in a compatible server or workstation, this module provides error-correcting memory protection while maintaining the simplicity of an unbuffered design. The 0°C to 85°C operating range supports continuous workloads, and the lack of a heat spreader keeps the module low-profile for compact builds.

Full specifications

• Memory type: DDR4
• Capacity: 8 GB
• Speed: 3200 MHz
• PC standard: PC4-25600E
• Form factor: UDIMM
• ECC: Yes
• Pin count: 288-pin
• Voltage: 1.2 V
• Rank: 1Rx8
• Chip organization: x8
• JEDEC standard: Yes
• Operating temperature: 0°C to 85°C
• Storage temperature: -55°C to 100°C
• Heat spreader: No
• Compatibility: Gigabyte B550M DS3H R2

Final note

A focused 8GB ECC UDIMM for builds that require error correction without registered memory overhead.
