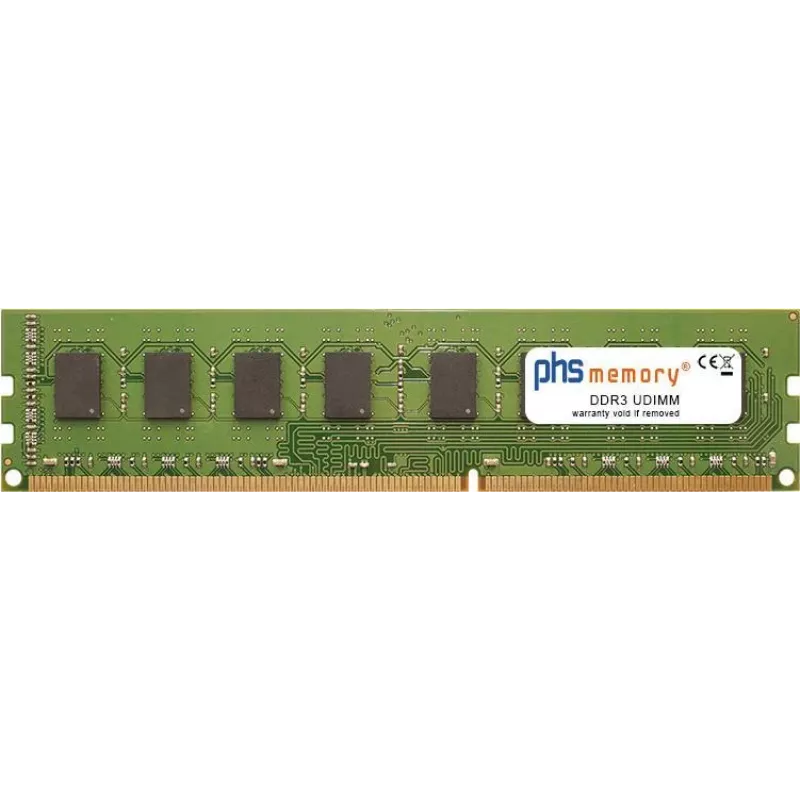

PHS-memory SP174860 2GB DDR3-1066 Non-ECC Unbuffered DIMM

With a 1066 MHz clock speed and CL7 latency, this 2GB DDR3 module delivers responsive performance for desktop systems. The PHS-memory SP174860 is a single 2GB 240-pin DIMM, running at 1.5V for energy-efficient operation. It is unbuffered and non-ECC, making it suitable for mainstream desktop PCs that require standard memory compatibility.

Overview

The SP174860 provides a straightforward memory upgrade for desktop computers. It uses DDR3 SDRAM technology with a data transfer rate of PC3-8500U. The module is configured as a single rank x8 (1Rx8) with a chip organization of 256Mx8, ensuring stable performance in compatible systems.

What stands out

• 2GB capacity in a single module
• DDR3-1066 speed with CL7 latency
• Unbuffered, non-ECC design for desktop use
• Standard 240-pin DIMM form factor
• Operates at 1.5V

Technical details

• Memory type: DDR3 SDRAM
• Capacity: 2 GB (1 x 2 GB)
• Speed: 1066 MHz (PC3-8500U)
• Form factor: 240-pin DIMM
• Error correction: Non-ECC
• Buffering: Unbuffered
• Voltage: 1.5 V
• CAS latency: CL7
• Rank: 1Rx8 (Single Rank x8)
• Chip organization: 256Mx8
• Application: Desktop PC

Our verdict

A reliable 2GB DDR3 module for basic desktop upgrades, offering standard specifications and compatibility.
