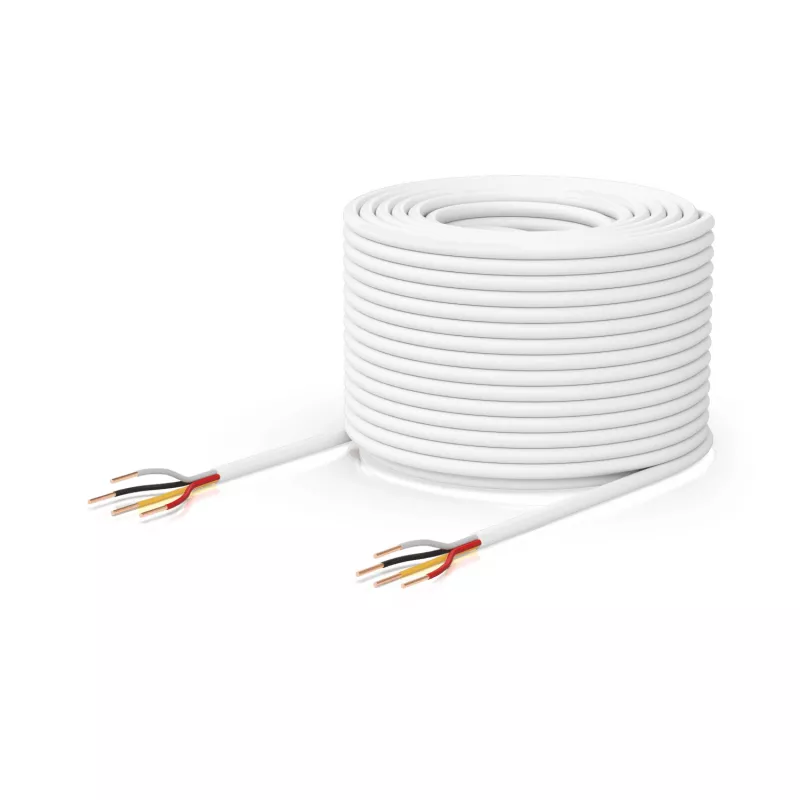

Pienjännitekaapeli Ubiquiti UACC-CABLE-DOORLOCKRELAY-2P

A 500-foot (152.4 m) spool of one or two-pair low-voltage cable intended for door lock relay and similar low-voltage control applications. The Ubiquiti UACC-CABLE-DOORLOCKRELAY-2P features a thermoplastic elastomer (TPE) jacket for flexibility and environmental resistance and is rated for a maximum operating voltage of 36 V. The cable is supplied in white and comes on a spool for easy deployment.

Advantages

The UACC-CABLE-DOORLOCKRELAY-2P provides a combination of flexibility and durability due to its TPE jacket, supports low-voltage installations up to 36 V, and is delivered on a 152.4 m (500 ft) spool for long runs without frequent joins. Its white sheath allows discreet installation in most indoor environments.

Suitable for

• Door lock relay wiring and access control systems
• Low-voltage control and signaling circuits
• Long cable runs in commercial or residential installations

Key specifications

• Brand: UBIQUITI
• Model / MPN: UACC-Cable-DoorLockRelay-2P
• Length: 152.4 m (500 ft)
• Pairs: 1 or 2 pairs (one- or two-pair configuration)
• Maximum operating voltage: 36 V
• Jacket material: Thermoplastic elastomer (TPE)
• Color: White

How to use

Measure and cut the required length from the spool, strip the conductor ends according to the terminal manufacturer’s instructions, and terminate at the relay, controller or connector specified for your system. Observe the 36 V maximum operating voltage when selecting applications and equipment. Secure the cable along its route using appropriate clips or trunking to prevent strain on terminations.

Recommendations

Use this low-voltage cable for indoor or protected installations; avoid exposure to direct sunlight or severe outdoor conditions unless additional protection is provided. Follow local electrical codes and manufacturer guidelines for low-voltage wiring and access control equipment installation.
