Piirustuslauta Rotring Profil A3

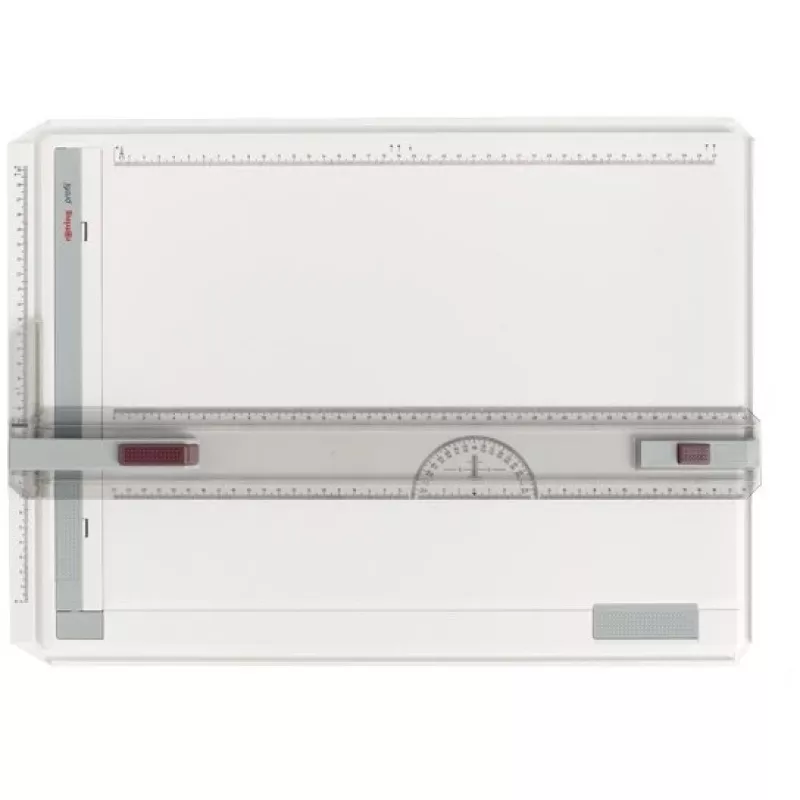

Rotring Profil A3 drawing board provides a stable, precise surface for technical and artistic work. Sized for A3 sheets (297 x 420 mm), the board features a white working surface for clear contrast and accurate line visibility. The lightweight, robust construction resists warping and is designed for regular professional use in studios or on the move.

Advantages

The Profil A3 uses a parallel straightedge with a STOP-and-GO locking and unlocking action and an L-system straightedge design that permits drawing along the top edge down to the bottom of the sheet with consistent accuracy. A magnetic clamp strip and an additional corner clamp secure media in place while guide rails ensure permanently smooth, featherlight straightedge movement. An end lock on the A3 straightedge adds stability, and the board is compatible with optional tilters for improved working ergonomics.

Suitable for

• Architectural and engineering technical drawings
• Graphic design and illustration
• Students and drafting exercises
• Portable onsite sketching and studio work

Key specifications

• Model: Rotring Profil A3 (MPN S0213750, EAN 4006856522280)
• Working area: A3 — 297 x 420 mm
• Surface color: white
• Straightege type: parallel straightedge with L-system
• Clamping: magnetic clamp strip plus additional corner clamp
• Features: STOP-and-GO locking, guide rails for smooth movement, end lock

How to use

Place an A3 sheet on the white work surface and secure it with the magnetic clamp strip and the corner clamp. Use the parallel straightedge for precise horizontal lines; engage the STOP-and-GO mechanism to lock the straightedge in place when required. Draw along the straightedge top edge using the L-system design to reach the bottom of the sheet with stable guidance. If needed, attach an optional tilter to change the working angle for greater comfort.

Recommendations

Keep the working surface clean and free of abrasive debris to preserve the smooth movement of the straightedge and guide rails. Store the board flat when not in use to avoid unnecessary pressure or bending; use optional tilters only as recommended by the manufacturer.
