Pinta-asennettava ulkokotelo Digitus DN-93844-OD-2

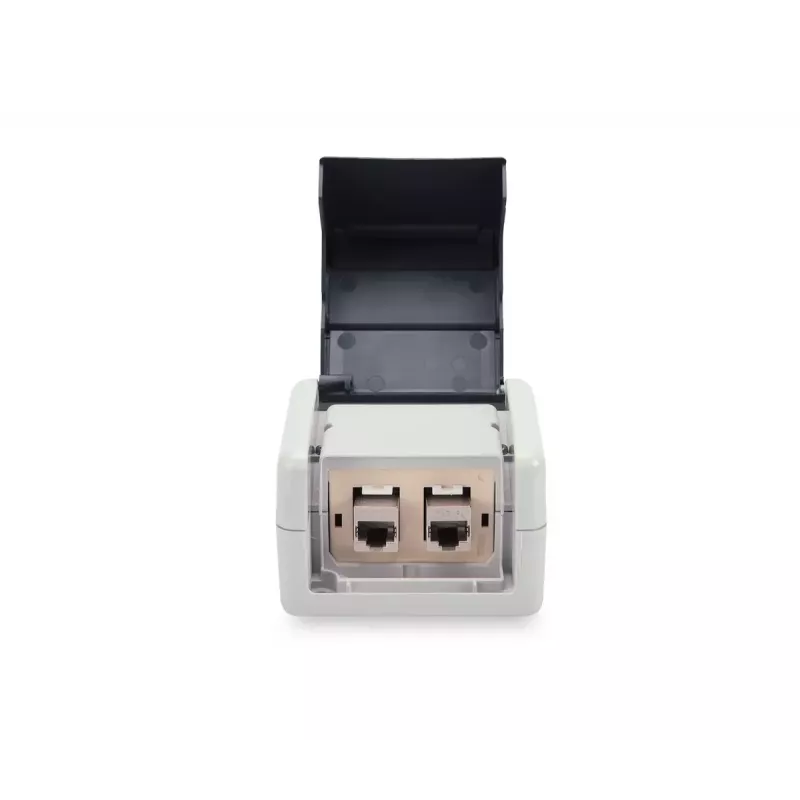

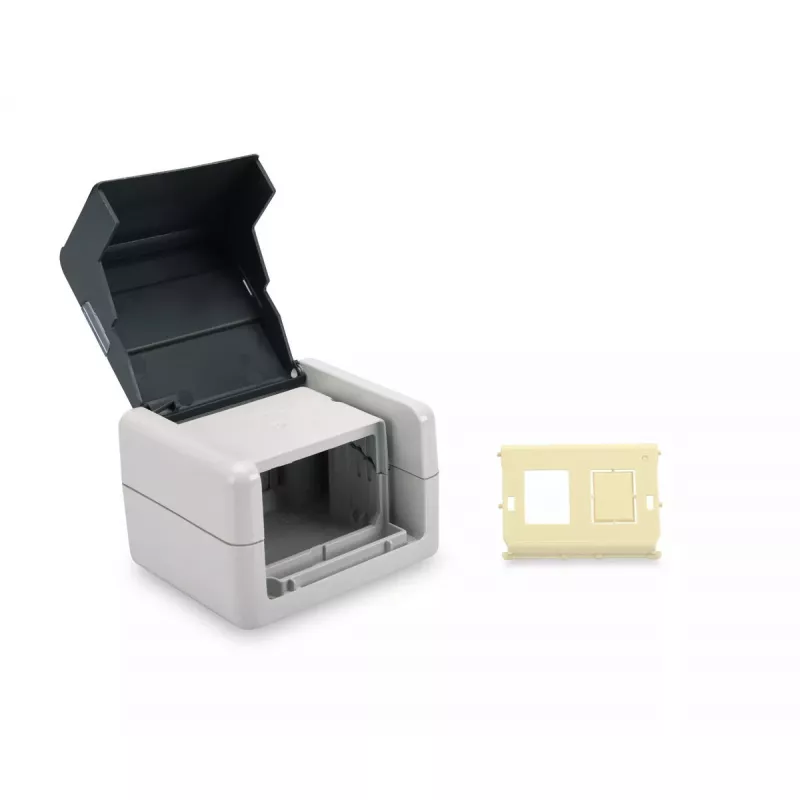

The Outdoor Surface Mount Box Digitus DN-93844-OD-2 is a weather-resistant enclosure designed for two Keystone modules. Made of halogen-free ABS thermoplastic (LSZH), the housing is rated IP44 and intended for outdoor surface mounting. The set includes a 2-port mounting inlet (DN-93844-OD-1) and offers a hinged lid with an integrated labelling field and dust protection for the module openings. The box supports a vertical outlet for the data cable and is suitable for use in temperature ranges from -20° to +70°C. Dimensions: 86 mm (W) x 58 mm (H) x 75 mm (D).

Advantages

The enclosure provides IP44 protection against water splashes and solid particles, screw fastening for straightforward installation, and a hinged lid that protects Keystone module connections while allowing labelling. The halogen-free LSZH material and UL 94V-0 rating reduce harmful emissions and enhance safety. The included 2-port mounting inlet simplifies module installation and ensures dust protection.

Suitable for

• Outdoor Ethernet/data connections
• Surface-mounted network points on walls or facades
• Keystone module installations (up to 2 modules)
• Temporary or permanent outdoor cabling endpoints

Key specifications

• Brand: DIGITUS
• Model / MPN: DN-93844-OD-2
• Included mounting inlet: DN-93844-OD-1 (for 2 Keystone modules)
• Protection rating: IP44
• Material: ABS thermoplastic, halogen-free (LSZH), UL 94V-0
• Temperature range: -20° to +70°C
• Dimensions: 86 × 58 × 75 mm (W × H × D)
• Made in Germany

How to use

Mount the box on a clean, flat surface using screw fastening. Install the two Keystone modules into the supplied 2-port mounting inlet (DN-93844-OD-1), then insert the inlet into the enclosure and secure it. Route the data cable through the vertical outlet, terminate the cable to the Keystone modules, and close the hinged lid to provide dust protection and weather resistance. Use the integrated labelling field to mark the connections as required.

Recommendations

For reliable outdoor performance, ensure cable entries are sealed and mounting screws are tightened to prevent water ingress. Verify module compatibility with standard Keystone jacks and avoid exposure to temperatures outside the specified -20° to +70°C range.
