Pinta-asennusrasia Telegärtner H02000A0072 68x64

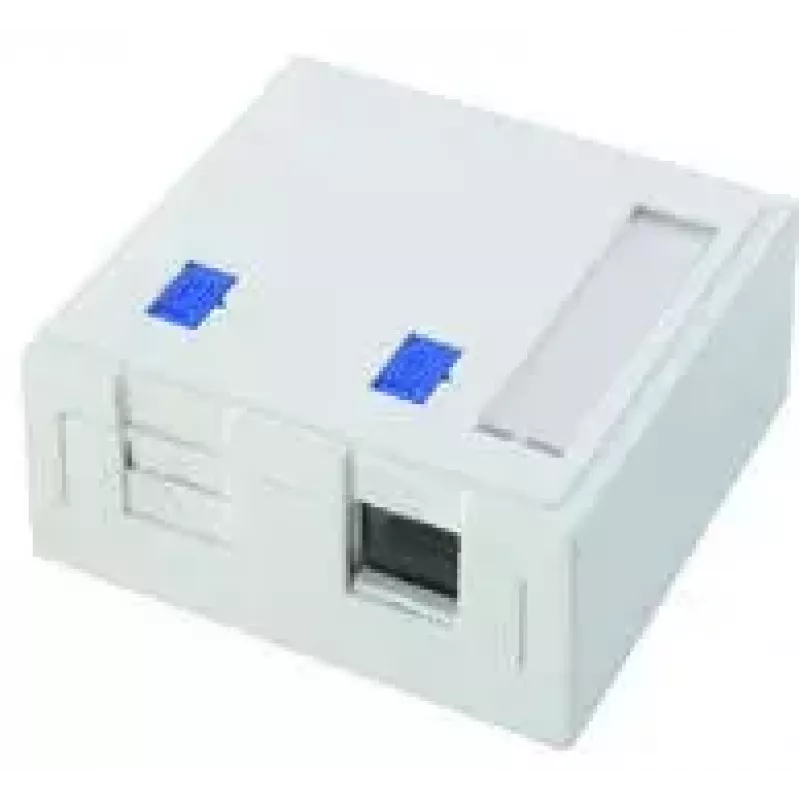

Telegärtner Surface Mounting Box H02000A0072 (68x64 mm) is a compact double-gang enclosure for surface installation of network connectors and modules. It accepts AMJ and UMJ modules and couplers without requiring additional adapters and includes a shutter and marking window. Modules and adaptors are not included.

Advantages

The mounting box provides a space-saving solution for surface-mounted network terminations and supports flexible module use thanks to compatibility with AMJ and UMJ modules and couplers. Its included shutter protects unused ports and the marking window allows clear labelling. The compact 68x64 mm footprint fits common installation scenarios in offices and homes.

Suitable for

• Surface-mounted network outlets in offices
• Home network termination points
• Retrofit installations where wall cavities are not available
• Locations requiring clear port labelling

Key specifications

• Brand: Telegärtner
• Model / MPN: H02000A0072
• EAN: 4018359316303

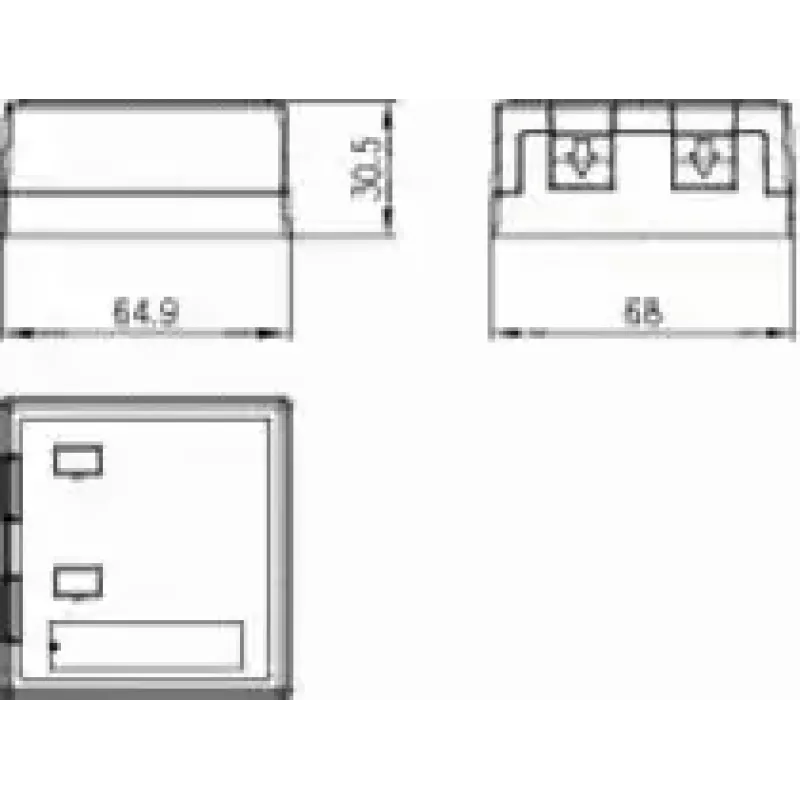

• Dimensions: 68 x 64 mm (double gang)
• Includes: shutter and marking window
• Modules/adaptors: not included; compatible with AMJ and UMJ modules and couplers

How to use

Mount the box onto a clean surface using appropriate screws or adhesive for the substrate. Insert compatible AMJ or UMJ modules/couplers into the apertures and secure them according to the module manufacturer’s instructions. Use the shutter to close unused openings and place a label in the marking window to identify connected lines.

Recommendations

For reliable installation, use mounting hardware suitable for the wall material and verify module compatibility with AMJ/UMJ standards. Keep modules dry and avoid exposing the box to direct sunlight or extreme temperatures to maintain material integrity.
