Pistoke DeLOCK 66688 piirilevytarvike (PCB)

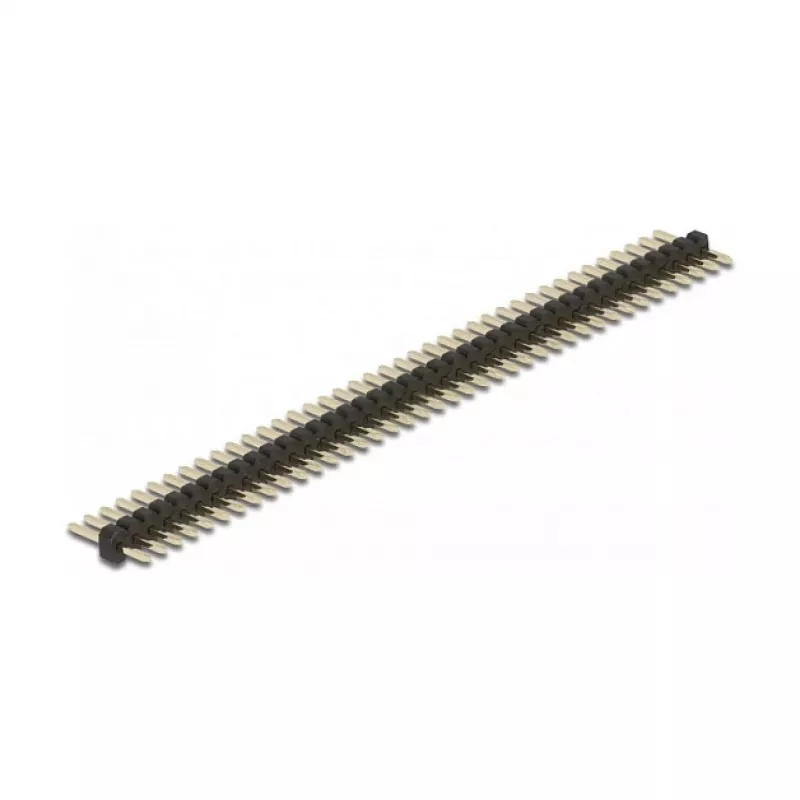

The DeLOCK 66688 pin header is a compact accessory for printed circuit boards (PCBs) designed to provide reliable interconnections between individual boards or modules. Constructed from metal and plastic with a black and metallic finish, this pin header suits a range of electronic applications and assembly tasks.

Advantages

The metal contacts ensure stable electrical connections while the plastic housing provides insulation and mechanical support. Its small footprint (50.8 mm length, 6.3 mm depth, 2 mm height) makes it suitable for space-constrained PCB layouts. The standardized pin header format simplifies integration into DIY projects and professional assemblies.

Suitable for

• Connecting stacked or adjacent printed circuit boards
• Prototyping and DIY electronics projects
• Repair and modification of electronic devices

Key specifications

• Brand: DELOCK
• Manufacturer part number (MPN): 66688
• EAN: 4043619666881
• Material: metal contacts, plastic housing
• Colour: black and metallic
• Length: 50.8 mm
• Depth: 6.3 mm
• Height: 2 mm
• Category: Printed circuit board (PCB) accessory

How to use

Align the pin header with the corresponding through-holes or connector pads on the PCB and solder the metal pins to ensure secure electrical and mechanical contact. For reliable results, clean the board, apply appropriate solder and flux, and allow joints to cool undisturbed. Verify pin orientation and spacing before soldering to match the mating connector or board layout.

Recommendations

Use proper ESD precautions when handling the pin header and work on a stable soldering surface. Select soldering temperature and time appropriate for the PCB and header materials to avoid damage.
