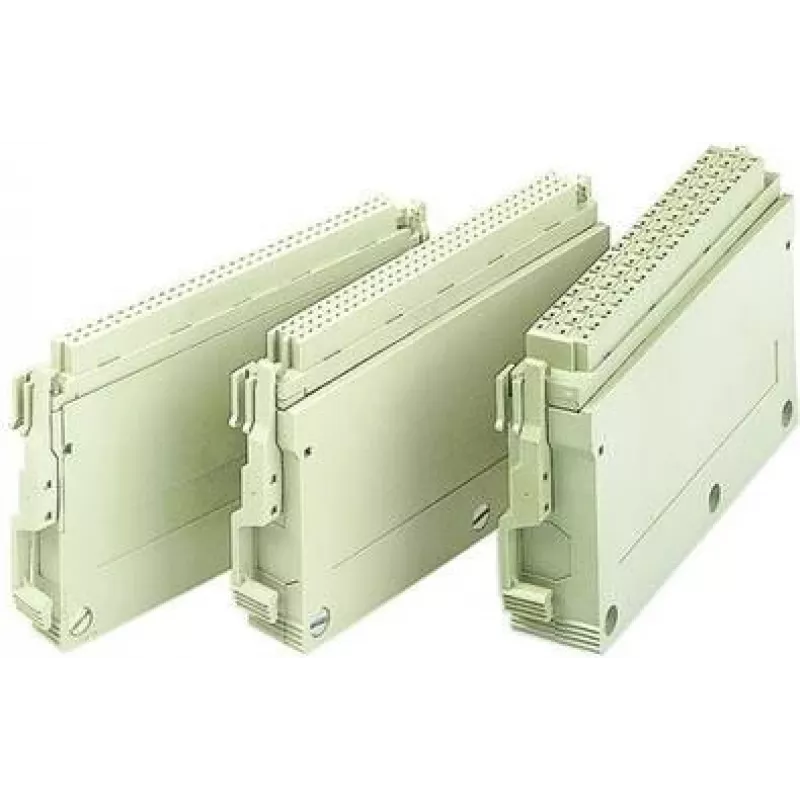

Pistokeliittimen kotelo Harting 09030960501, 15 mm

Harting 09030960501 connector shell housing, 15 mm, is a protective outer housing designed for industrial rectangular connectors. It provides mechanical protection and a compact profile for panel- or chassis-mounted connections in control cabinets, machinery and automation systems where a 15 mm shell dimension is required. The housing serves as the protective enclosure that secures inserts, supports mounting and helps maintain contact integrity under mechanical stress.

Advantages

The Harting shell housing offers robust mechanical protection in a compact 15 mm form factor without adding unnecessary bulk. It supports secure mounting of rectangular connectors and contributes to reliable connection points in industrial environments. Materials and design focus on shielding the connector insert from mechanical impact and ensuring alignment during mating operations. Its compatibility with established rectangular connector solutions simplifies replacement and integration into existing installations.

Suitable for

• Panel and chassis mounting in control cabinets
• Machine tool and automation system connections
• Applications requiring a compact 15 mm rectangular shell
• Environments needing mechanical protection for connector inserts

Key specifications

• Housing type: rectangular shell housing for industrial connectors
• Shell dimension: 15 mm
• Function: protective outer enclosure and mounting support for connector inserts
• Intended use: panel/chassis installation in industrial equipment and automation

How to use

Install the Harting 15 mm shell housing by aligning it with the panel or chassis cut-out intended for rectangular connector mounting. Secure the housing using the recommended mounting hardware for your application, then insert and fix the connector insert according to the connector series instructions. Verify correct alignment and mechanical retention before routing cables and performing electrical tests. Follow standard practices for strain relief and grounding where applicable.

Recommendations

Use the housing in combination with matching rectangular connector inserts and mounting accessories from the same connector family. Ensure the panel cut-out and mounting hardware are compatible with a 15 mm shell to achieve proper sealing and mechanical stability. Inspect the housing for damage before installation and replace if deformed or cracked.
