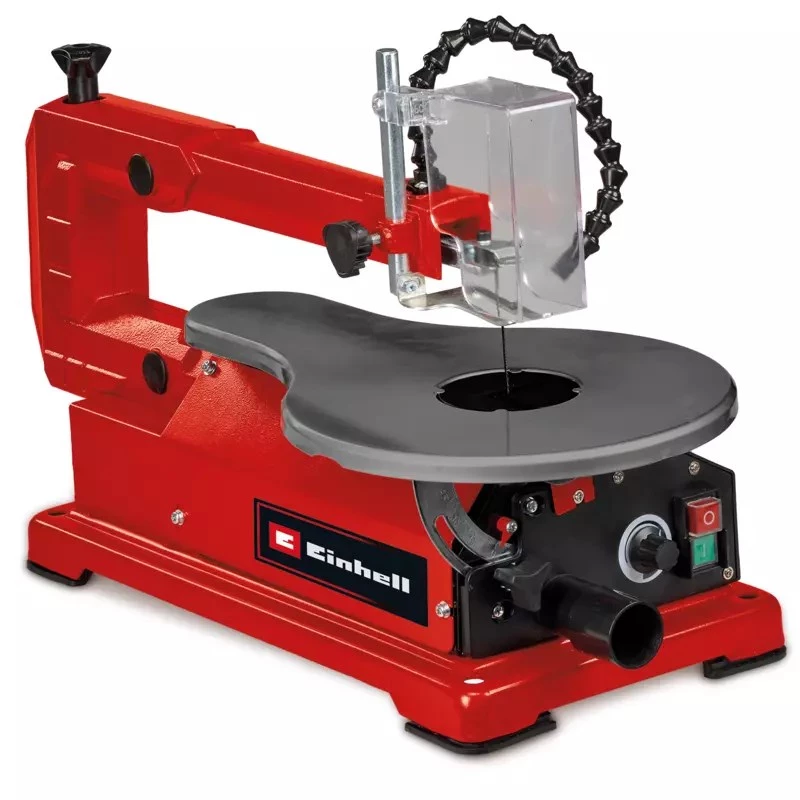

Pistosaha Einhell TC-SS 406 E

The Einhell scroll saw TC-SS 406 E is designed for detailed sawing and model making. The saw has electronic speed regulation, a robust steel work table that tilts up to 47°, a built-in blower for a clear view of the cutting line, a clamp to secure the workpiece, and a dust extraction connection (36 mm). Two saw blades are supplied with the unit.

Advantages

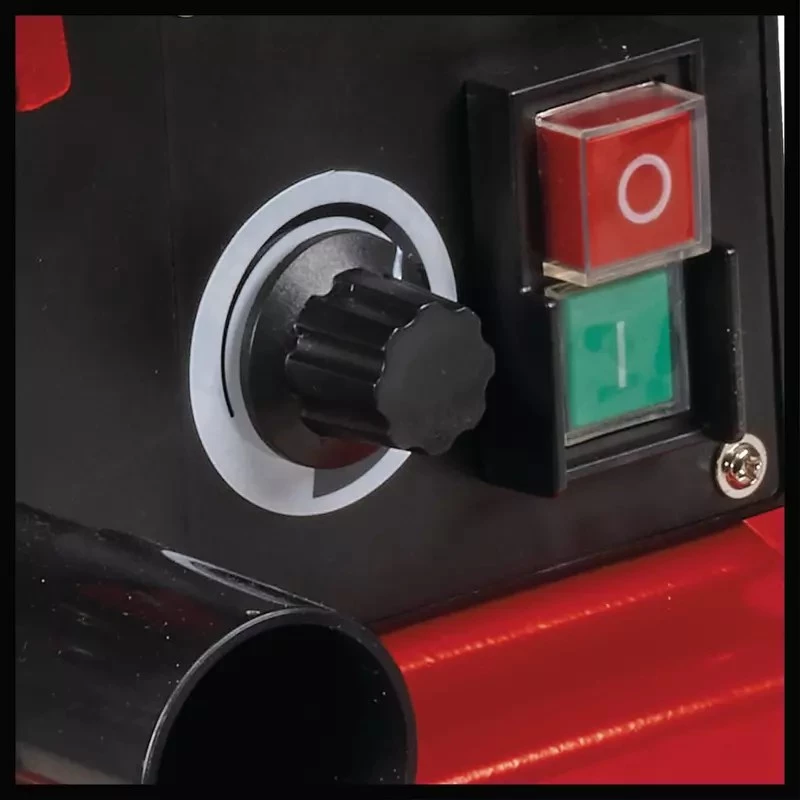

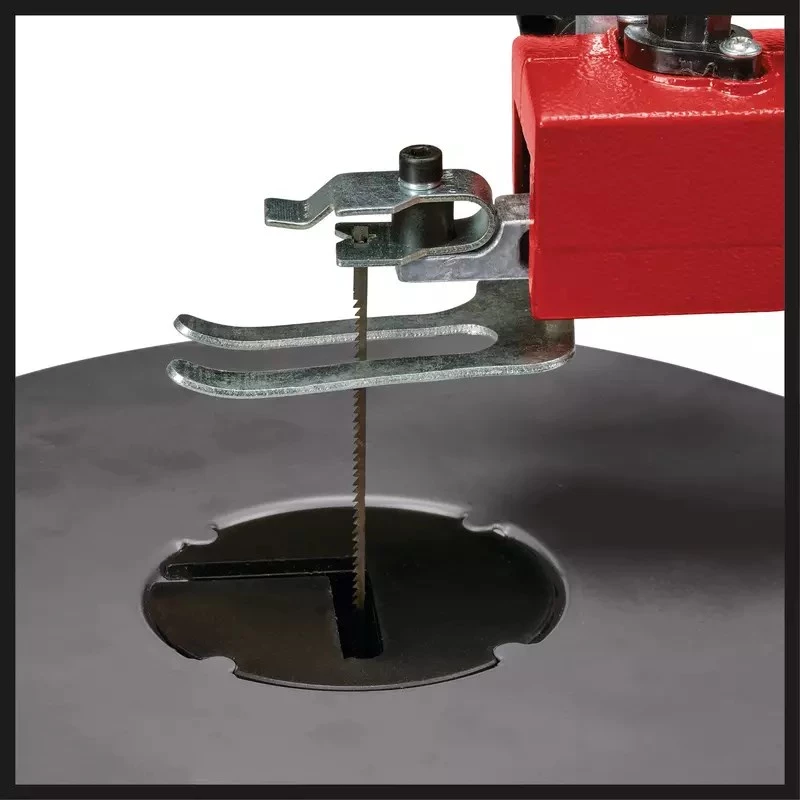

The compact, solid frame provides stable positioning while remaining suitable for mobile use. Adjustable speed allows the cutting speed to be matched to the material. The tilting steel work table enables angled cuts, and the integrated blower keeps the work area free of dust and shavings. The clamping device enables quick blade changes and the workpiece holder ensures safe, precise guidance of the workpiece.

Suitable for

• Model making and hobby woodworking
• Intricate and filigree sawing tasks
• Angled cuts up to 47°
• Workshops requiring dust extraction connection

Key specifications

• Power: 120 W
• Maximum cutting height: 50 mm

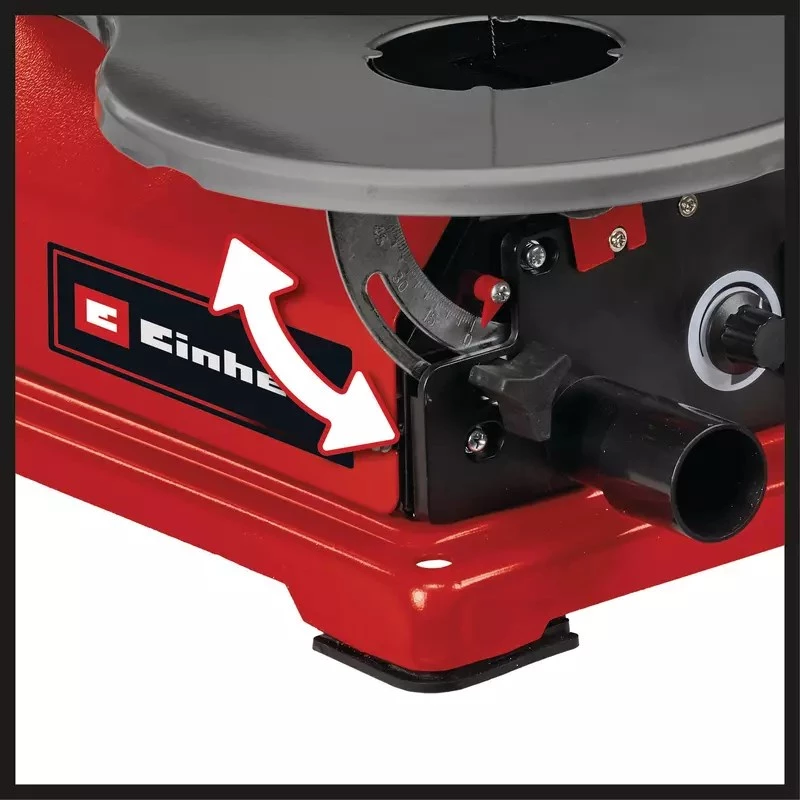

• Tilting work table: up to 47°

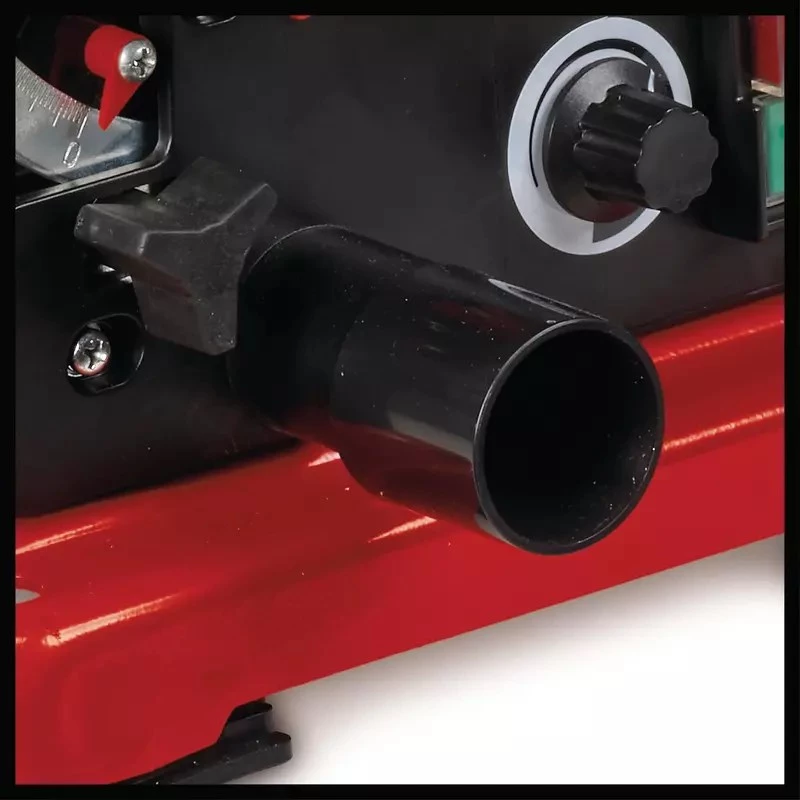

• Dust extraction connection diameter: 36 mm
• Weight: 12.15 kg
• Includes: two saw blades

How to use

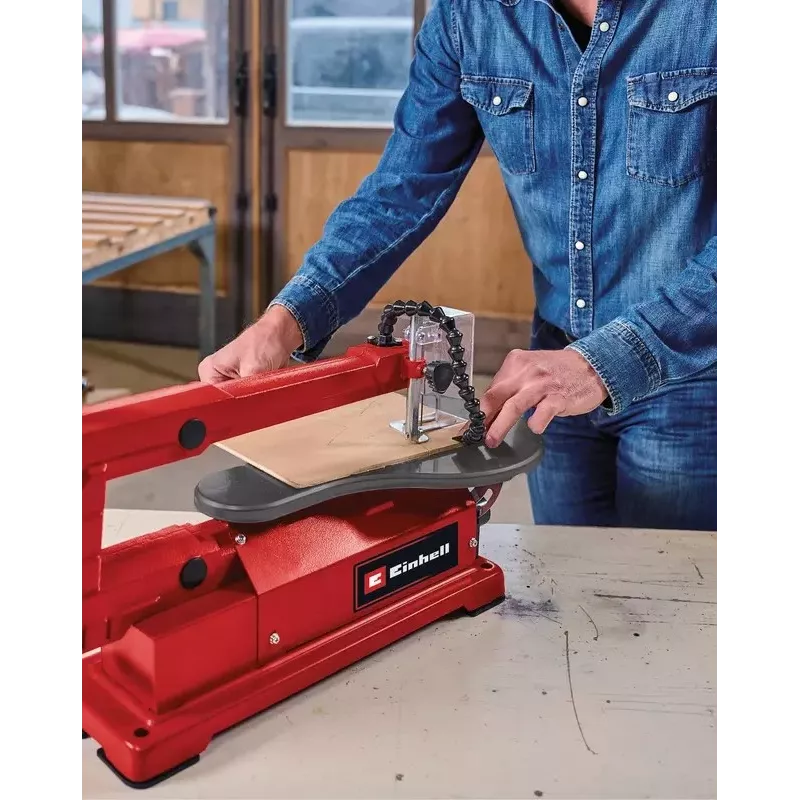

Place the scroll saw on a stable surface or secure it to a workbench. Fit an appropriate saw blade using the clamping device, ensuring it is tensioned and seated correctly. Adjust the speed control according to the material, position the workpiece under the workpiece holder and guide it gently against the blade. For angled cuts, tilt the work table to the desired angle using the underside angle gauge. Use the integrated blower to clear the cutting line while working and connect a vacuum cleaner to the 36 mm dust port if needed to remove debris.

Recommendations

Use blades appropriate for the material (T-shank or round blades as supported), set the speed to suit the workpiece, secure small parts with the workpiece clamp, and connect dust extraction for cleaner operation. For stationary setups, fasten the saw to a bench to improve stability.
