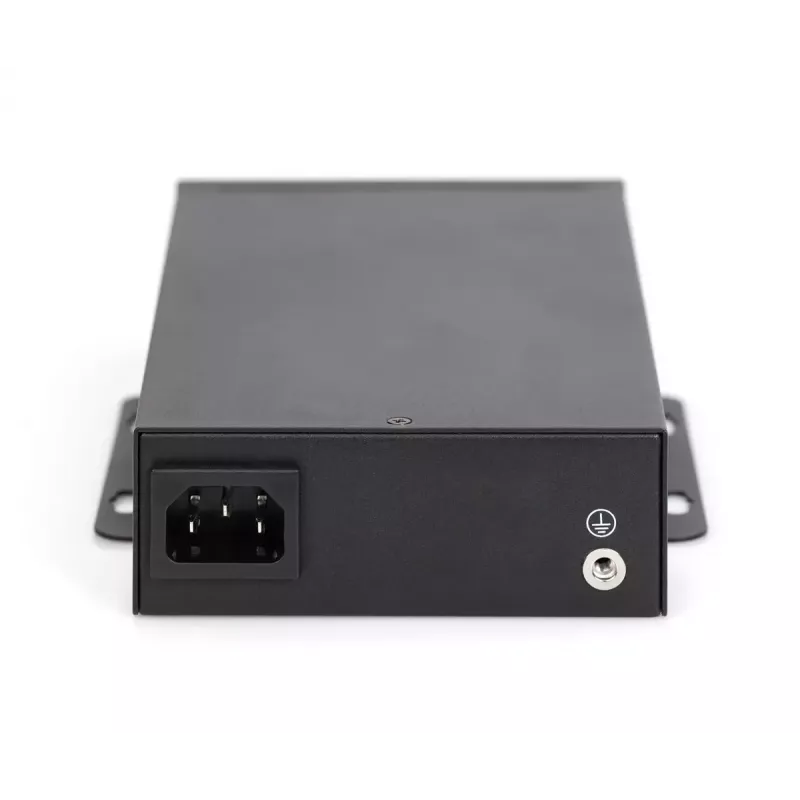

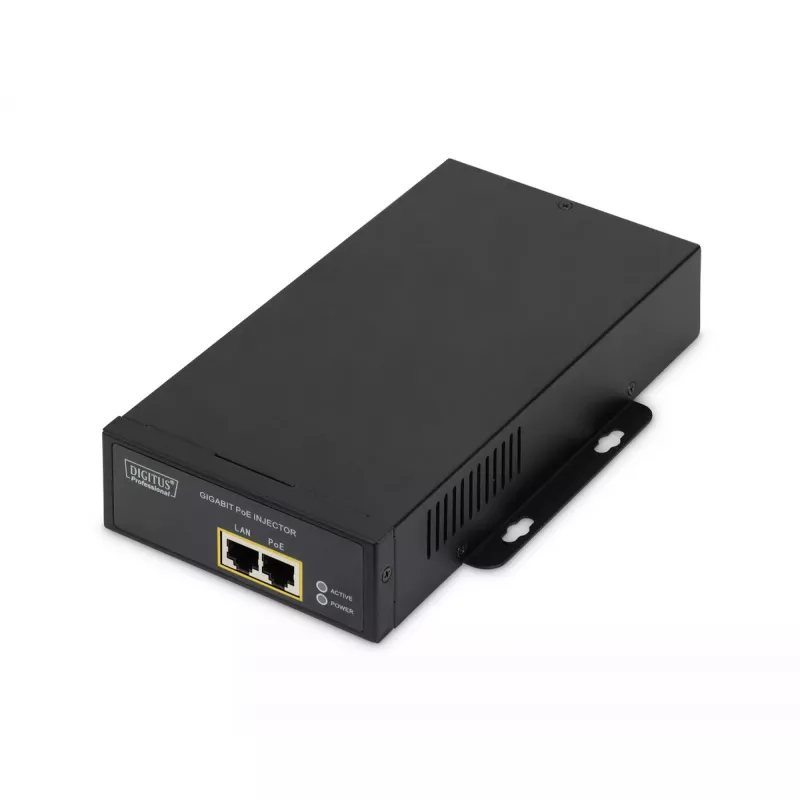

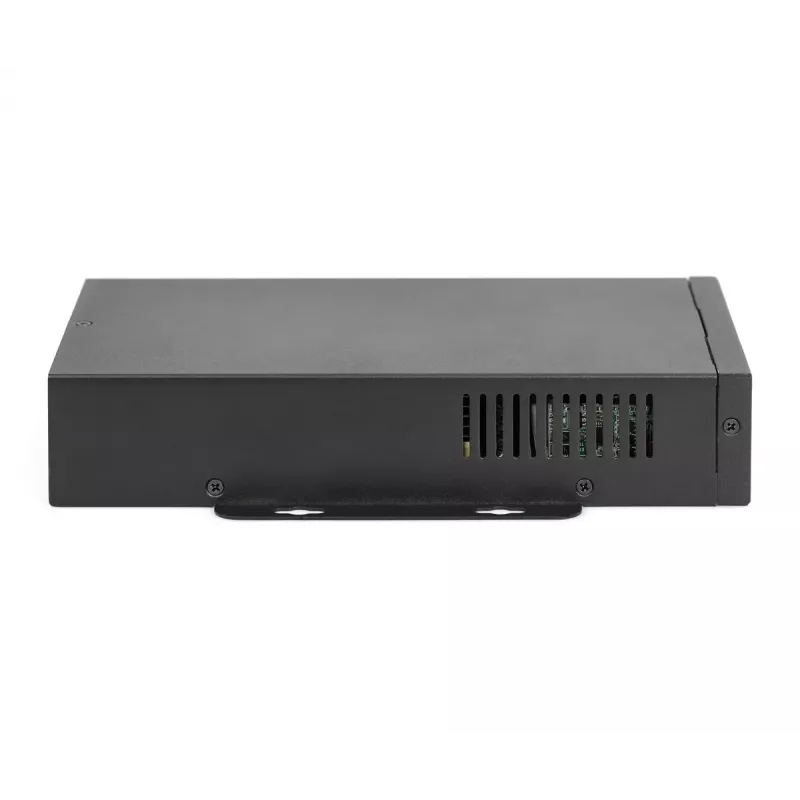

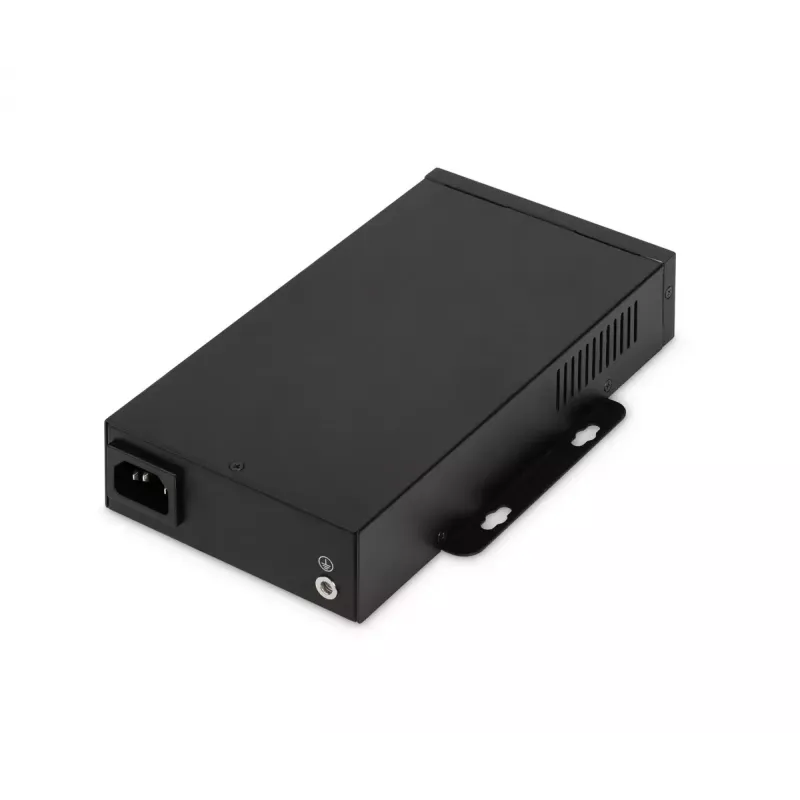

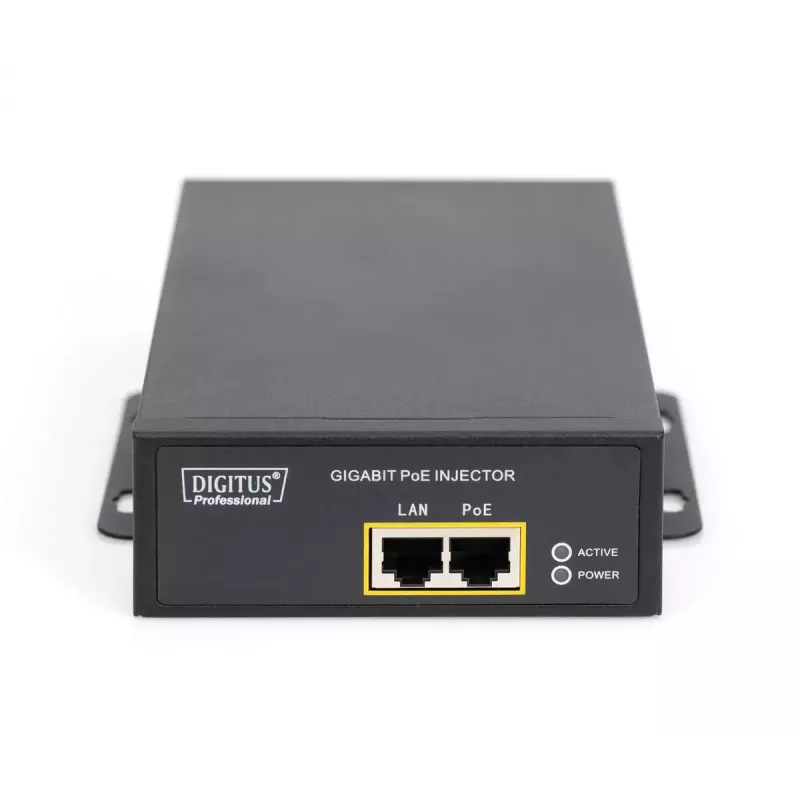

PoE-injektori Digitus DN-95107

The Digitus PoE Injector DN-95107 supplies power and data over a single Ethernet cable, reducing the need for separate power wiring when installing PoE-compatible devices. Supporting the IEEE 802.3af/at standard, this Gigabit injector delivers up to 95 W output at 55 V and provides 10/100/1000 Mbps network speeds in a compact black enclosure (214 x 134 x 41 mm).

Advantages

The injector minimizes cabling by using a single Ethernet connection for both power and data, is fully compliant with 802.3af/at PoE standards, and supports Gigabit network speeds. With an output of up to 95 W and 55 V PoE voltage, it can power a wide range of PoE devices while keeping installation simple and flexible.

Suitable for

• Wireless access points (APs)
• IP phones
• IP network cameras
• Other PoE-compatible devices requiring up to 95 W

Key specifications

• Model: Digitus DN-95107
• PoE standard: IEEE 802.3af/at
• Output power: up to 95 W
• PoE voltage: 55 V
• Data rate: 10/100/1000 Mbps (Gigabit)
• Ethernet ports (RJ-45): 2
• Colour: Black
• Dimensions: 214 x 134 x 41 mm

How to use

Connect the injector to your network switch or router using the data input Ethernet port, then connect the PoE output port to the PoE-compatible device (for example an IP camera or access point). Plug the injector into mains power. The device will receive both data and power over the connected Ethernet cable; no separate power supply to the device is required.

Recommendations

Use a Cat5e or higher rated Ethernet cable for reliable Gigabit operation and ensure the connected device's power requirements do not exceed the injector's 95 W output. Install the injector in a dry, ventilated location and follow local electrical safety regulations.
