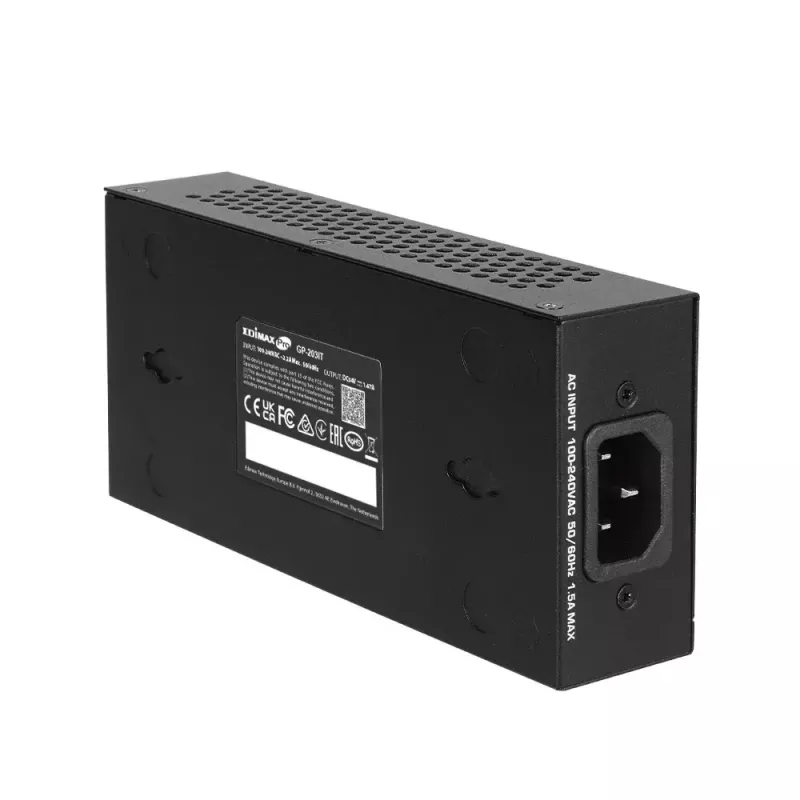

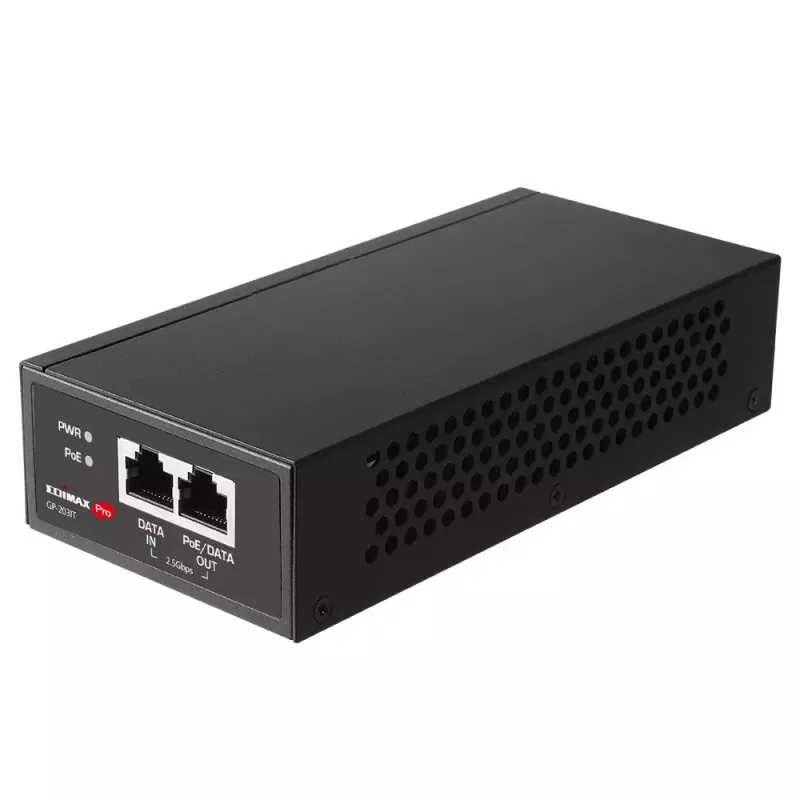

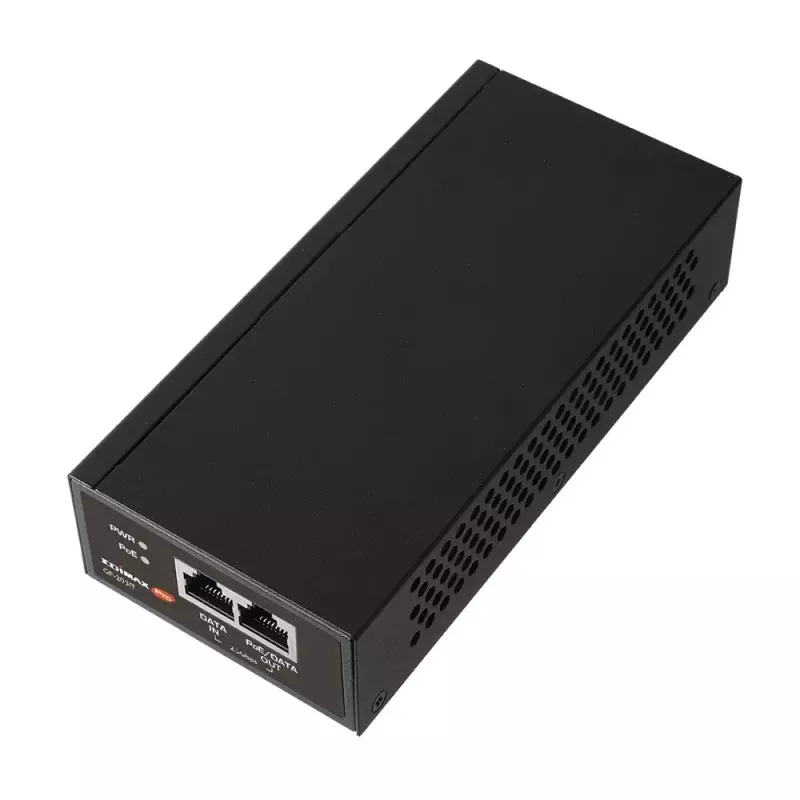

PoE-sovitin Edimax GP-203IT 2,5 Gigabit Ethernet 90W

The Edimax GP-203IT PoE adapter supplies up to 90W of power over Ethernet and supports 2.5 Gigabit Ethernet data rates. Housed in a robust metal case, it connects directly to mains power (100–240V) without an external adapter and provides two RJ-45 ports (input and PoE output) for powering and linking devices up to 100 meters away. The adapter is compatible with IEEE 802.3af, 802.3at and 802.3bt standards and is intended for stable, high-speed PoE deployment where higher power and faster LAN speeds are required.

Advantages

The built-in 90W power supply removes the need for an external power brick, simplifying installation and saving space. 2.5 Gigabit input and output ports deliver faster and more reliable connections for bandwidth-sensitive devices. The unit supports PoE, PoE+ and PoE++ standards to power a wide range of devices and can deliver power over a single LAN cable up to 100 meters. A metal housing increases durability, and a wall-mountable design enables flexible placement.

Suitable for

• IP surveillance cameras requiring higher power and bandwidth
• Wireless access points and Wi‑Fi 6/6E access infrastructure
• Digital signage and information displays in public areas
• PoE-enabled POS systems, kiosks, RFID readers and access control panels
• Thin clients, sensors and alarms located away from AC outlets

Key specifications

• Model: Edimax GP-203IT
• Maximum PoE output: 90W (supports IEEE 802.3af/at/bt)
• Ethernet speeds: 10/100/1000/2500 Mbps (2.5 Gigabit)
• Ports: 2 x RJ-45 (1 input, 1 PoE output)
• Power input: 100–240V AC
• Cable distance: up to 100 m (328 ft) for data and power
• Housing: metal; colour: black
• Weight: 0.601 kg

How to use

Connect the injector to mains power using the included power cord, plug the network switch or router into the input RJ-45 port, and attach the PoE-enabled device (camera, access point, signage player) to the PoE output port. The device will receive both data and power over a single Ethernet cable. No additional software configuration is required; basic plug-and-play operation is supported. Ensure cables and connectors meet category requirements for 2.5 Gbps operation.

Recommendations

For reliable long-distance operation, use high-quality shielded or unshielded Ethernet cabling rated for the intended environment and keep total cable runs within 100 m. Verify device PoE class and power requirements before connection to ensure compatibility with the 90W output and supported IEEE standards.
