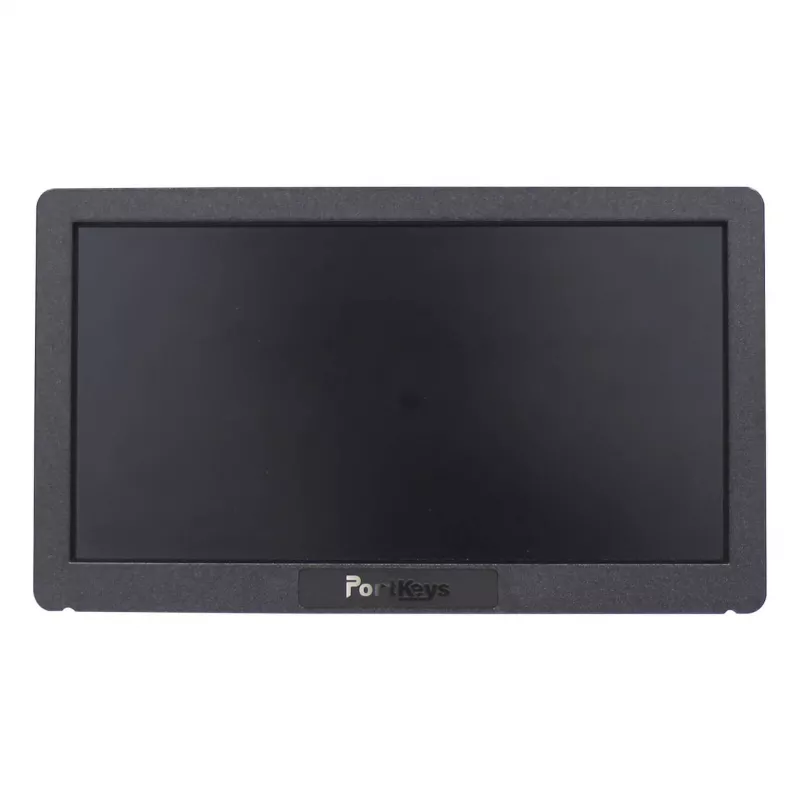

Portkeys HD7H 7" 1920x1200 IPS LCD -näyttö 3D LUT, waveform, vectorscope

The Portkeys HD7H is a professional 7-inch on-camera monitor designed for filmmakers and videographers who demand accurate exposure and focus tools. With a bright 1000 cd/m² IPS LCD panel and 1920x1200 resolution, it delivers crisp, vivid images even in challenging lighting conditions. The monitor supports 4K DCI input via HDMI and offers comprehensive monitoring aids including waveform, vectorscope, histogram, peaking, false color, zebra, and anamorphic de-squeeze. User-loadable 3D LUTs enable precise color grading on set. Powered by NP-F batteries or DC 7-24V, the HD7H is built for reliable field use.

Advantages

High brightness (1000 nits) ensures visibility outdoors. Full HD resolution (1920x1200) provides sharp image detail. Extensive monitoring tools help achieve accurate exposure and focus. 3D LUT support allows real-time color preview. Compact and lightweight design with multiple mounting points.

Suitable for

• DSLR and mirrorless camera operators
• Professional videographers and cinematographers
• Studio and field production
• Color grading and exposure monitoring

Key specifications

• Display: 7-inch IPS LCD, 1920x1200, 16:10
• Brightness: 1000 cd/m²
• Contrast Ratio: 1000:1
• Viewing Angle: 178° (H/V)
• Video Input/Output: 1 x HDMI Type A each
• Audio Output: 3.5mm headphone jack
• Power: DC 7-24V or NP-F battery plate
• Power Consumption: 9W
• Max Input Resolution: 4K DCI (4096x2160p @ 24Hz)
• LUT Support: 3D LUTs (user-loadable)
• Monitoring Tools: Waveform, Vectorscope, Histogram, Peaking, False Color, Zebra, Zoom, Anamorphic De-squeeze
• Mounting: 3 x 1/4"-20 threads
• Construction: ABS plastic
• Operating Temperature: -10°C to 50°C

Recommendations

The Portkeys HD7H is an excellent choice for videographers who need a reliable, feature-rich monitor without breaking the bank. Its high brightness and comprehensive toolset make it ideal for both indoor and outdoor shoots.
