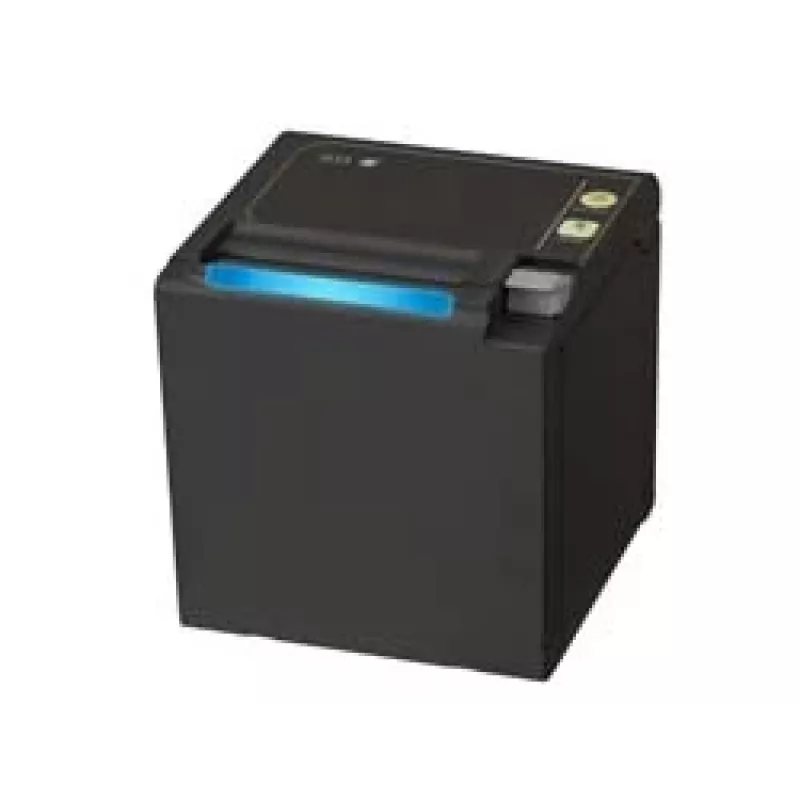

POS-tulostin Seiko Instruments RP-E10-K3FJ1-S-C5

The Seiko Instruments RP-E10-K3FJ1-S-C5 is a wired thermal POS printer designed for retail and hospitality environments. It offers a compact cube form factor (129 mm x 129 mm x 129 mm), supports 58 mm paper width with a maximum roll diameter of 83 mm, and prints at up to 350 mm/s with a 203 x 203 DPI resolution. The unit includes built-in barcode support (including QR Code and EAN13), a large multi-colour LED indicator and a high-durability autocutter rated for 2 million cuts. The printer is supplied in black and carries FCC, CE, VCCI and RCM certifications.

Advantages

Compact dimensions and top-exit receipt path reduce counter footprint and improve paper handling in tight spaces. High print speed and 203 x 203 DPI resolution allow fast, legible receipts. The durable autocutter and long-life print mechanism (specified for 150 km of printing) lower maintenance needs. Built-in barcode support and a range of drivers and utility software simplify integration with POS systems. The multi-colour LED provides clear status feedback.

Suitable for

• Retail checkout counters
• Cafés and quick-service restaurants
• Small to medium point-of-sale installations
• Mobile or compact kiosk solutions where a wired thermal POS printer is required

Key specifications

• Model: Seiko Instruments RP-E10-K3FJ1-S-C5
• Print technology: Thermal
• Resolution: 203 x 203 DPI
• Maximum print speed: 350 mm/sec
• Paper width supported: 58 mm
• Max roll diameter: 83 mm
• Autocutter life: 2,000,000 cuts
• Mechanism life: 150 km
• Connectivity: Wired (no Wi‑Fi, no Ethernet LAN)
• Colour: Black
• Weight: 1.3 kg
• Certifications: FCC, CE, VCCI, RCM

How to use

Connect the RP-E10 to a compatible POS system using the supplied interface cable and install the appropriate driver or utility software for your platform. Load 58 mm thermal paper into the top-exit compartment following the paper-feed direction markings, close the cover, and feed the paper to the cutter. Use the printer driver or POS application to configure page settings and barcode formats as needed. Power on the unit and verify status using the multi-colour LED indicator before printing receipts.

Recommendations

Use only recommended thermal paper with appropriate width and thickness to ensure reliable feeding and to maximise cutter life. Regularly check and clean the paper path and print head according to the manufacturer's instructions to maintain print quality and long-term reliability.
