POS-tulostin Seiko Instruments RP-E11-K3FJ1-S-C5

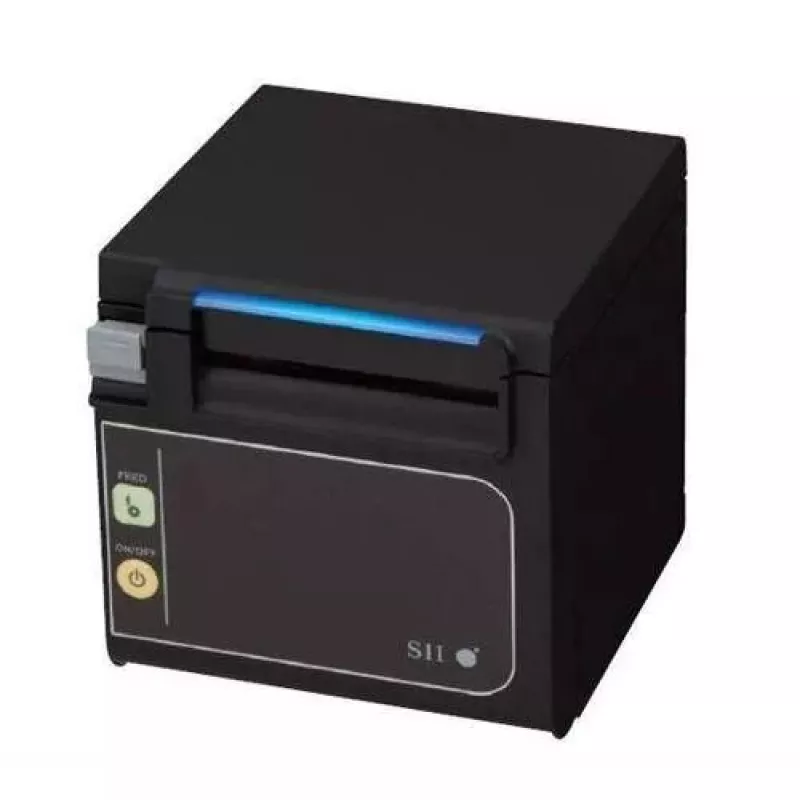

The Seiko Instruments RP-E11-K3FJ1-S-C5 is a compact, wired thermal POS receipt printer designed for countertop or limited-space environments. With a cube-sized footprint of 129 mm × 129 mm × 129 mm and a sleek black finish, it supports 58 mm paper rolls (maximum roll diameter 83 mm) and produces prints at a resolution of 203 × 203 dpi. Built-in barcode printing (including QR Code and UPC) and a large multi-color LED status indicator make it suitable for retail and hospitality points of sale.

Advantages

This POS printer offers a high maximum print speed of 350 mm/s and high reliability with a print head life rated to 150 km and an autocutter durability of 2 million cuts. It includes a range of drivers and utility software for easy integration with POS systems and provides clear status feedback via a multi-colour LED. FCC, CE, VCCI and RCM certifications ensure compliance with common international standards.

Suitable for

• Retail point-of-sale receipt printing
• Small cafés and restaurants with limited counter space
• Ticketing and queue management where compact size is required
• Systems requiring on-printer barcode (QR, UPC) printing

Key specifications

• Model: Seiko Instruments RP-E11-K3FJ1-S-C5
• Print technology: Thermal
• Resolution: 203 × 203 dpi
• Max print speed: 350 mm/sec
• Supported paper width: 58 mm
• Max paper roll diameter: 83 mm
• Autocutter durability: 2,000,000 cuts
• Print head reliability: 150 km
• Connectivity: wired (specific interface depends on model/configuration)
• Weight: 1.3 kg
• Colour: Black
• Certifications: FCC, CE, VCCI, RCM

How to use

Place the RP-E11 on a stable counter surface and connect it to your POS system using the supplied interface cable. Load a 58 mm thermal paper roll with the paper feeding out from the front exit, then close the cover. Install the appropriate driver and utility software on your POS terminal following the included instructions, configure paper size and barcode settings as needed, and perform a test print to verify operation. Use the multi-colour LED to monitor status and resolve simple errors indicated by the manufacturer’s codes.

Recommendations

Use only compatible thermal paper rolls with the recommended width (58 mm) and a maximum diameter of 83 mm. Regularly clean the print head according to the maintenance instructions to preserve print quality and extend the life of the unit and autocutter.
