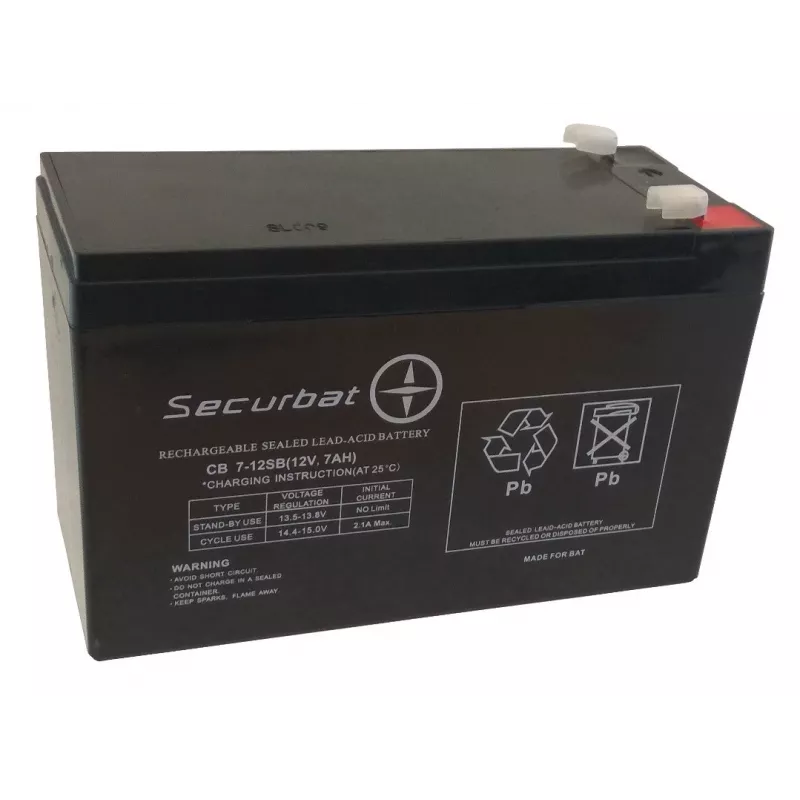

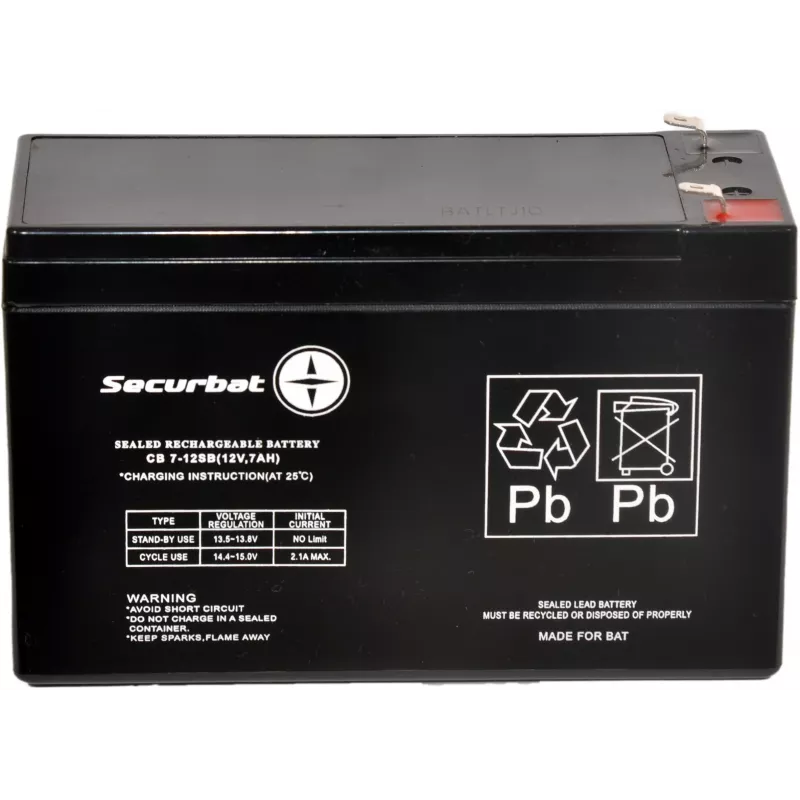

POWERBAT SECURBAT 7-12 AGM -akku 12V 7Ah

The POWERBAT SECURBAT 7-12 is a high-quality AGM (Absorbent Glass Mat) battery designed for reliable backup power in security, alarm, and emergency systems. With a nominal voltage of 12V and a capacity of 7Ah (C20 rate), this maintenance-free VRLA battery delivers consistent performance and long service life.

Advantages

Sealed, valve-regulated design eliminates the need for water refilling and allows operation in any position (except continuous inverted use). Low self-discharge rate of less than 3% per month at 25°C ensures readiness even after prolonged storage. The AGM technology provides excellent discharge characteristics and high reliability.

Suitable for

• UPS systems
• Alarm and security systems
• Emergency lighting
• Medical devices
• Backup power applications

Key specifications

• Battery Technology: AGM (Absorbent Glass Mat)
• Nominal Voltage: 12V
• Nominal Capacity: 7 Ah (C20 rate)
• Terminal Type: F1 (Faston Tab 187)
• Design Life (Float): 5 years (at 25°C)
• Internal Resistance: Approx. 25 mΩ (fully charged, 25°C)
• Max. Discharge Current: 105 A (5 sec)
• Max. Charging Current: 2.1 A
• Float Charging Voltage: 13.5 - 13.8 VDC / unit (at 25°C)
• Cycle Charging Voltage: 14.4 - 15.0 VDC / unit (at 25°C)
• Operating Temperature Range (Discharge): -15°C to 50°C
• Operating Temperature Range (Charge): -15°C to 40°C
• Operating Temperature Range (Storage): -15°C to 40°C
• Self-Discharge Rate: Less than 3% per month at 25°C
• Container Material: ABS (UL94-HB)
• Maintenance: Maintenance-Free
• Orientation: Operates in any position (except continuous inverted use)
• Safety Features: Valve Regulated Lead-Acid (VRLA)
• Certifications: CE, ISO9001

Recommendations

For optimal performance and longevity, use a compatible charger with the recommended float voltage of 13.5-13.8 VDC. Store in a cool, dry place. Ensure proper ventilation during charging.
