Pöytäliitäntärasia tyyppi F Kindermann 7492000084

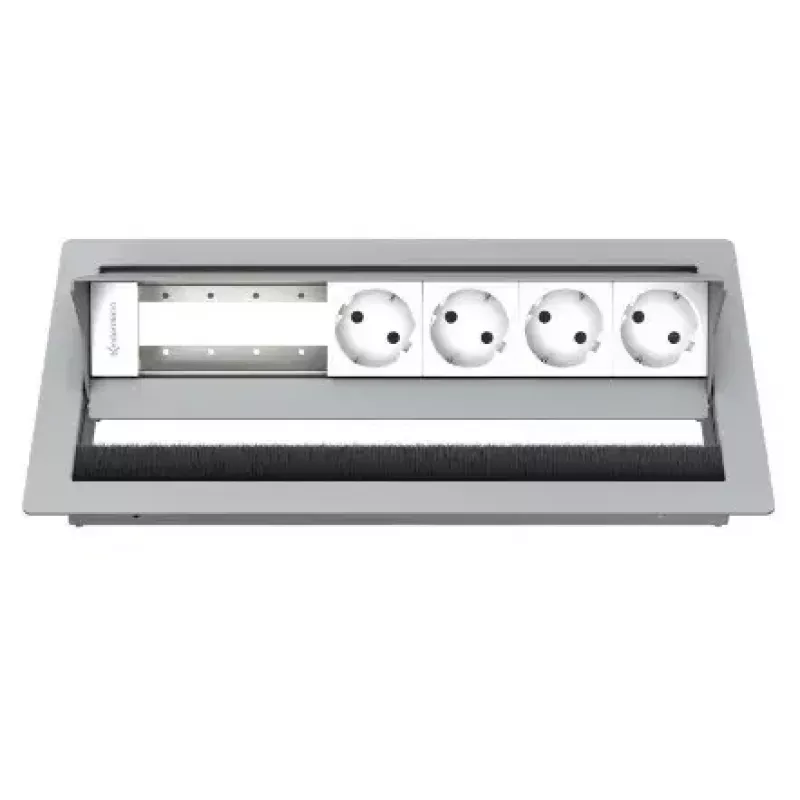

The Kindermann 7492000084 outlet box is a desktop casing for six inserts, made of powder-coated steel in RAL 9006 silver. It is premounted with four mains sockets and two empty modules and supports individual configuration with Konnect flex 45 adapter plates. With dimensions suitable for desktop integration and a compact installation depth of 65 mm, the unit is designed for tidy power access and flexible media connections on work surfaces up to 40 mm thick.

Advantages

Quick click mounting enables straightforward installation from above, while level-mounted interfaces provide a homogeneous appearance and allow flush desktop integration. The casing is compatible with media control modules, USB chargers and other Konnect flex 45 components, and features a mains connection via a 3-pin GST 18 plug for simplified wiring. The powder-coated steel construction offers durable, professional-looking housing in silver.

Suitable for

Key specifications

How to use

Cut an opening in the desktop according to the product dimensions and insert the outlet box from above. Secure the unit using the click mounting mechanism provided, configure the empty modules with Konnect flex 45 adapter plates as required and connect the mains supply using the 3-pin GST 18 plug. Ensure the tabletop thickness does not exceed 40 mm and that the installation depth of 65 mm is available beneath the surface.

Recommendations

For safe and reliable operation, verify local electrical regulations and have mains wiring performed by a qualified electrician. Use only compatible Konnect flex 45 modules and avoid overloading the installed mains sockets.
