Pöytäliitäntärasian lisävaruste Kindermann 7448000020

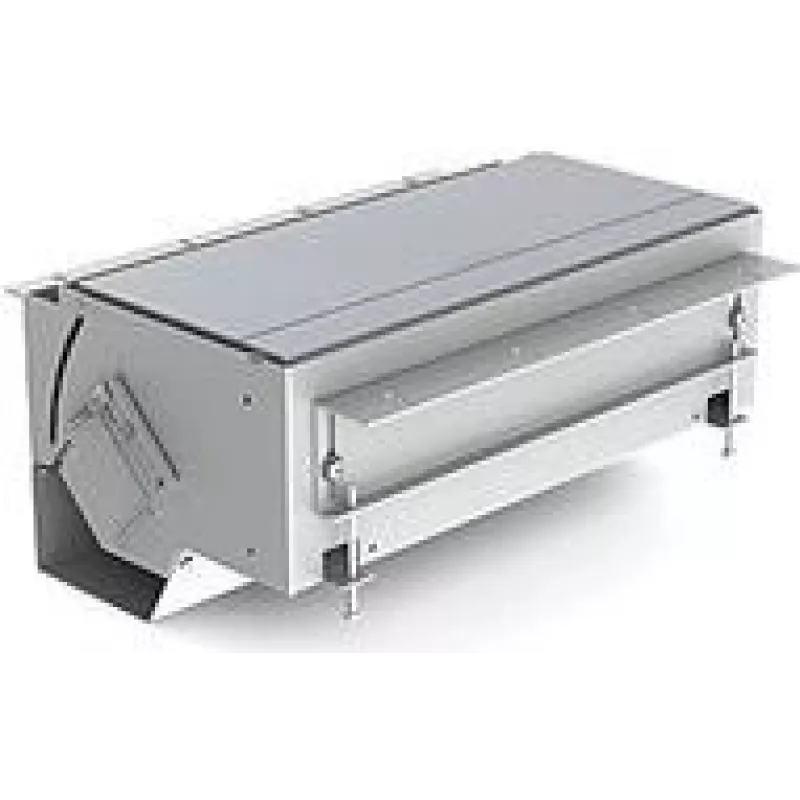

CablePort flex for 6 Adapter Plates (Kindermann 7448000020) is a desktop outlet box accessory made of anodized aluminium. It provides a recessed, durable connection point for mains, communication and AV connections, with a movable flap that allows cable outlet while the lid is closed. The unit includes a field for individual labelling, a large opening and roomy internal space for cables and power supplies. Inner parts are powder-coated in RAL 9006 (silver). Installation depth is approximately 160 mm and it is suitable for desktops 15–40 mm thick. Cutout required: 334 x 193 mm.

Advantages

The anodized aluminium lid offers corrosion resistance and a lightweight but robust structure. The movable flap enables cables to remain connected with the lid closed, while the deep internal space accommodates computer power supplies and excess cable length. Powder-coated inner parts provide a uniform appearance and additional protection. The product is compatible with module panels 7448 000 2xx and can be installed without a mounting frame or with aluminium frame 7448 000 02x.

Suitable for (tasks / use cases)

Key specifications

How to use

Cut a 334 x 193 mm opening in the desktop within the specified thickness range (15–40 mm). Insert the outlet box into the cutout and secure it according to the installation method chosen (without mounting frame or with aluminium frame 7448 000 02x). Fit the appropriate module panel (7448 000 2xx) and route cables through the movable flap to allow lid closure while maintaining cable access. Place power supplies and excess cable inside the housing to keep the desktop surface tidy.

Recommendations

Ensure the cutout dimensions and installation depth are compatible with the desk construction and any under-desk obstacles. Select module panels 7448 000 2xx that match the required mains, communication or AV connectors. For secure installation, follow the mounting frame instructions if using frame 7448 000 02x and avoid overfilling the internal space to prevent strain on cables and connectors.
