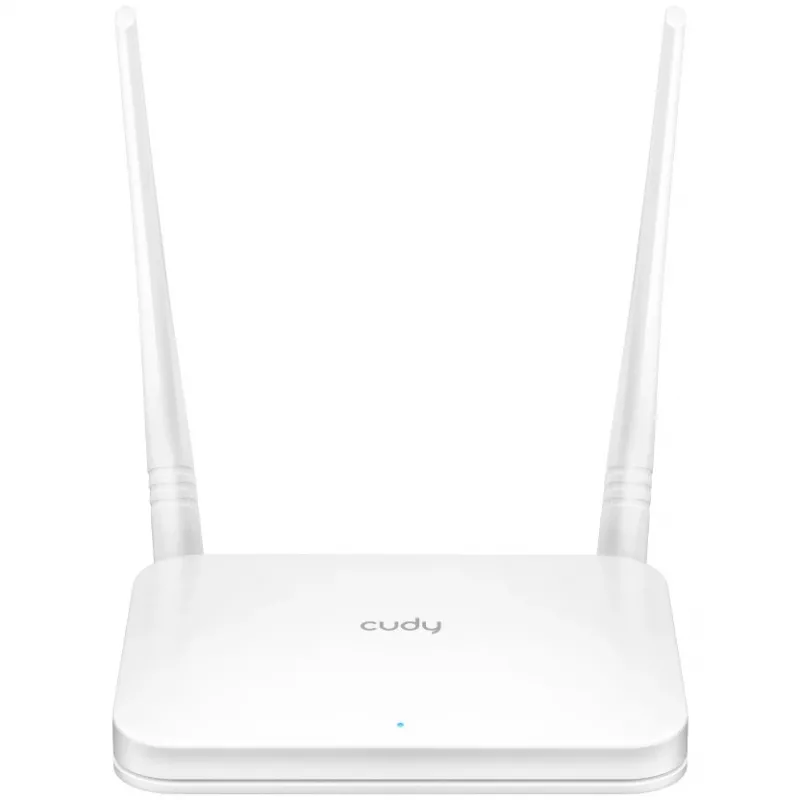

Pöytäreititin Cudy WR300

The Cudy WR300 is a tabletop single-band router operating on the 2.4 GHz band with a maximum WLAN throughput of 300 Mbps. Designed for home use, it offers two Fast Ethernet LAN ports (10/100 Mbps), LED indicators for power and activity, and support for common wireless security protocols to help protect your network.

Advantages

High-gain external antennas improve reception and sensitivity to extend wireless coverage and penetration through walls and floors, effectively increasing range. The router supports guest network isolation, firewall protection, and MAC/IP filtering to separate guests and block unauthorized devices. Simple three-step setup (connect, power, configure) enables quick installation and basic management.

Suitable for

• Small apartments and homes requiring basic wireless internet access
• Streaming and web browsing on multiple devices at 2.4 GHz
• Providing a separate guest Wi‑Fi network for visitors

Key specifications

• Wireless band: 2.4 GHz (single-band)
• Maximum wireless data rate: 300 Mbps

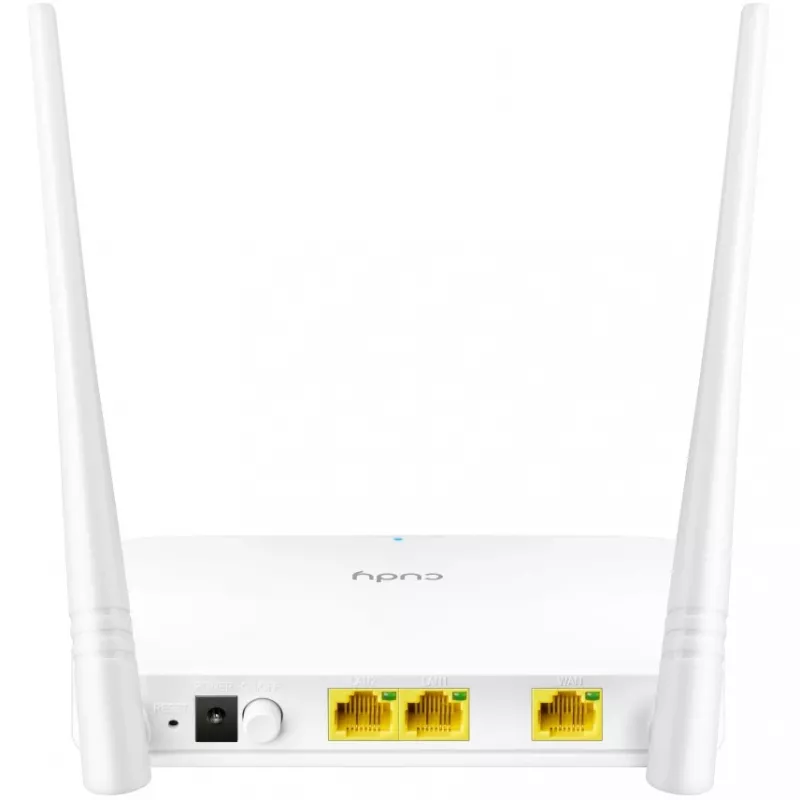

• Ethernet LAN ports: 2 × Fast Ethernet (10/100 Mbps)
• Antennas: high-gain external antennas for extended coverage
• Security protocols: WEP, WPA, WPA2
• LED indicators: power and activity status
• Colour: white

How to use

Place the Cudy WR300 on a stable, elevated surface for best coverage and connect the Internet source to the WAN/Internet port and your wired devices to the LAN ports. Power on the router, open a web browser on a connected device and follow the on-screen setup wizard to configure the wireless network name (SSID), password and security settings. Adjust antenna orientation for optimal signal and, if needed, enable guest network or apply MAC/IP filters and firewall rules via the router interface.

Recommendations

For improved wireless performance, position the router centrally in the home away from large metal objects and other sources of interference. Use WPA2 security with a strong password and keep firmware updated to maintain network security and stability.
