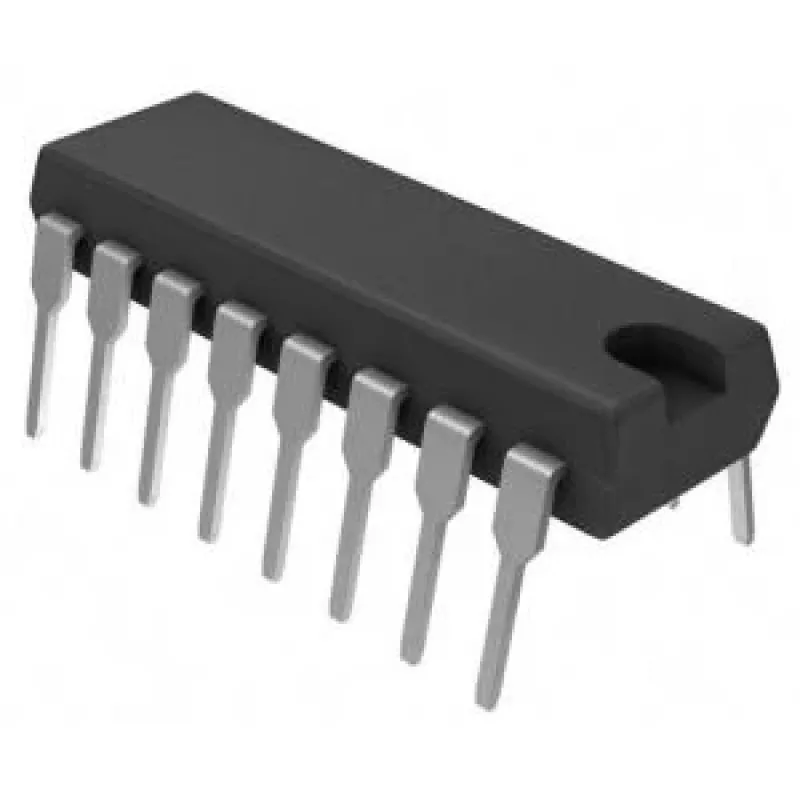

Precision-jännite-virtamuunnin-IC Texas Instruments XTR110KP PDIP-16

The Texas Instruments XTR110KP is a precision voltage-to-current converter IC in a PDIP-16 package designed for industrial signal transmission. It transforms a measured or control voltage into a proportional current suitable for 4–20 mA current loops and remote sensor interfaces. The device provides stable current sourcing and is intended for use in process control, instrumentation, and long-distance analog signalling where accurate current output and low drift are required.

Advantages

The XTR110KP offers precision voltage-to-current conversion with low temperature drift and high output compliance, enabling reliable operation across a range of industrial conditions. Its integrated design reduces external component count and simplifies loop wiring for 4–20 mA systems. The PDIP-16 package provides easy handling and straightforward through-hole mounting for prototyping and legacy board designs. The converter supports stable current sourcing for sensors and transmitters, improving signal integrity over long cable runs.

Suitable for

• 4–20 mA industrial current loop transmitters
• Process control and automation signal conditioning
• Remote sensor interfacing and long-distance analog signalling
• Instrumentation requiring low-drift current outputs

Key specifications

• Function: voltage-to-current conversion (voltage input to proportional current output)
• Output range: designed for standard 4–20 mA loop operation
• Package type: PDIP-16 through-hole package for easy prototyping and mounting
• Performance characteristics: precision conversion with low temperature drift and stable current sourcing
• Supply and compliance: supports industrial loop supply voltages and provides sufficient output compliance for long cable runs (refer to manufacturer datasheet for exact voltage ranges)

How to use
