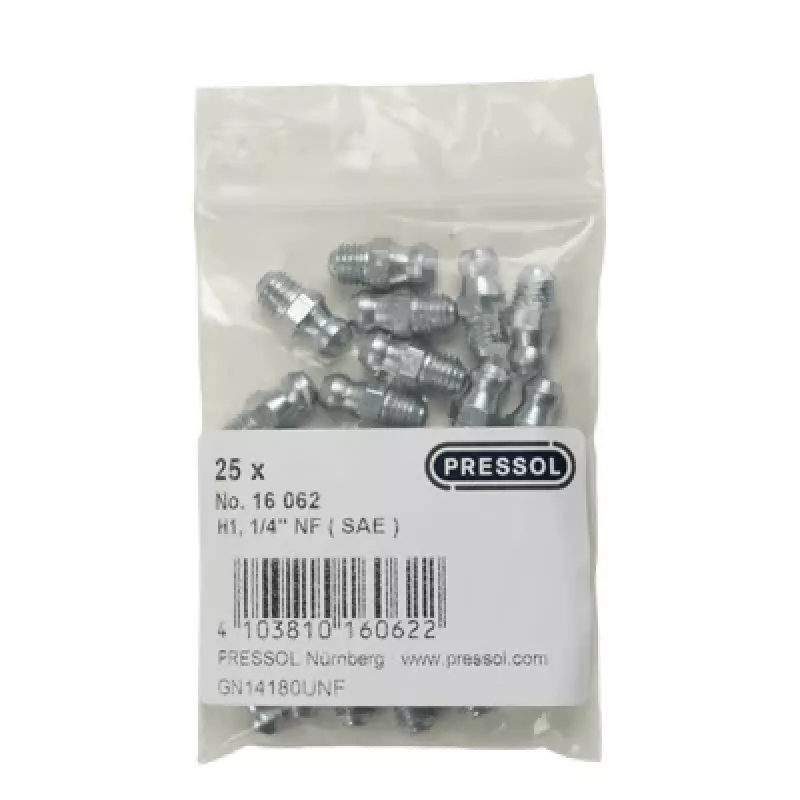

Pressol kartioliitinrasva H1 suora, 1/4 tuuman UNF, 25 kpl (16 062)

Lubrication points on machinery often suffer from clogged or damaged grease fittings, leading to inadequate lubrication and premature wear. This Pressol conical grease nipple provides a reliable connection for standard grease guns, ensuring smooth and efficient lubrication in general applications.

Who is it for

Maintenance technicians, mechanics, and workshop professionals who need dependable grease fittings for routine lubrication tasks on industrial equipment, automotive components, and agricultural machinery.

Main features

• Conical head form H1 for secure grease gun coupling
• Straight design (0°) for easy access in standard positions
• 1/4" UNF thread for common mounting holes
• Zinc-plated steel with blue passivation for corrosion resistance
• Complies with DIN 71412
• Pack of 25 pieces for convenient stocking

Specifications

• Product type: Grease nipple
• Nipple type: Conical
• Head form: H1
• Design angle: Straight (0°)
• Thread type: UNF
• Thread size: 1/4 inch
• Material: Steel
• Surface finish: Zinc-plated, blue passivated
• Wrench size (SW): 11 mm
• Total length (L1): 19 mm
• Thread length (L2): 7 mm
• Head diameter (D1): 6.5 mm
• Max operating pressure: 400 bar
• Pack quantity: 25 pieces

Tips

Always clean the grease nipple before connecting the coupler to prevent contamination. Use a suitable wrench to tighten the nipple without over-torquing, which can damage the thread or housing.
