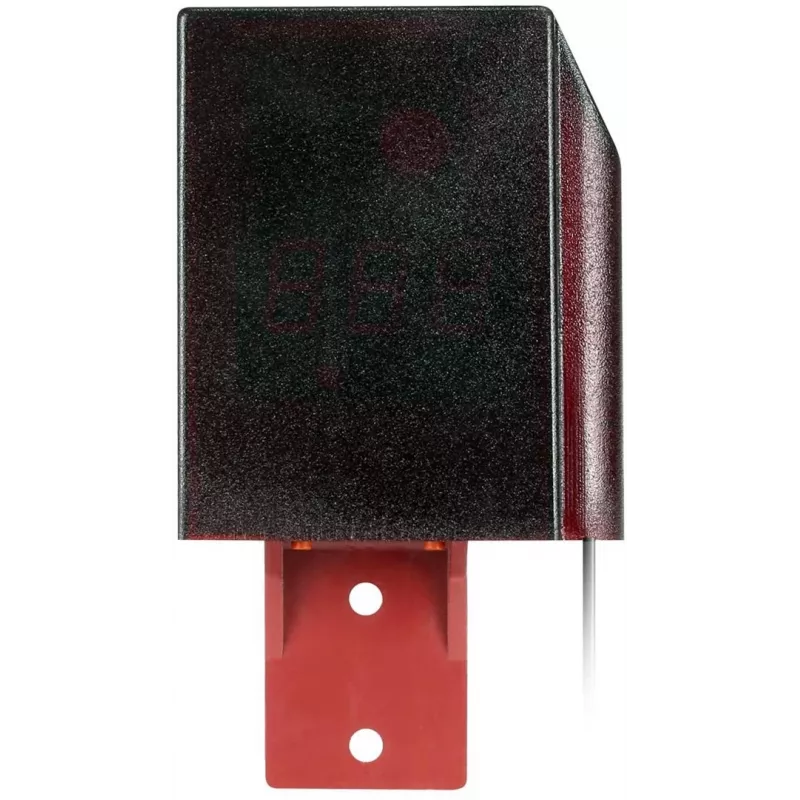

Proxima BRAMA ECO GSM porttiohjain ja radiovastaanotin (D BRAM GSM E)

The Proxima BRAMA ECO GSM Gate Controller and Radio Receiver (D BRAM GSM E) allows you to open a gate using a mobile phone. A call attempt (free CLIP) or sending an SMS with a password (SMS cost according to operator's tariff) triggers a relay in the controller, resulting in opening or closing the gate. The device can be controlled by 999 subscribers (users), where the numbers of the first 16 subscribers are administrative numbers that can receive SMS and CLIP notifications about the occurrence of a given EVENT.

Key features

• Control via free CLIP call or SMS with password
• Supports up to 999 users
• 16 administrative numbers for event notifications via SMS and CLIP
• Events include: receiving SMS, CLIP, ground loss, button press/release, plus loss, plus-to-ground change, foreign SMS, autotest time
• Requires at least one administrative number for proper operation
• Works with prepaid SIM cards; subscription, telemetry, no-PIN cards recommended
• Channel modes: monostable (1-999 seconds), bistable

Specifications

• Brand: Proxima
• Model: D BRAM GSM E
• Power supply: 24V AC/DC
• Current consumption: max 100mA
• Output: 2 x 24V-1A relay NO/NC
• Input: 2 x 0-24V three-state
• Number of users: 999
• Number of administrators: 16
• Dimensions: 60 x 84 x 23 mm
• Weight: 75 g
