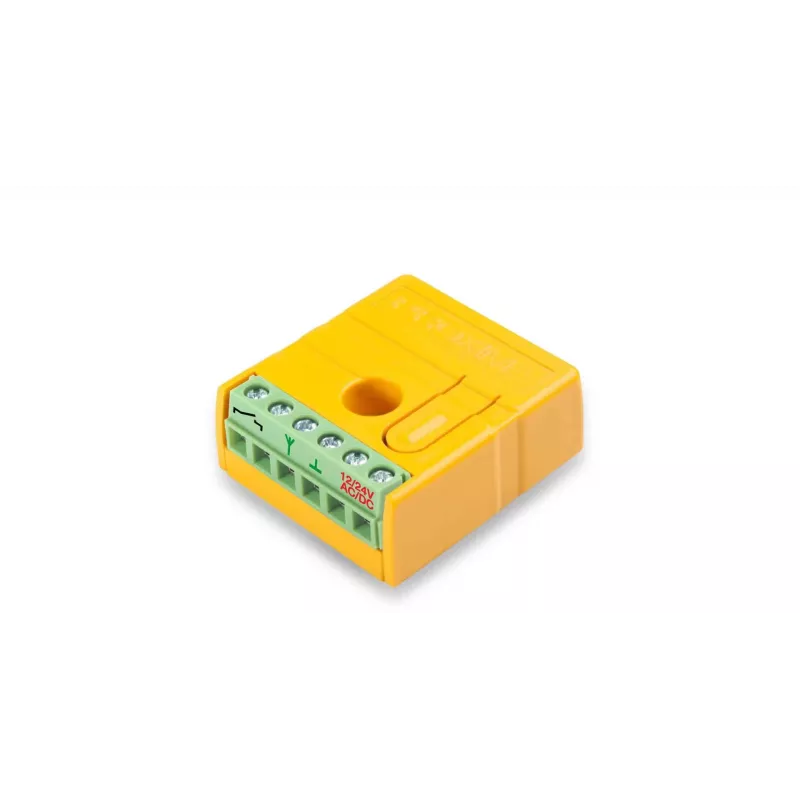

PROXIMA NW1 SF Somfy RTS -ohjain/radiovastaanotin

The PROXIMA NW1 SF stands out as a single-channel Somfy RTS controller and radio receiver, enabling direct local control of compatible motors without relying solely on remote transmitters. Unlike basic remote-only solutions, it combines built-in Up/Stop/Down buttons with the ability to memorize up to 30 Somfy RTS transmitters, making it a flexible addition to roller shutter, awning, blind, or gate installations.

Highlights

• Operates on Somfy RTS (Radio Technology Somfy) at 433.42 MHz
• Single relay output with Up/Stop/Down control
• Supports up to 30 Somfy RTS transmitters in memory
• Local manual buttons for direct operation
• Surface or flush mounting with IP20 protection

In daily use

The NW1 SF is wired to a 230V AC supply and switches a connected Somfy RTS motor via its relay output, rated for loads up to 500W. Programming is done manually using the buttons on the device, allowing you to pair or clear transmitters without extra tools. The ABS plastic housing is suited for indoor mounting, and the operating temperature range of -20°C to +55°C covers typical installation environments.

Full specifications

• Compatibility: Somfy RTS
• Number of channels: 1
• Radio frequency: 433.42 MHz
• Power supply: 230V AC, 50Hz
• Output type: Relay (Up/Stop/Down)
• Max output load: 500W
• Transmitter memory: up to 30 Somfy RTS transmitters
• Control method: Somfy RTS remote control, local buttons
• Mounting type: surface mount / flush mount
• Protection rating: IP20
• Operating temperature: -20°C to +55°C
• Housing material: ABS plastic
• Application: roller shutters, awnings, blinds, gates with Somfy RTS motors
• Programming: manual via buttons on the device

Final note

The PROXIMA NW1 SF is a practical receiver for adding local control and expanding transmitter capacity in Somfy RTS motor setups.
