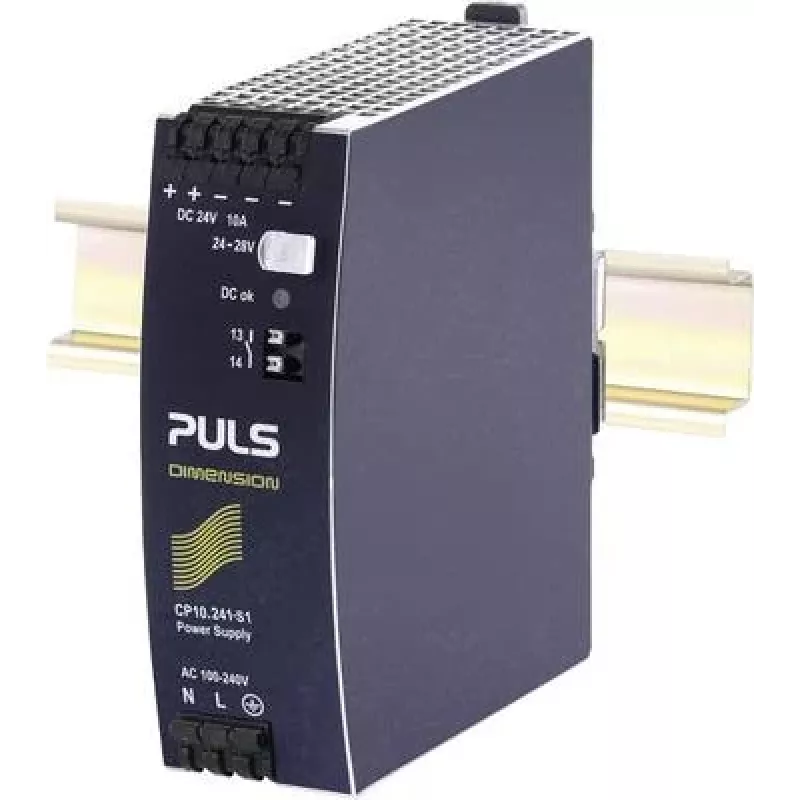

PULS CP10.241-S1 DIN-kiskovirtalähde 24V 10A 240W

With a typical efficiency of 95.2%, the PULS CP10.241-S1 DIN rail power supply delivers 24 VDC at 10 A (240 W) while minimizing energy loss and heat generation.

Overview

The CP10.241-S1 is part of the PULS DIMENSION series, designed for industrial control and automation systems. It accepts a wide input voltage range of 100-240 VAC (110-150 VDC) and provides a stable 24 VDC output with an adjustable range of 24-28 VDC. The unit is suitable for DIN rail mounting (TS35/7.5 or TS35/15) and operates within a temperature range of -25 to +70 °C.

What stands out

• High efficiency of 95.2% reduces energy costs and cooling requirements.
• Built-in DC-OK relay contact for remote monitoring of output status.
• Supports parallel operation of up to 5 units for higher power or redundancy.
• Comprehensive protection: overload, short-circuit, overvoltage, and overtemperature.
• Convection cooling ensures silent operation without fans.

Technical details

• Output: 24 VDC, 10 A, 240 W nominal
• Input: 100-240 VAC, 45-66 Hz, or 110-150 VDC
• Hold-up time: >20 ms at 100 VAC, 10 A
• Ripple and noise: <50 mVpp (20 MHz bandwidth)
• Efficiency: 95.2% typical at 230 VAC, 24 V, 10 A
• Connection: Screw terminals
• Housing: Metal (aluminum)
• Degree of protection: IP20

Our verdict

The CP10.241-S1 combines high efficiency, reliable protection features, and flexible mounting options, making it a solid choice for demanding industrial applications.
