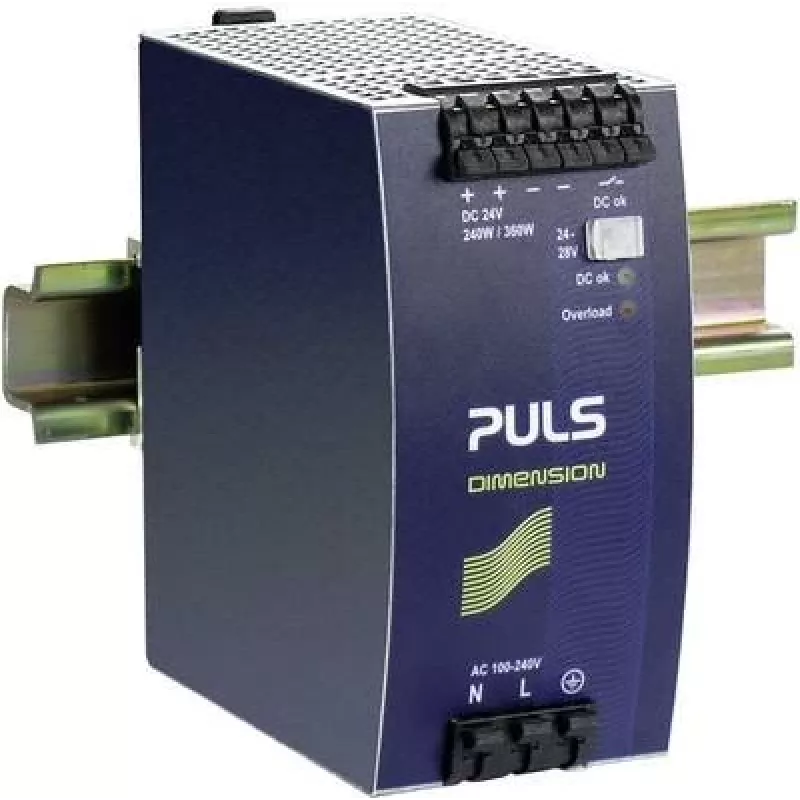

PULS DIMENSION Q-sarja QS10.241 - 720W 24V 30A DIN-kiskovirtalähde

In a busy control cabinet, a machine builder needs a power supply that fits the DIN rail, delivers stable 24 V DC, and handles heavy loads without a fan. The PULS QS10.241 does exactly that. It converts 100-240 V AC to 24 V DC with 30 A output, providing 720 W of reliable power for industrial automation, test systems, and process control. Its compact metal housing and convection cooling make it ideal for dusty or noise-sensitive environments.

Key specifications

• Output: 24 V DC (adjustable 24-28 V), 30 A, 720 W
• Input: 85-276 V AC (45-65 Hz) or 110-150 V DC
• Efficiency: up to 94.3% with active PFC (>0.99 at 230 V AC)
• Mounting: DIN rail (35 mm)
• Protection: overload, short-circuit, overtemperature, output overvoltage
• Cooling: convection, fanless
• Operating temperature: -25°C to +70°C
• Hold-up time: >20 ms at 230 V AC, 24 V, 30 A
• Approvals: UL 61010-1, UL 62368-1, IEC 62368-1, CE, RoHS, SEMI F47

Why choose it

The QS10.241 stands out with its high efficiency and active power factor correction, reducing energy costs and harmonics. Its fanless design means zero noise and no moving parts to fail, ensuring long-term reliability. The wide input voltage range makes it suitable for unstable grids or battery backup systems. With comprehensive protection features and international approvals, it is a safe choice for demanding industrial applications.

Ideal use cases

• Industrial control panels and PLC systems
• Machine building and factory automation
• Test and measurement equipment
• Semiconductor manufacturing tools
• Building automation and HVAC controls

Good to know

The QS10.241 is part of the DIMENSION Q-Series, known for high performance and compact size. It can be mounted on a DIN rail without additional accessories. The output voltage is adjustable from 24 to 28 V, allowing compensation for voltage drops in long cable runs. The unit operates without derating up to +60°C, and with derating up to +70°C. For parallel operation, a redundancy module is recommended.
