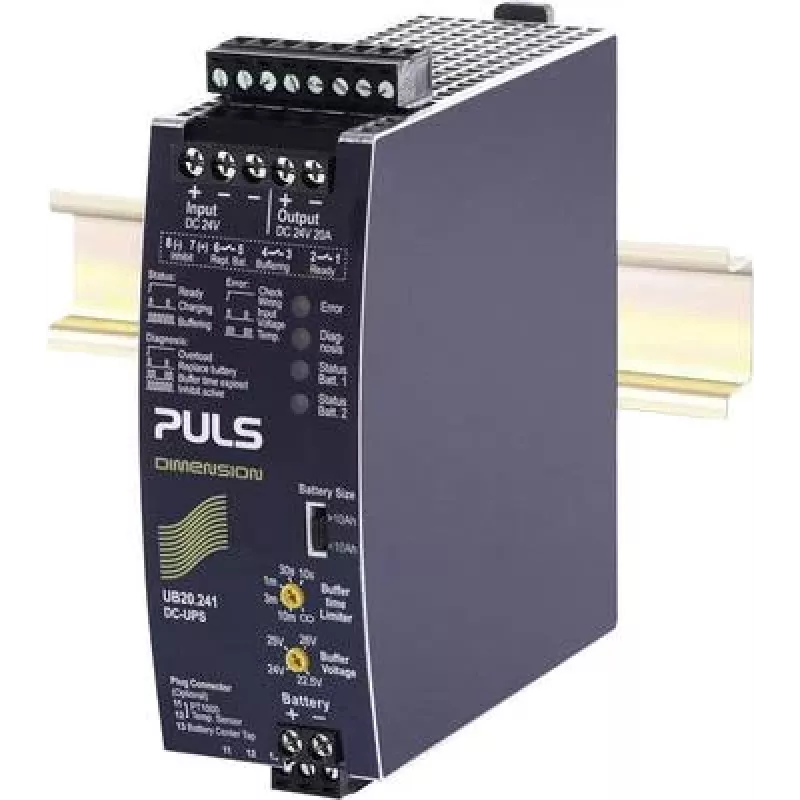

PULS DIMENSION UB20.241 DIN-kiskovirtalähde 24V DC 20A 480W

The PULS DIMENSION UB20.241 stands out with its high efficiency of up to 95.6% and active power factor correction, minimizing energy losses and reducing harmonic distortion on the mains. It delivers a stable 24 V DC output with 20 A current, making it suitable for demanding industrial applications.

Highlights

• Wide input voltage range: 100-240 V AC (85-276 V AC operating) and 88-300 V DC
• Adjustable output voltage: 24-28 V DC
• Convection cooled, no internal fan required
• Parallel capable for increased power or redundancy
• Robust metal housing for harsh environments

In daily use

This DIN rail power supply is designed for continuous operation in control cabinets. Its hold-up time of more than 20 ms at 115 V AC ensures reliable performance during brief mains interruptions. The output ripple and noise are kept below 50 mVpp, providing clean power for sensitive loads.

Full specifications

• Input voltage range (AC): 100-240 V AC (85-276 V AC operating)
• Input voltage range (DC): 88-300 V DC
• Input frequency: 45-65 Hz
• Output voltage: 24 V DC (adjustable 24-28 V DC)
• Output current: 20 A
• Output power: 480 W
• Efficiency: up to 95.6%
• Power factor correction: active PFC (>0.99 at 230 V AC)
• Operating temperature range: -25°C to +70°C
• Mounting type: DIN rail TS35
• Protection features: overload, short-circuit, overvoltage, overtemperature
• Hold-up time: >20 ms (at 115 V AC, 20 A)
• Output ripple & noise: <50 mVpp
• Parallel capability: yes, for increased power or redundancy
• Cooling method: convection cooled
• Housing material: metal
• MTBF: >1,000,000 hours

Final note

With its compact design and high reliability, the UB20.241 is a trusted choice for automation and control systems.
