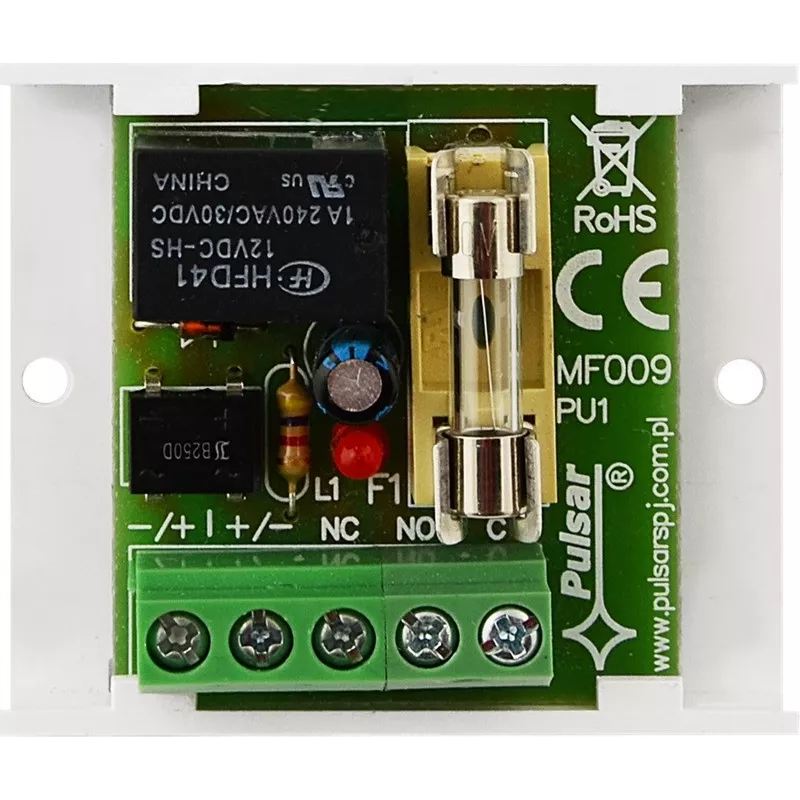

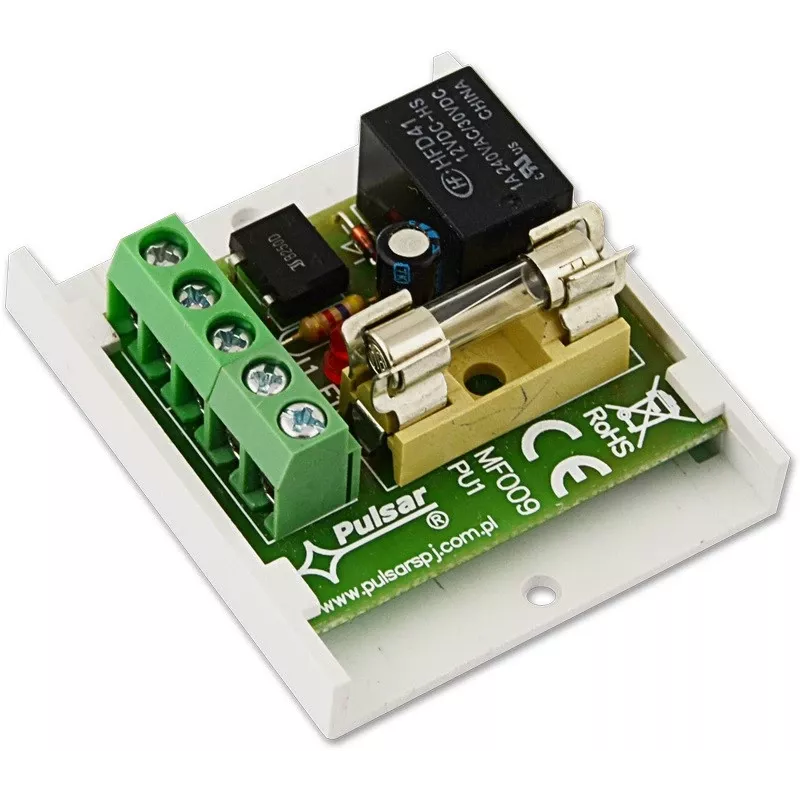

PULSAR AWZ510 relemoduuli - 1x SPDT, 12V DC kela, 1A

The PULSAR AWZ510 is a compact and reliable relay module designed for signal isolation, voltage conversion, and current amplification in alarm systems, access control, CCTV, and automation applications. Featuring a single SPDT (C/NO/NC) relay with a 12V DC coil, it offers galvanic isolation and screw terminal connections for secure wiring.

Advantages

Galvanic isolation protects sensitive control circuits from high currents and voltages. The SPDT contact configuration provides flexibility for switching between normally open and normally closed circuits. Compact surface-mount design with mounting holes simplifies installation.

Suitable for

• Alarm systems and security panels
• Access control systems
• CCTV camera switching
• Building automation and industrial control

Key specifications

• Product Type: Relay Module
• Number of Relays: 1
• Relay Contact Type: SPDT (C/NO/NC)
• Max. Switching Voltage (DC): 30V DC
• Max. Switching Voltage (AC): 50V AC
• Max. Switching Current: 1A
• Coil Input Voltage Range: 10V - 16V DC
• Nominal Coil Voltage: 12V DC
• Coil Current Consumption: 20mA @ 12V DC
• Operating Temperature Range: -10°C to +50°C
• Connection Method: Screw Terminals
• Mounting Type: Surface Mount (with mounting holes)
• Galvanic Isolation: Yes
• Number of Terminals: 5

Recommendations

Use with a regulated 12V DC power supply. Ensure load does not exceed 1A or 30V DC/50V AC. Suitable for indoor use only.
