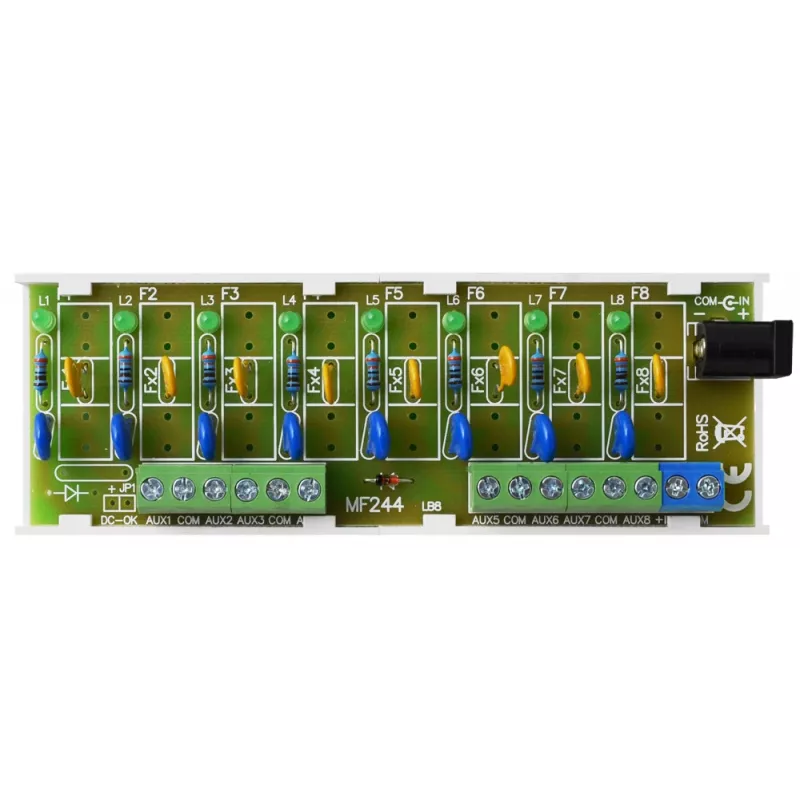

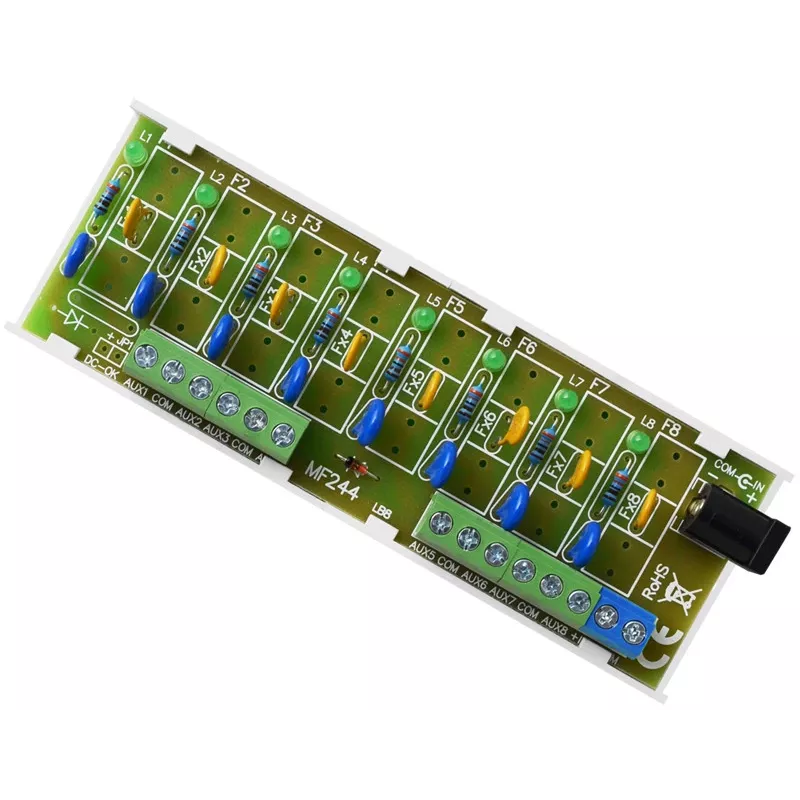

Pulsar AWZ578 sulakemoduuli 8-kanavainen 1A

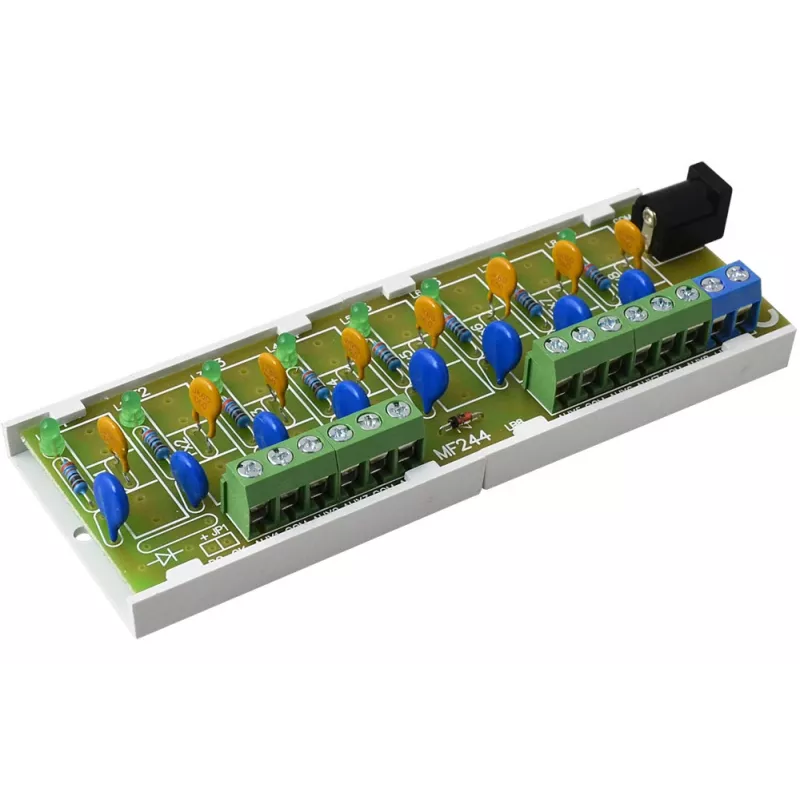

The Pulsar AWZ578 is a professional 8-channel fuse module designed for reliable overcurrent protection in CCTV, access control, and alarm systems. It accepts a wide input voltage range of 10V to 30V DC and provides independent fused outputs with a maximum current of 1A per channel (total 8A). The module uses standard 5x20mm glass fuses and features screw terminal connectors for secure wiring. Its compact ABS enclosure is surface-mountable and rated IP20, making it suitable for indoor installations.

Advantages

• 8 independent channels with individual 1A fuses ensure precise protection for each device.
• Wide input voltage range (10-30V DC) offers flexibility for various power supplies.
• Short-circuit and overload protection safeguard connected equipment.
• Easy surface mounting with screw terminals simplifies installation.

Suitable for

• CCTV camera systems
• Access control panels
• Alarm system components
• Low-voltage DC distribution

Key specifications

• Input Voltage: 10V - 30V DC
• Output Voltage: Equal to Input Voltage
• Number of Outputs: 8 independent channels
• Output Current per Channel: Max 1A
• Total Output Current: Max 8A
• Fuse Type: Glass Fuse (5x20mm)
• Fuse Rating per Channel: 1A
• Protection: Short-circuit (SCP), Overload (OLP)
• Connectors: Screw Terminals
• Mounting: Surface Mount (screws)
• Enclosure Material: ABS
• IP Rating: IP20
• Operating Temperature: -10°C to +40°C
• Relative Humidity: 20% to 90% (non-condensing)

Recommendations

For optimal performance, use with a regulated DC power supply and ensure proper fuse ratings for connected devices. Regularly inspect fuses and replace only with identical 5x20mm 1A glass fuses.
