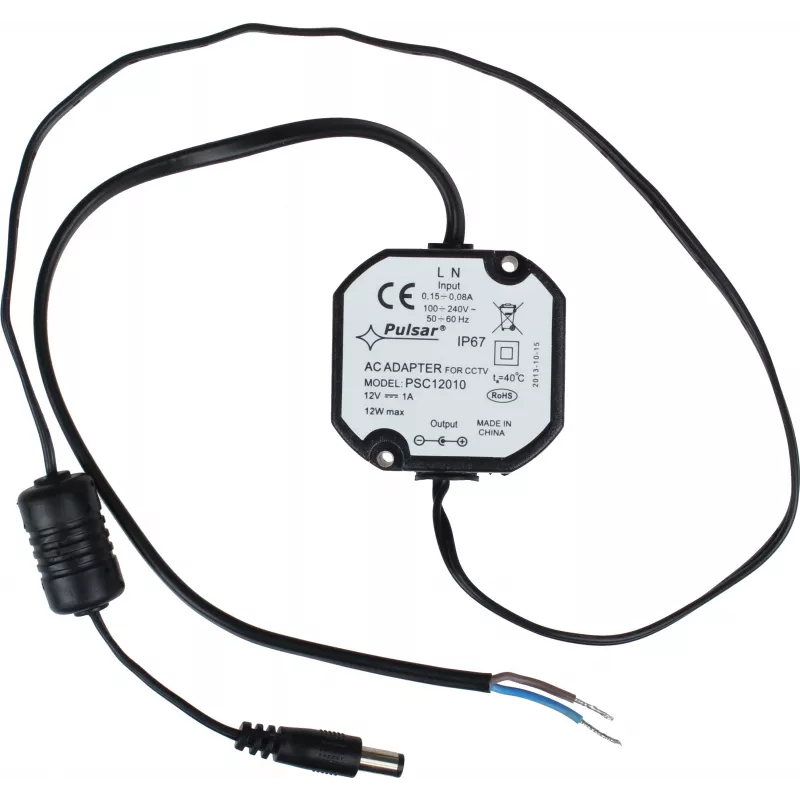

PULSAR PSC12010 hermeettinen hakkurivirtalähde 12V/1A

The PULSAR PSC12010 is a high-quality hermetic switching power supply designed for reliable performance in demanding environments. With an IP67 rating, it is fully sealed against dust and water ingress, making it ideal for outdoor or industrial applications. This power supply delivers a stable 12V DC output at 1A (12W) and features comprehensive protection including short circuit, overload, and over voltage protection.

Advantages

Hermetic IP67 enclosure ensures durability in harsh conditions. High efficiency (>80%) reduces energy loss. Wide input voltage range (176-264V AC) accommodates varying mains supplies. Compact surface-mount design simplifies installation.

Suitable for

• Outdoor lighting systems
• Security cameras and access control
• Industrial automation equipment
• Telecommunication devices
• Any application requiring a sealed, reliable 12V power source

Key specifications

• Input: 176-264V AC, 50/60 Hz
• Output: 12V DC, 1A, 12W
• Efficiency: >80%
• Ripple & Noise: <120mVp-p
• Protection: SCP, OLP, OVP
• Operating Temperature: -25°C to +50°C
• Housing: Polycarbonate

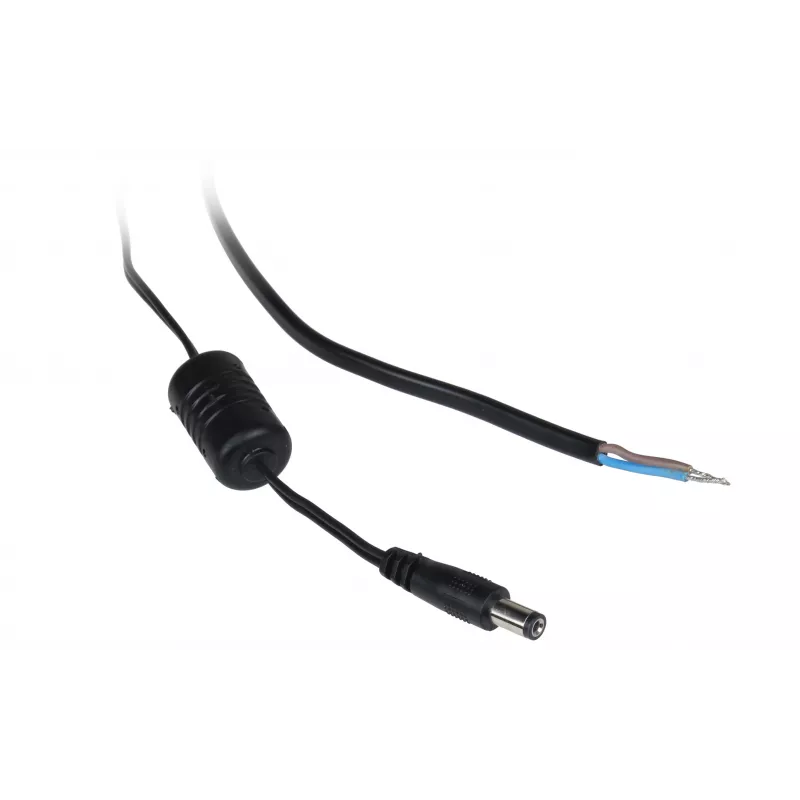

• Connections: Wire leads
• Certifications: CE, RoHS

Recommendations

For best performance, ensure the input voltage is within the specified range and the load does not exceed 1A. Suitable for both indoor and outdoor use where a sealed power supply is required.
