Pulsar PSD12070 pöytämallinen hakkurivirtalähde 12V/7A 84W CCTV-käyttöön

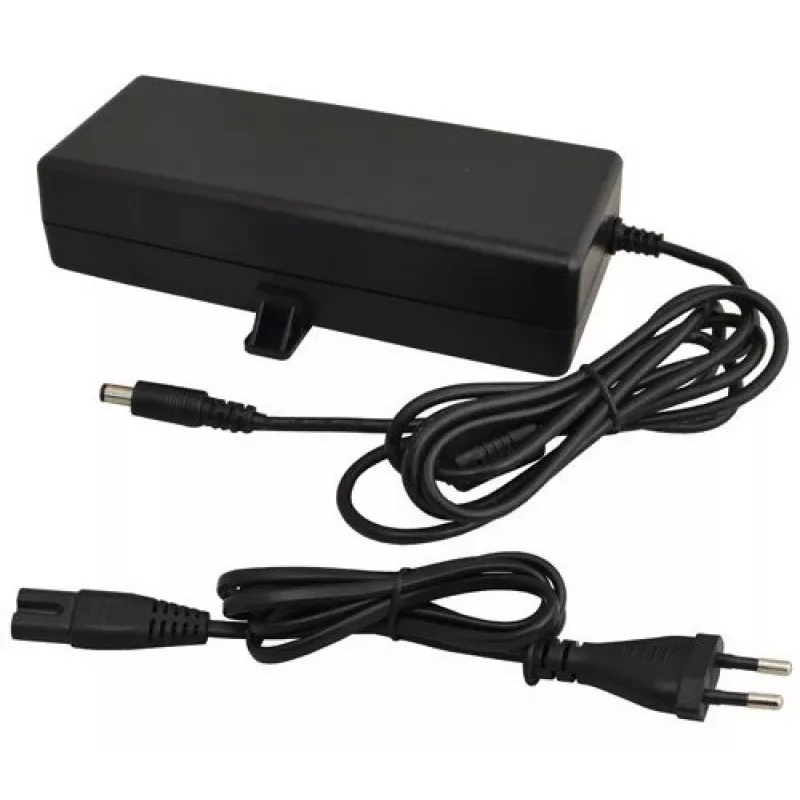

The Pulsar PSD12070 is a high-performance desktop switching power supply designed for professional CCTV, access control, and industrial automation applications. With a stable 12V DC output and a continuous current of 7A (84W), it ensures reliable power delivery to your security cameras, door locks, and other low-voltage devices. The unit features a compact desktop enclosure, an IEC C8 (Figure-8) input connector, and a standard DC plug 2.1/5.5mm output connector for easy integration.

Advantages

This power supply offers high efficiency (>80%), low ripple and noise (<120mVp-p), and comprehensive protection features including short circuit (SCP), overload (OLP), and overvoltage (OVP) protection. Its Class II insulation and CE/RoHS certifications guarantee safety and environmental compliance. The built-in LED indicator provides clear power-on status, making installation and troubleshooting straightforward.

Suitable for

• CCTV cameras and DVRs
• Access control systems (magnetic locks, electric strikes)
• Industrial automation equipment
• General purpose 12V DC powered devices

Key specifications

• Input: 100-240V AC, 50/60 Hz
• Output: 12V DC, 7A, 84W
• Efficiency: >80%
• Input connector: IEC C8 (Figure-8)
• Output connector: DC plug 2.1/5.5mm
• Protections: SCP, OLP, OVP
• Operating temperature: -10°C to +40°C
• Storage temperature: -20°C to +60°C
• Ripple and noise: <120mVp-p
• Insulation class: Class II
• Certifications: CE, RoHS
• LED indicator: Yes (Power ON)

Recommendations

For optimal performance, use with devices that require a stable 12V DC supply up to 7A. Ensure proper ventilation and avoid exposure to extreme temperatures or moisture. The power supply is not suitable for outdoor use without additional weatherproofing.
