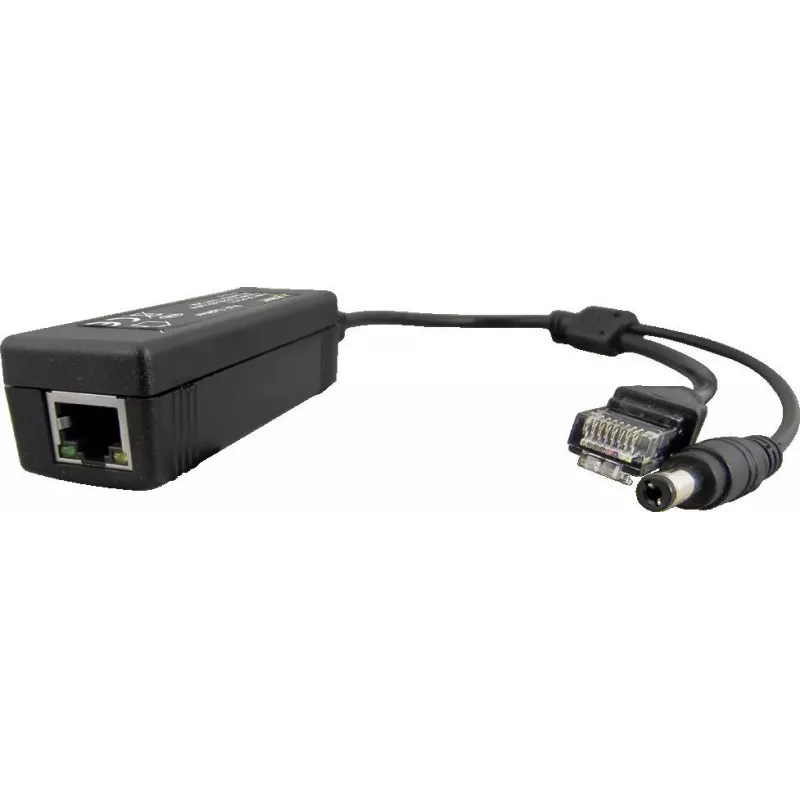

Pulsar SP-POE12 PoE-haaroitin 12V 1A 12W

The Pulsar SP-POE12 is a high-quality Power over Ethernet (PoE) splitter designed to deliver both data and power to non-PoE devices. It complies with IEEE 802.3af/at standards and converts PoE input (44-57V DC) to a stable 12V DC output at 1A (12W), making it ideal for powering IP cameras, access points, and other low-voltage devices.

Advantages

This PoE splitter simplifies installation by eliminating the need for separate power cables. It supports 10/100 Mbps Ethernet data rates and features overload and short-circuit protection for reliable operation. The compact design and wide operating temperature range (-10°C to +40°C) ensure versatility in various environments.

Suitable for

• IP cameras requiring 12V DC power
• Wireless access points
• Network devices without PoE support
• Remote installations where power outlets are unavailable

Key specifications

• PoE Standard: IEEE 802.3af/at
• Input Voltage: 44-57V DC
• Output Voltage: 12V DC
• Output Current: 1A
• Max Output Power: 12W
• Ethernet Data Rate: 10/100 Mbps
• DC Output Connector: 2.1/5.5mm Jack
• Ports: 1x RJ45 PoE In, 1x RJ45 Data Out
• Protection: Overload, Short-circuit
• Operating Temperature: -10°C to +40°C
• Storage Temperature: -20°C to +60°C
• Humidity: 10% to 90% RH (non-condensing)
• LED Indicator: Power/Status

Recommendations

For optimal performance, use with a Pulsar PoE injector or switch that complies with IEEE 802.3af/at. Ensure the total power consumption of the connected device does not exceed 12W.
