FiberX HDMI-kaapeli 20 m FX-I350-020 Type-A 2.0 18 Gbit/s

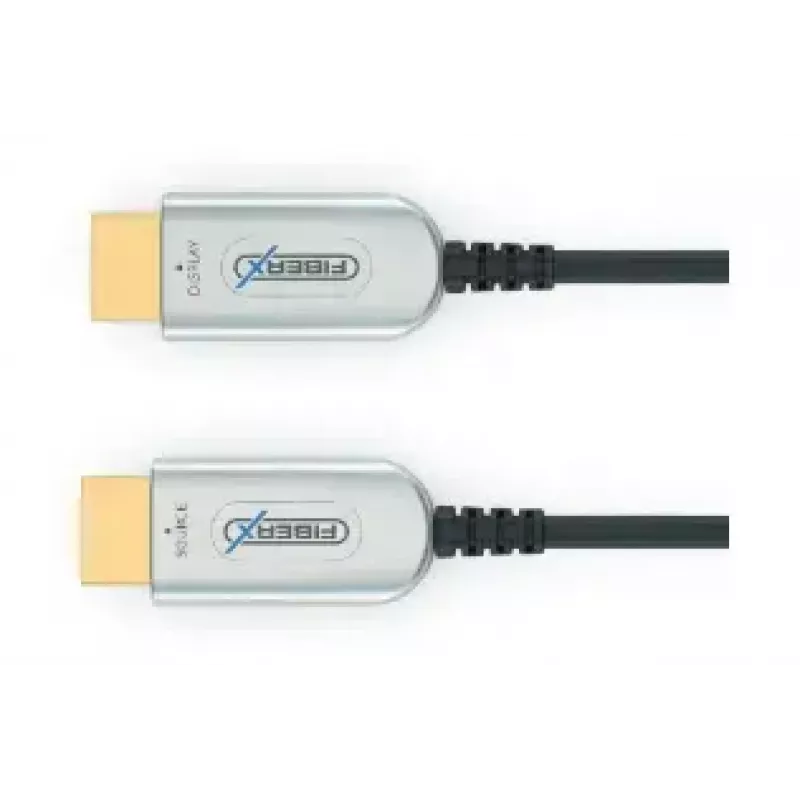

The FiberX HDMI Cable 20m FX-I350-020 is a hybrid active optical HDMI 2.0 cable that transmits uncompressed audio and video signals up to 100 m. Designed for professional installations, this 20 m pre-assembled cable combines fiber optic cores for AV transmission and copper conductors for power and control lines, providing full 18 Gbit/s bandwidth for 4K UltraHD at 60 Hz with support for CEC, EDID and HDCP. The cable features gold-plated HDMI Type A male connectors, a compact Ø4.5 mm flexible jacket with a small bend radius and a full-metal connector housing.

Advantages

The hybrid FiberX FX-I350-020 delivers lossless, zero-latency transmission up to 18 Gbit/s and maintains full HDMI signal integrity over long distances. Its integrated chipset supports transparent EDID pass-through, HDCP and CEC, reclocking and digital audio formats such as DTS-HD Master Audio and Dolby TrueHD. The combination of fiber and copper ensures low attenuation, EMI resistance and no need for external power while preserving the end-user experience of a high-quality short copper cable.

Suitable for

• Professional AV installations and long-run connections between sources and displays
• Connecting 4K/60Hz displays, projectors and video walls
• Signal extension for gaming consoles, Blu-ray players and set-top boxes
• Environments requiring EMI resistance and minimal signal loss over distance

Key specifications

• Model: FX-I350-020
• Cable length: 20 m
• HDMI version: 2.0, up to 18 Gbit/s
• Supported resolution: up to 4K UltraHD (2160p) at 60 Hz
• Connectors: HDMI Type A male to HDMI Type A male, gold-plated
• Cable type: hybrid (fiber optic for AV transmission, copper for power/data), Ø 4.5 mm
• Color: Black, Silver
• Features: CEC, transparent EDID pass-through, HDCP support, reclocking, digital audio support (DTS-HD, Dolby Digital Plus, Dolby TrueHD)
• Weight: 1.05 kg

How to use

Identify the clearly marked ends and connect the HDMI Type A male connectors to the source and display. Ensure the correct orientation of transmitter and receiver ends; do not force the cable into the wrong port. The cable is plug-and-play and requires no external power. For best results, avoid sharp bends and maintain a bending radius above the specified minimum (approx. 60 mm).

Recommendations

For professional installations, test the connection and EDID handshake before final mounting. Use the marked ends to avoid incorrect connections; compatibility with HDMI adapters cannot be guaranteed.
