Qoltec DIN-kiskovirtalähde 20W 12V 1.67A valkoinen ohut

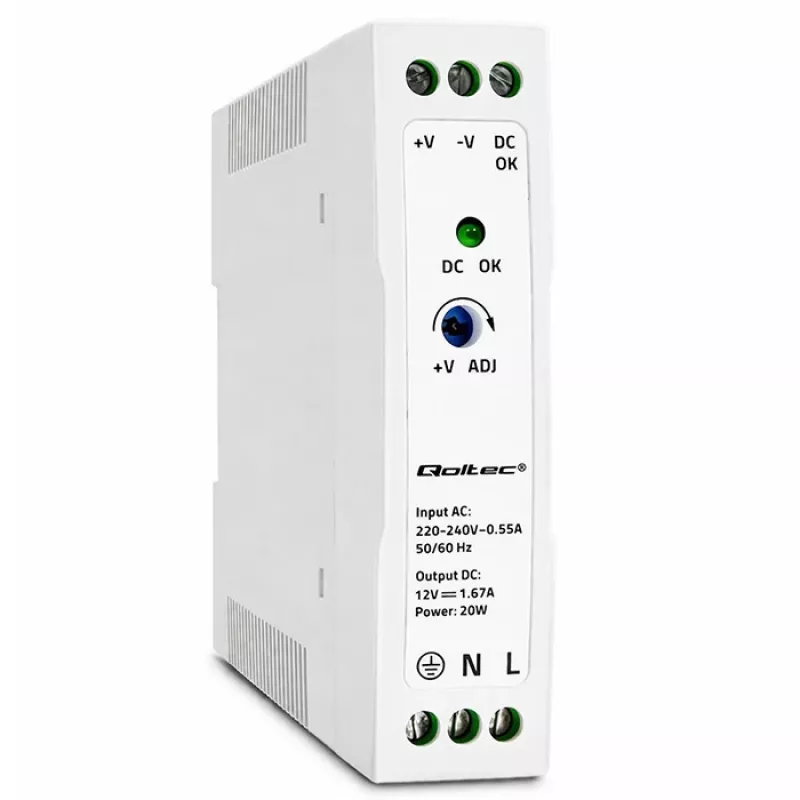

The Qoltec DIN Rail Power Supply is a compact and reliable power solution designed for industrial and automation applications. With an output of 20W at 12V DC and 1.67A, it provides stable power to your devices. Its slim form factor and white housing make it ideal for space-constrained installations.

Advantages

High efficiency of 85% reduces energy waste and heat generation. Passive cooling ensures silent operation and long lifespan. Comprehensive protection features safeguard connected equipment against overload, overvoltage, and short circuits.

Suitable for

• Industrial control cabinets
• Building automation systems
• Security and access control systems
• LED lighting applications

Key specifications

• Output Power: 20 W
• Output Voltage: 12 V DC
• Output Current: 1.67 A
• Input Voltage: 100-240 V AC
• Input Frequency: 50/60 Hz
• Mounting: DIN Rail (TS-35/7.5 or TS-35/15)
• Efficiency: 85%
• Protection: Overload, Overvoltage, Short Circuit
• Color: White
• Form Factor: Slim
• Operating Temperature: -20°C to +50°C
• Storage Temperature: -40°C to +85°C
• Humidity: 20% ~ 90% RH (non-condensing)
• Housing Material: PC (Polycarbonate)
• Cooling: Passive
• Certifications: CE, RoHS
• No-Load Power Consumption: <0.5 W

Recommendations

For optimal performance, ensure proper ventilation and avoid exceeding the rated load. This power supply is a reliable choice for your DIN rail mounted systems.
