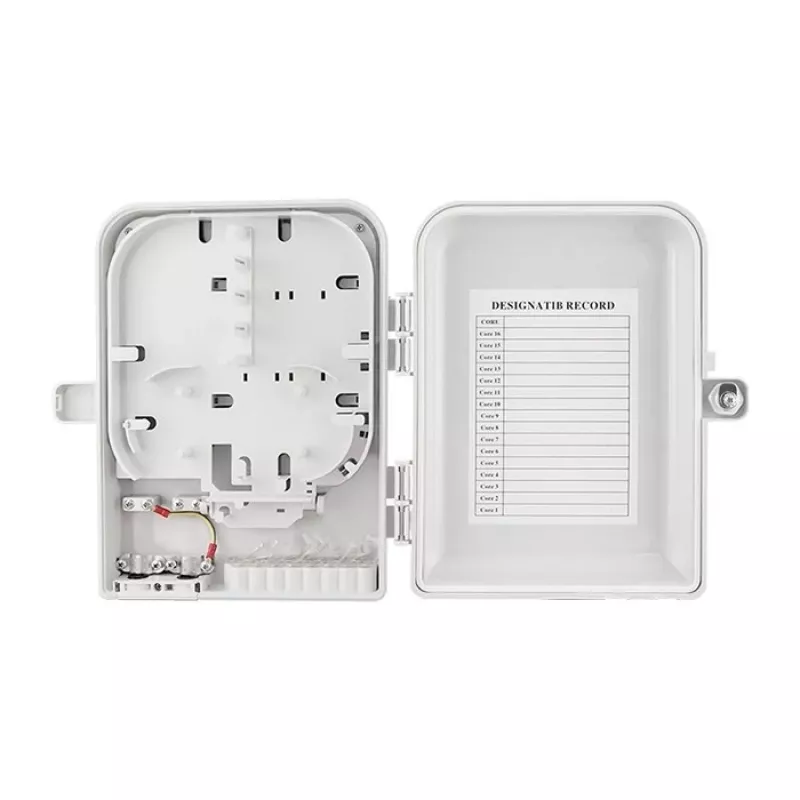

Qoltec kuitukaapelien jakokeskus 1x16

The Qoltec Fiber Optic Distribution Box 1x16 is a high-quality, wall-mountable enclosure designed for efficient fiber optic cable management and distribution. Ideal for FTTH (Fiber to the Home) networks, this robust box provides reliable protection and organization for splices and splitters.

Advantages

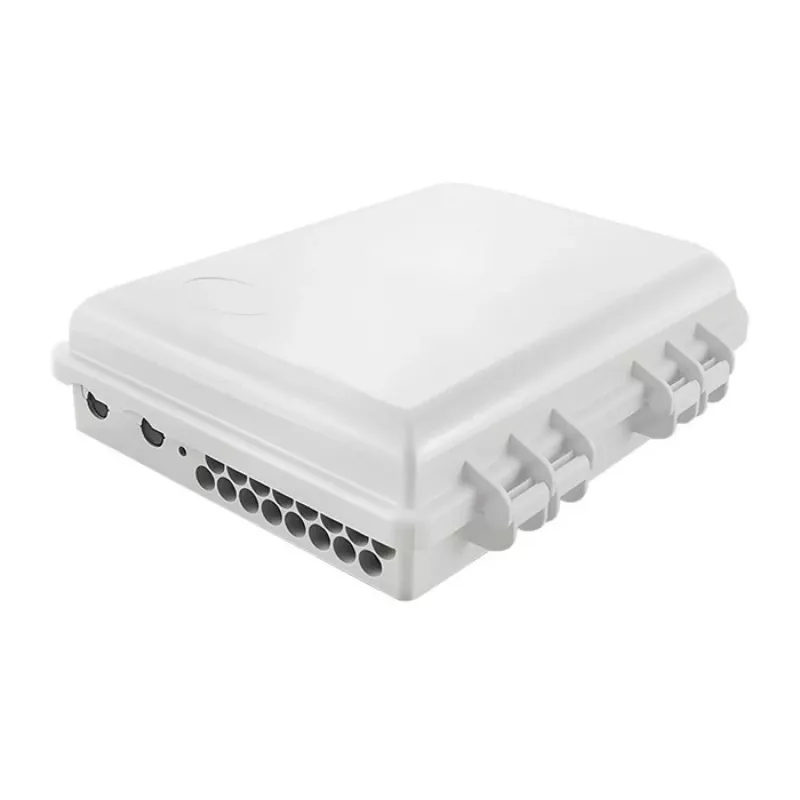

Durable PC+ABS construction with IP65 rating ensures protection against dust and water ingress. Supports both wall and pole mounting for flexible installation. Accommodates up to 24 fusion splices and features 2 cable entry ports and 16 drop cable ports for easy routing.

Suitable for

• FTTH network termination points
• Fiber optic distribution in residential or commercial buildings
• Outdoor and indoor installations requiring weather resistance

Key specifications

• Splitter Type: PLC (Planar Lightwave Circuit)
• Split Ratio: 1x16
• Connector Type: SC/APC
• Fiber Type: Single-mode (SM)
• Insertion Loss: Max. 18.0 dB
• Return Loss: >50 dB
• Operating Wavelength: 1260 - 1650 nm
• IP Rating: IP65
• Operating Temperature: -40°C to +85°C

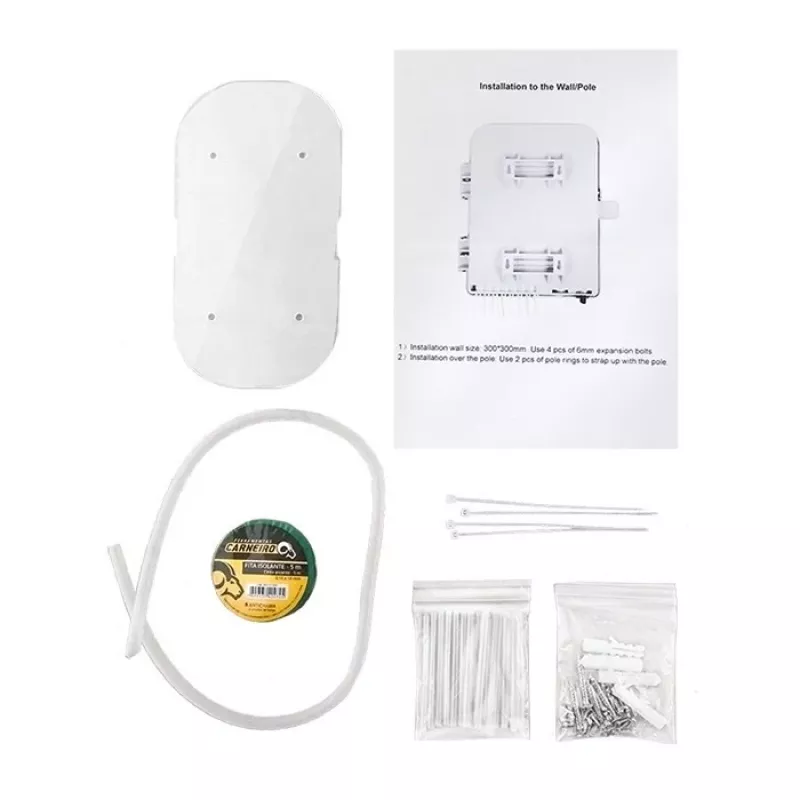

• Mounting Type: Wall-mount, Pole-mount
• Max Splice Capacity: 24 (fusion splices)
• Main Cable Diameter Compatibility: 7 - 12 mm
• Drop Cable Diameter Compatibility: 2x3 mm (flat) / 3 mm (round)

Recommendations

For optimal performance, use with SC/APC connectors and single-mode fiber. Ensure proper sealing of cable entries to maintain IP65 rating. Professional installation recommended.
