QSFP28-lähetin-vastaanotinmoduuli BlueOptics QSFP28-SR4-XCVR-BO kuitu MTP/MPO

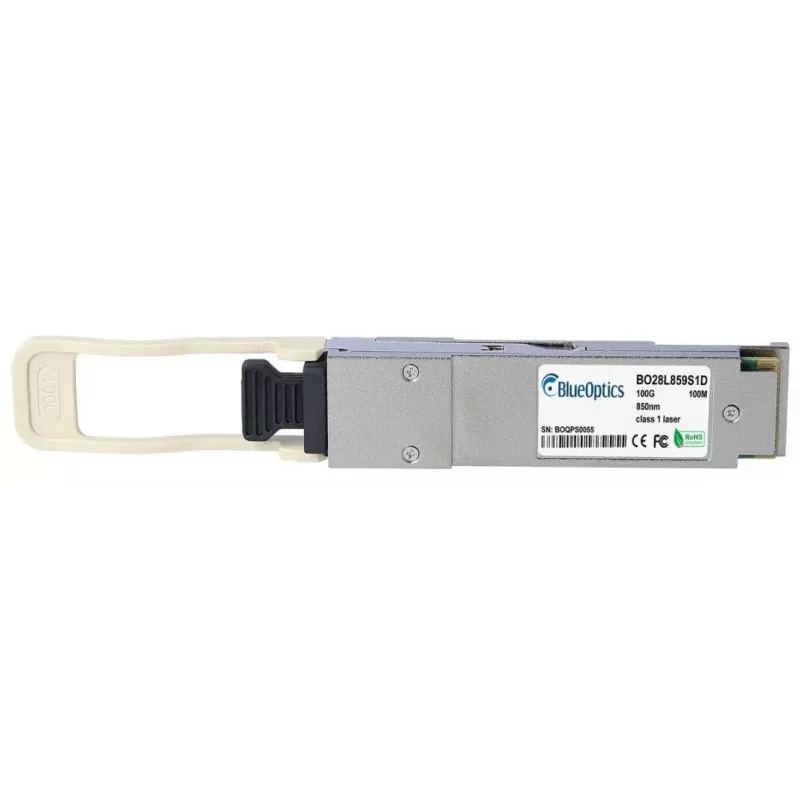

The BlueOptics QSFP28-SR4-XCVR-BO is a QSFP28 fiber optic transceiver module with an MTP/MPO connector designed for high-speed multimode fiber links. It supports 100G data transmission in SR4 applications and is supplied in an aluminium-coloured housing at a lightweight 0.04 kg, providing a compact interface for data center and high-performance network equipment that accepts QSFP28 modules.

Advantages

This QSFP28 transceiver follows MSA-compatible QSFP28 form-factor conventions and provides a standardized MTP/MPO connection for parallel multimode fiber operation. The module supports both transmit and receive at 850 nm wavelengths suitable for short-range 100GBASE-SR4 links. Its compact QSFP28 interface enables hot-pluggable installation in compatible network hardware, and the lightweight aluminium-coloured construction simplifies handling and rack installation.

Suitable for

Key specifications

How to use

Install the QSFP28-SR4-XCVR-BO into a compatible QSFP28 port while the host device is powered according to the equipment manufacturer’s hot-plug guidance. Connect the MTP/MPO multimode fiber trunk or patch cable to the module’s connector, ensuring correct fiber polarity and matching multimode fiber type (OM3/OM4 as required by your link budget). Verify link status through the host device and enable any required link settings (such as speed/auto-negotiation) in the switch or router configuration. If the host supports digital diagnostics (DDM/DOM), enable monitoring to read real-time parameters via the management interface.

Recommendations

Use certified OM3 or OM4 multimode fiber for SR4 links and an appropriate MTP/MPO patching infrastructure to achieve rated performance. Confirm compatibility with your specific switch, router, or appliance firmware; test the module in your target hardware before wide deployment and use DDM/DOM monitoring where supported to track optical parameters and temperatures.
