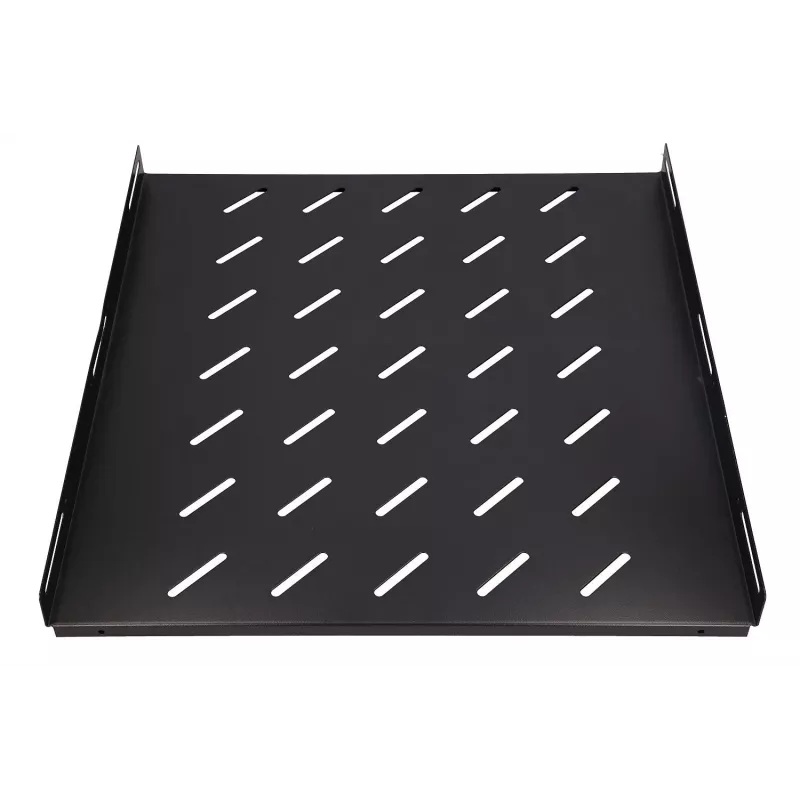

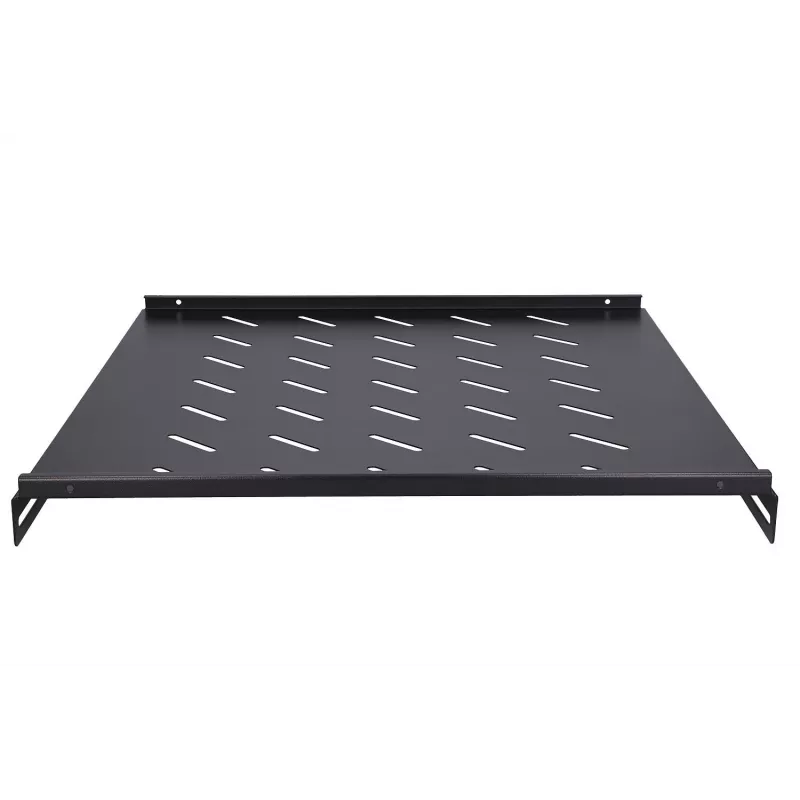

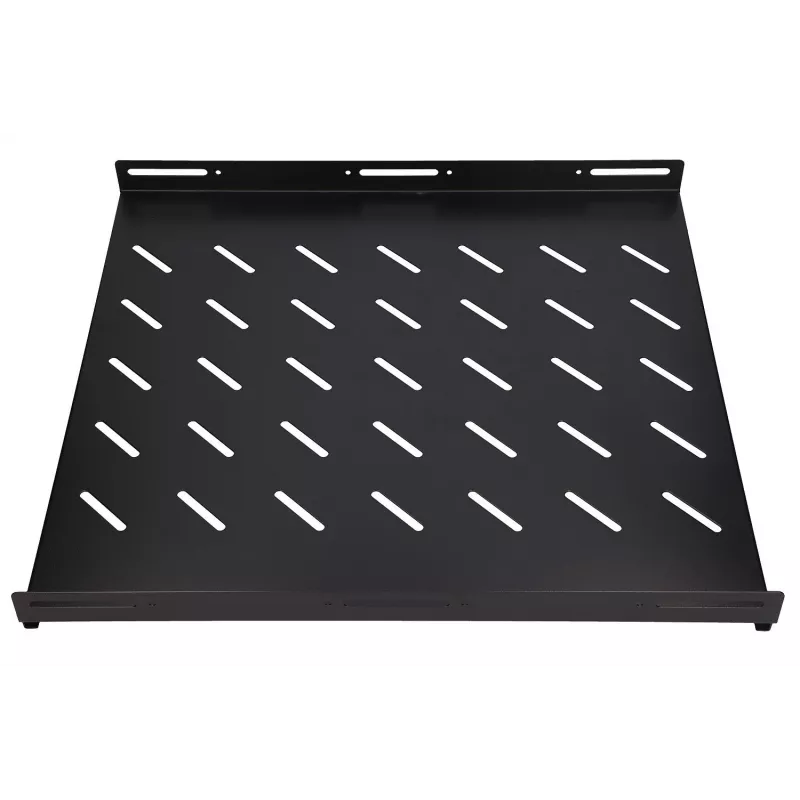

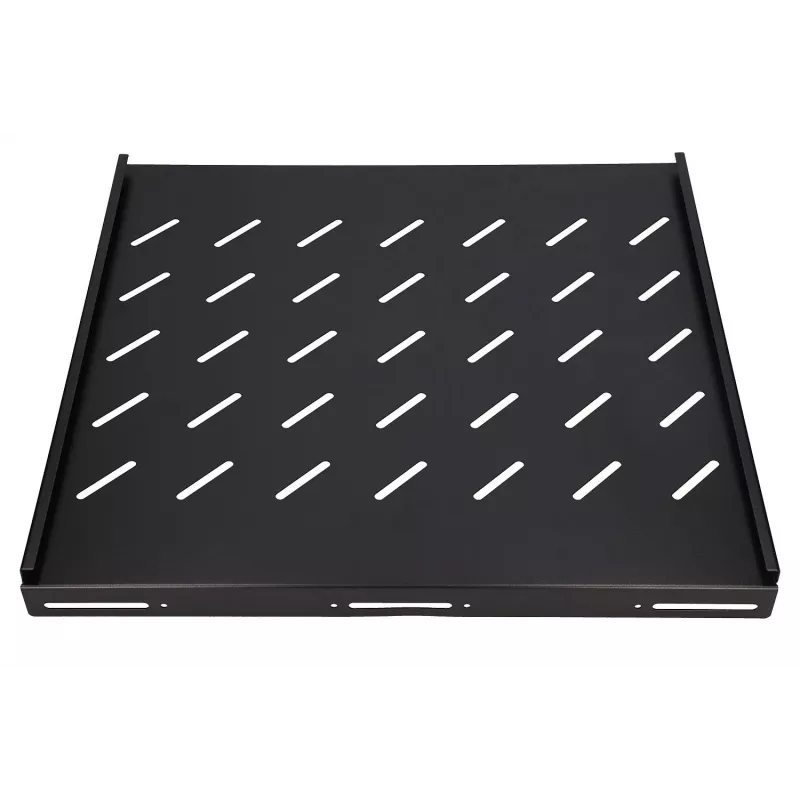

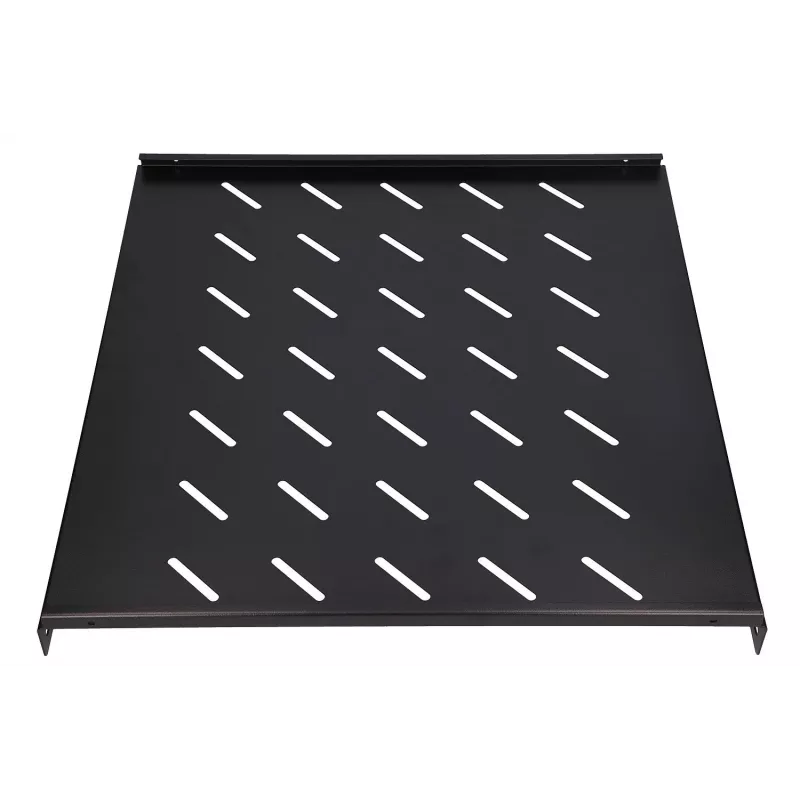

Rack-hylly Extralink FIXED SHELF FOR 800MM DEPTH CABINET 19 tuumaa 500MMX1U MUSTA

Unlike generic shelves that either waste vertical space or fail to align with deep cabinets, the Extralink EX.8635 is a fixed 1U shelf engineered specifically for 800 mm depth 19" racks. Its 500 mm depth leaves clearance for cable routing at the rear while providing a stable platform for equipment that lacks its own rack ears. The black powder-coated steel construction blends into any server room, and the 20 kg load capacity handles everything from small switches to UPS units.

Highlights

• 1U height saves rack space for active components
• 500 mm depth matches 800 mm cabinets without blocking rear airflow
• Solid SPCC steel with 1.2 mm thickness and powder coating for durability
• 4-point mounting with included screws and cage nuts for secure installation
• Black RAL 9005 finish resists scratches and matches standard equipment

In daily use

Install the shelf at any U position using the included cage nuts and screws. Place non-rack-mountable devices such as modems, small UPS units, or KVM switches on it. The solid surface also supports cable management trays or spare power supplies. The 20 kg capacity is sufficient for most accessories, but always distribute weight evenly and verify the cabinet's total load rating. After initial installation, re-tighten screws after the first week to compensate for settling.

Full specifications

• Type: Fixed rack shelf
• Rack capacity: 1U
• Rack width: 19"
• Compatible cabinet depth: 800 mm
• Shelf depth: 500 mm
• Material: SPCC cold rolled steel, 1.2 mm thick
• Colour: Black (RAL 9005)
• Surface finish: Powder coated
• Maximum weight capacity: 20 kg
• Ventilation: Solid (non-vented)
• Mounting: 4-point, front and rear
• Compliance: EIA-310-D
• Included accessories: Mounting screws and cage nuts

Final note

For integrators and IT staff who need a dependable, no-frills shelf that fits deep cabinets perfectly, the EX.8635 delivers exact dimensions and robust build quality without unnecessary features.
