Rack-kisko Schroff 30225-092

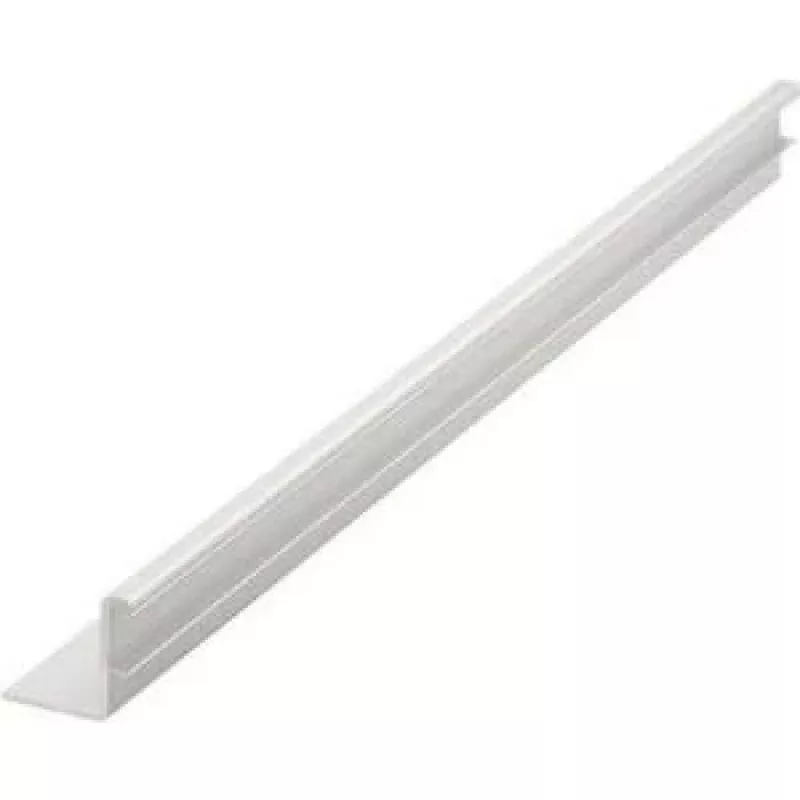

The Schroff 30225-092 rack rail is an aluminium slide rail designed to support 19" subracks and 19" chassis. It provides a 600 mm depth and a lightweight yet robust construction that ensures stable mounting of equipment in racks and server enclosures. Two slide rails are required per subrack or chassis; these rails are not suitable for shielded 19" subracks (special slide rails are available on request).

Advantages

Manufactured from aluminium for a balance of strength and low weight, the Schroff 30225-092 rail offers reliable support for 19" equipment with a specified 600 mm depth. The design enables straightforward installation in standard racks and contributes to organised, accessible equipment mounting. Availability of special versions on request allows compatibility solutions for shielded applications.

Suitable for

• Mounting 19" subracks in server racks
• Supporting 19" chassis in telecommunications cabinets
• Data center and server room rack installations
• Applications requiring 600 mm mounting depth

Key specifications

• Brand: SCHROFF
• MPN: 30225-092
• EAN: 2050000595707
• Material: Aluminium
• Depth: 600 mm
• Compatibility: 19" subracks and 19" chassis (not suitable for shielded 19" subracks)
• Quantity required: 2 rails per subrack or chassis

How to use

Install one rail on each side of the 19" subrack or chassis at the specified mounting depth of 600 mm. Secure rails to the rack or cabinet using appropriate fasteners for your rack system, then mount the subrack or chassis onto the rails. Follow rack manufacturer instructions for alignment and load distribution to ensure safe operation. For shielded 19" subracks, request the special slide rail variant before installation.

Recommendations

Use two rails per device and verify the compatibility of rail mounting points with your rack and equipment dimensions. If your subrack is shielded, contact the supplier to obtain a compatible special slide rail variant.
