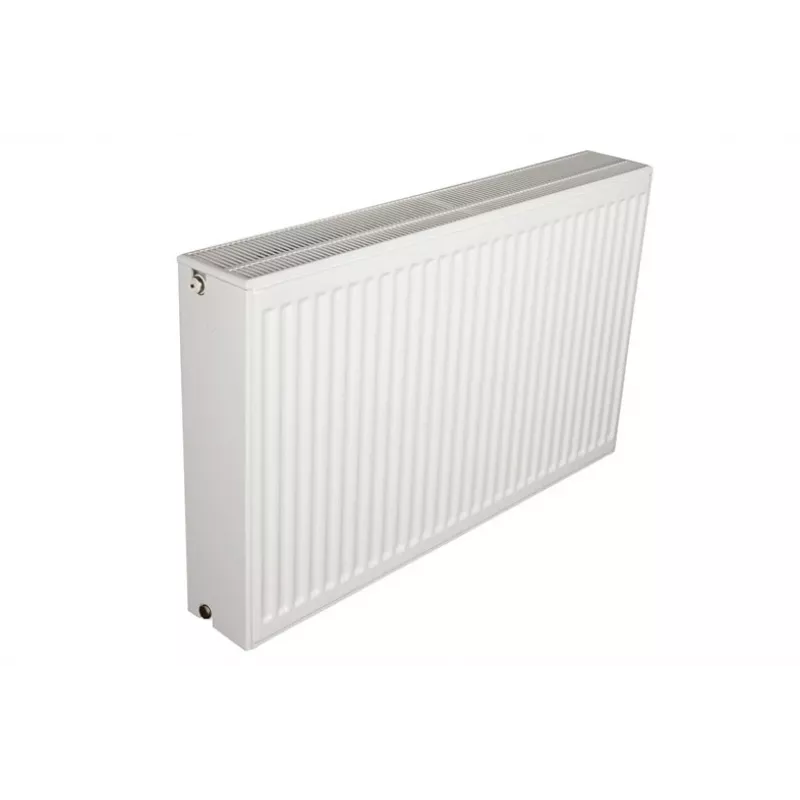

RADIATOR 33PKKPKP 500X1000 STANDART

This high-quality panel radiator from the STANDART series offers efficient and reliable heating for residential and commercial spaces. With a Type 33 triple panel, triple convector configuration, it delivers exceptional heat output while maintaining a sleek, modern appearance.

Advantages

Engineered for maximum thermal efficiency, this radiator ensures rapid and even heat distribution. The durable cold-rolled steel construction with RAL 9016 Traffic White powder coating provides long-lasting performance and a clean, timeless look. The included wall brackets, blanking plug, and air vent plug simplify installation.

Suitable for

• Central heating systems in homes, offices, and public buildings
• Rooms requiring high heat output (up to 2950W at ΔT50)
• Wall-mounted installations with standard 1/2" BSP connections

Key specifications

• Type: Panel Radiator, Type 33 (Triple Panel, Triple Convector)
• Dimensions: Height 500 mm, Length 1000 mm, Depth 155 mm
• Heat Output: 2950 W (10066 BTU/hr) at ΔT50
• Connections: 4 x 1/2" BSP side connections
• Max Operating Pressure: 10 Bar (1000 kPa)
• Max Operating Temperature: 110°C
• Water Content: 9.5 Litres
• Material: High-grade Cold Rolled Steel, RAL 9016 Traffic White
• Manufacturing Standard: EN 442
• Warranty: 10 Years

Recommendations

For optimal performance, ensure proper sizing based on room heat loss calculations. Professional installation is recommended to comply with local regulations and guarantee safety.
